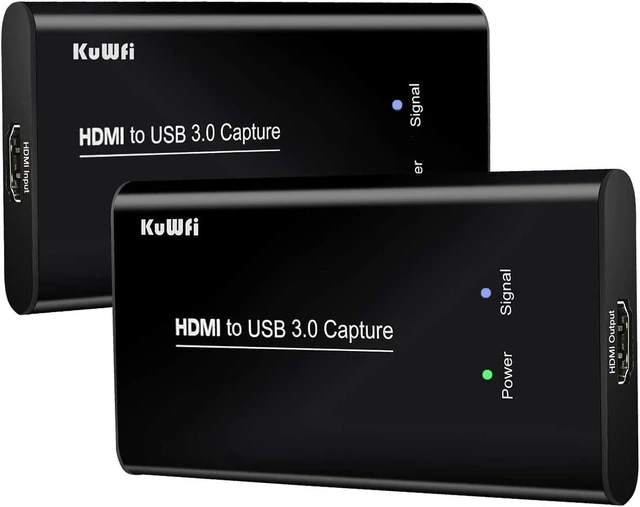

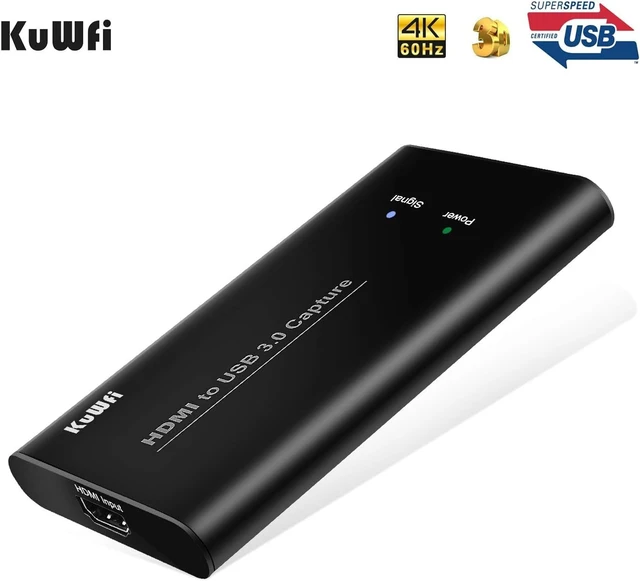

KuWFi HDMI to USB3.0 Video Capture Card

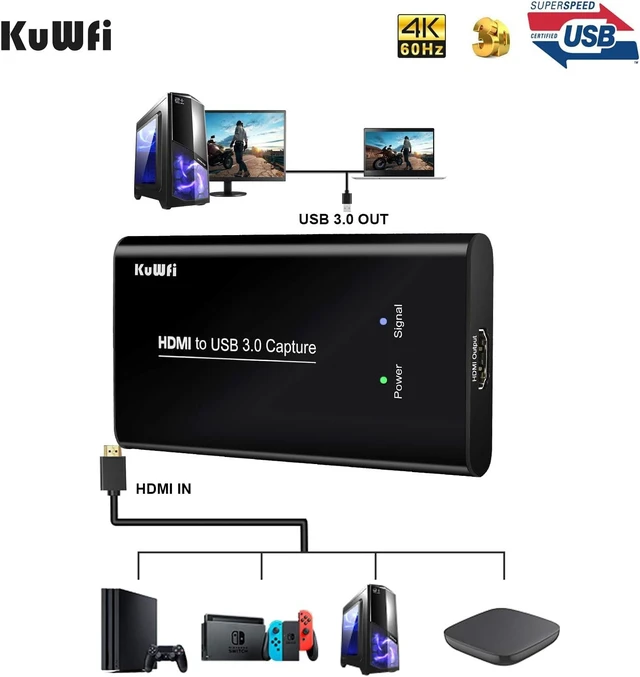

Connection:
Input interface: 1 HDMI interface
Output interface: USB3.0, *237MB/s throughput MAX
HDMI input: 1080P/60, 59.94, 50, 30, 29.97, 25, 24, 23.98, 1080i 50/60, 720P 50/60, 480P, 576P,1280x1024, 1280x960, 1024x768, 800x600, 640x480
HDMI audio input: 1 LPCM audio signal
HDMI input formats: It meets the HDMI 1.4a standard, and supports 1080p/60Hz 8-bit, (RGB, YUV)
Output Formats Resolutions: 640x480/720x480/720x576/800x600/1024x768/ 1280x720/1280x960/1280x1024/1366x768/1360x768/1440x900/1400x900/1680x1050/1920x1080
- Frame rate: 25/29.97/30/50/59.94/60 fps
- Video Sampling Rate HDMI: 165MHz
- Audio and video capture : It meets the standards of UVC (USB video class) and UAC(USB audio class)
- Output color space: YUV, RGB
- Video Process: color space switch, Hardware Color Space Switch
- Image Scale : Hardware scale
- Support: Windows 7,Windows8,Windows8.1,Windows10 or later, Linux OS, Mac OS
Software compatibility:
Adobe Flash Media Live Encoder (Windows, OS X) Real Producer Plus (Windows) VLC (Windows, OS X, Linux) QuickTime Broadcaster (OS X) QuickTime Player (OS X)and etc.
Development interface compatibility:
DirectShow (Windows), DirectSound (Windows), V4L2 (Linux), ALSA (Linux) OS X (QuickTime)
Upgrade The firmware can be upgraded

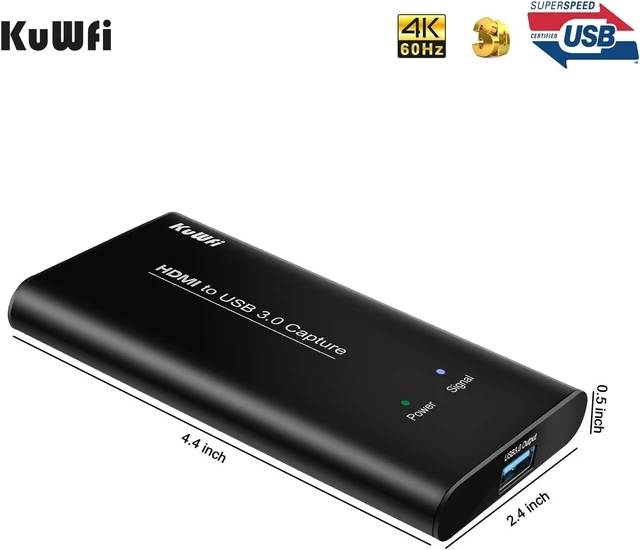

Size: 113X61X13mm
Power consumption: =2.5W
High Definition Display
Full HD 1080P video capture, 60Fps video recording and live broadcast
High-intensity reproduction of video delicate colors, clear, vivid picture quality
Working Environment
Working Temperature: 0-70 ?
Storage Temperature: -20-120 ?
Storage Humidity: 5%-90%
Application
It can be used for video conference, game collection, multimedia teaching scenario, etc

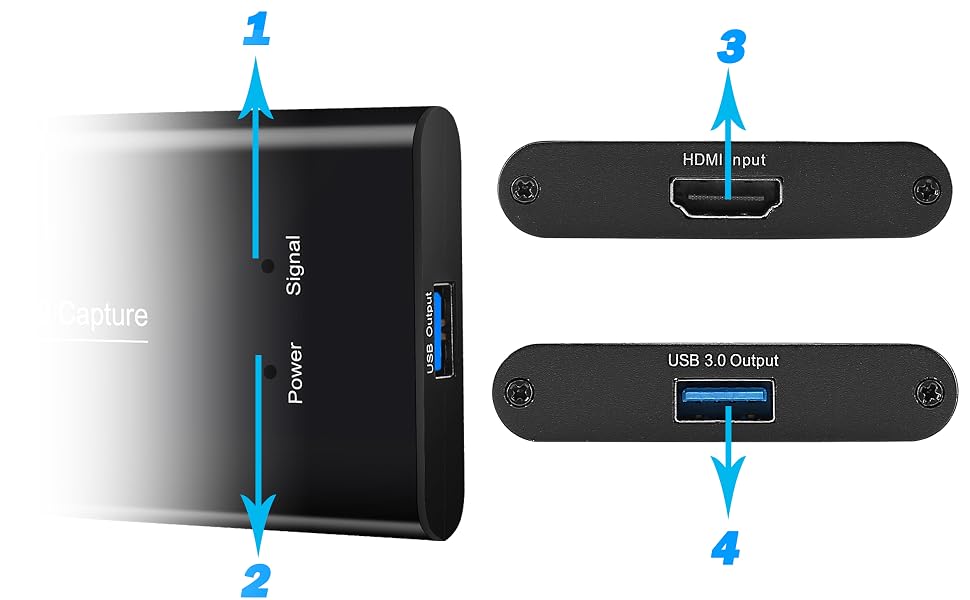

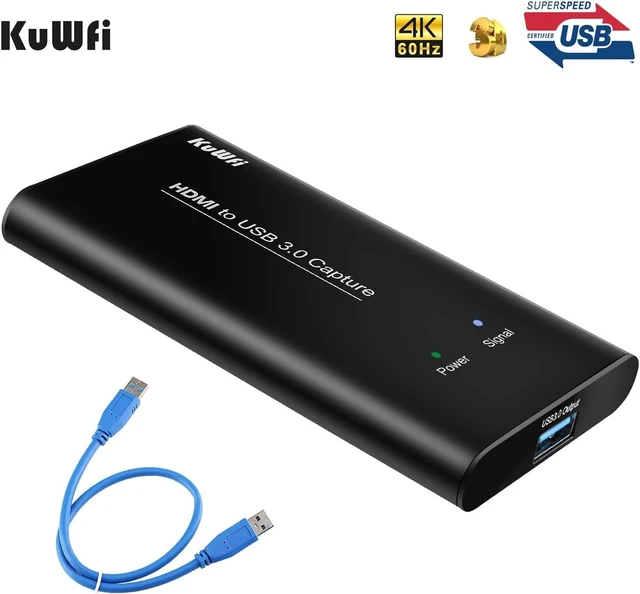

1. Signal Indicator: This LED illuminates when the device capture the video normally
2. Power Indicator: This LED illuminates when the device is connected to computer USB port

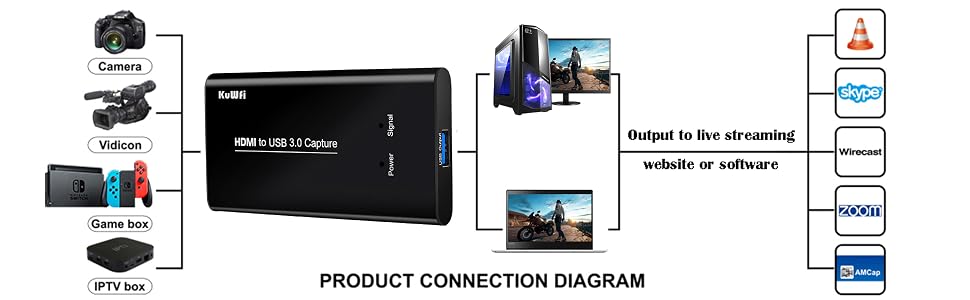

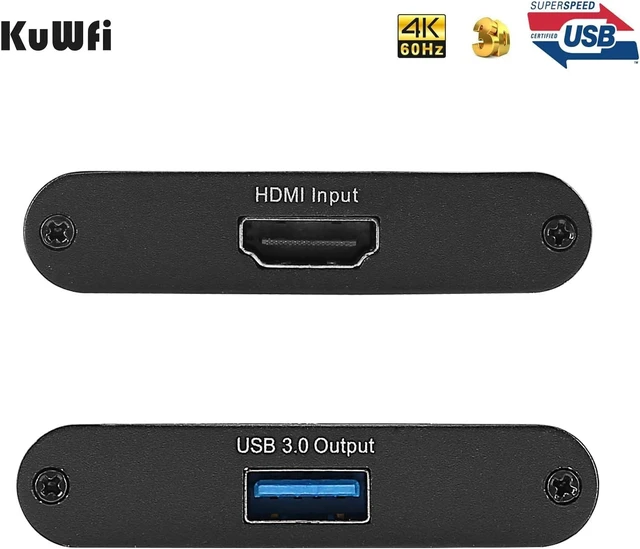

3. HDMI Input: This slot is where you connect the HDMI source output from Camera, Vidicon.Game box. IPTV box.and so on
4. USB3.0 Output: This slot is where you connect to the USB3.0 input of the computer or Note Book
 KuWFi HD Video Capture Device |  KuWFi HD 4K Video Capture Device |  KuWFi HD Video Capture Device |  KuWFi HD Video Capture Device | |
|---|---|---|---|---|
| Customer Reviews | — | — | — | — |
| Price | — | — no data | — no data | — no data |
| Input | HDMI | HDMI | HDMI | HDMI |
| Input Max Res. | 4K/30Hz | 4K/60Hz | 1080P/60Hz | 4K/30Hz |
| Output | USB3.0 | USB3.0/HDMI Out | USB3.0/HDMI Out | USB3.0/HDMI Out |
| Recording Res. | 1080P/60Hz | 1080P/60Hz | 1080P/60Hz | 1080P/60Hz |
| Output Max Res. | no data | 4K/60Hz | 1080P/60Hz | 1080P/60Hz |
| Mic | no data | ? | ? | ? |
| Power In | no data | no data | ? | ? |
| Line Out | no data | no data | no data | ? |
| Color | Black | Black | Black | Black |
