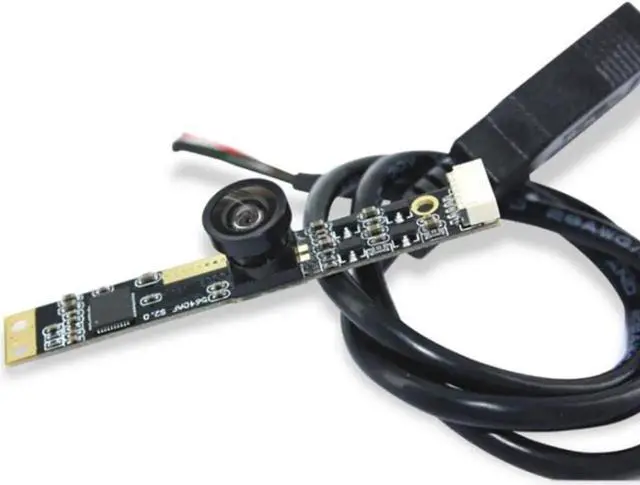

5MP OV5640 USB Camera Module Fixed Focus with 160 Degree Wide Angle Lens

Certification: NONE

Origin: CN (Origin)

Compatible Camera Style: Camcorders

Style: Mini Camera

Type: IP Camera

Connectivity: USB

Color: Black

Megapixels: 5MP

Module Size: 60mm x 8.5 mm x 12.8 mm

Temperature (Operation): -20°C to 70°C

Temperature (Stable Image): 0°C to 50°C

Assembly technique: SMT (ROSH)

Focus: Fixed

Object distance: 30CM-200CM

Resolution: 600LW/PH (Center)

interface: USB 2.0

Power: USB bus power

Power consumption: 150mW (VGA); 200 mW (QSXGA);

Operating system request: Windows 2000/ Windows XP/Windows 7

Sensor Type: OV5640 (1/4inch)

Active Array Size: 2592*1944

Pixel Size: 1.4 µm x 1.4 µm

Maximum Image Transfer Rate: 15 fps for QSXGA;

Lens Type

Lens Construction: 4G1P+IR

F/No: 2.4

EFL: 1.6 mm

BFL (Optical): 2.5 mm

FOV: 160°

TV Distortion: less than -35%

Relative Illumination (Sensor): 70%

IR Filter: 650 +/- 10nm

DSP Type

AGC/AEC/Whiter balance: Auto

Output Formats: USB suspend out

Fixed Pattern Noise: less than 0.03 % of VPEAK-TO-PEAK

Package: LQFN-40pin

Colour: black

Material: plastic

Package Contents:

1 x camera module

1 x USB cable

Only the above package content, other products are not included.

Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
