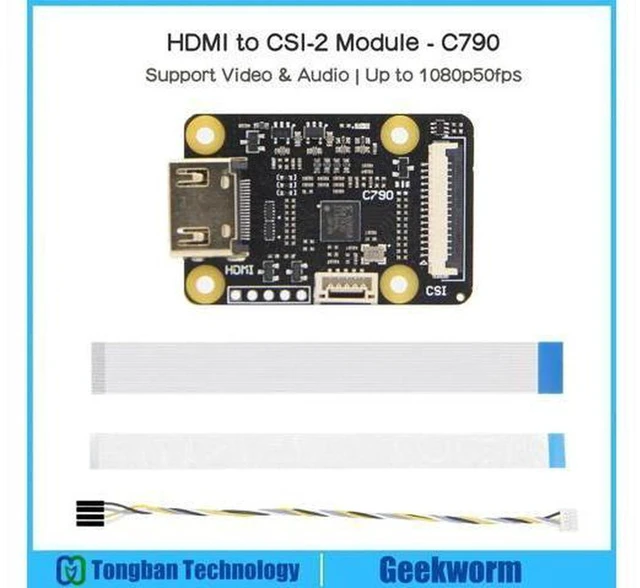

AJMRTC C790 HDMI to CSI-2 Adapter Module, 1080P@60fps Video & I2S Audio Capture Bridge, TC358743 Chip Compatible with Raspberry Pi 5, 4B, 3B+, Zero, CM4 for PiKVM Video Acquisition Project
- - Powered by Toshiba TC358743XBG bridge chip, converts HDMI input to MIPI CSI-2 + I2S audio
- - Max 1080P@60fps (CM4); Pi4 / Pi Zero limited to 1080P@50fps by 2-lane CSI

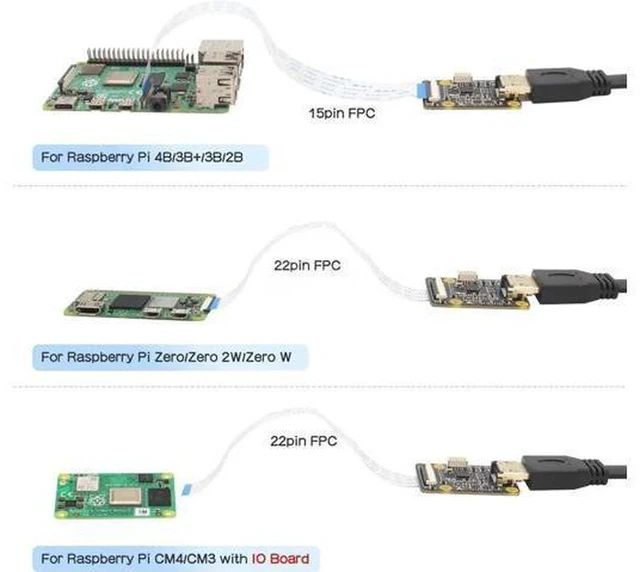

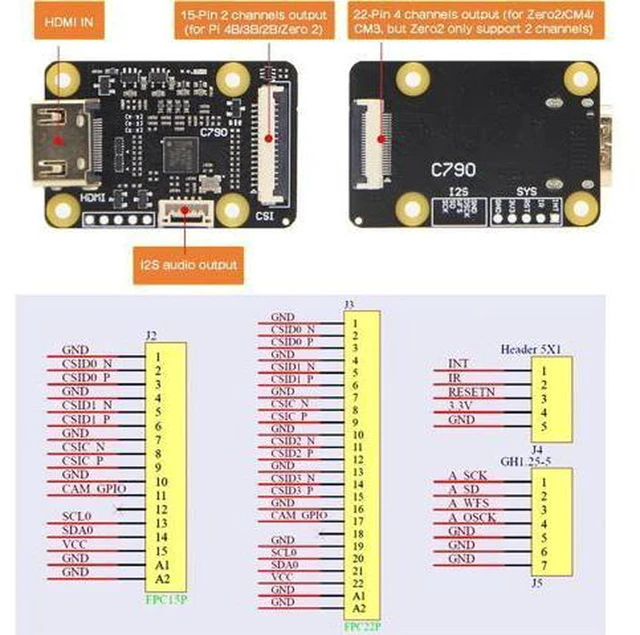

- - Dual CSI FPC sockets: 15pin 1.0mm pitch and 22pin 0.5mm pitch for different Pi models
- - Mitigates HDMI back-power protection, stable 3.3V powered design for 24h continuous capture
- - Works like standard Pi camera, ideal for PiKVM, video grabber, streaming and embedded vision build
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now

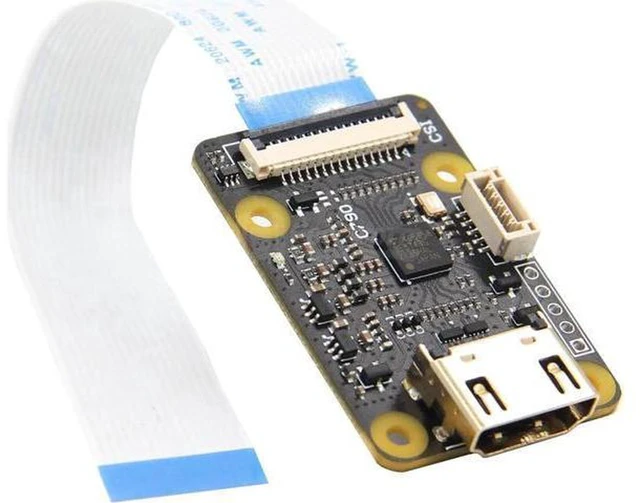

AJMRTC C790 HDMI to CSI-2 capture board turns HDMI video and audio into MIPI CSI-2 signal for Raspberry Pi CSI camera port. It extracts audio via I2S output. CM4 can achieve full 1080P 60fps, while Pi 4 and Zero only reach 1080P 50fps due to lane limitation. It is widely used for PiKVM, screen capture, media streaming and embedded video projects. It needs driver installation on Raspberry Pi OS. HDMI source is not included.
Specifications
- Brand: AJMRTC
- Model: C790
- Chipset: TC358743XBG
- Input: HDMI Female

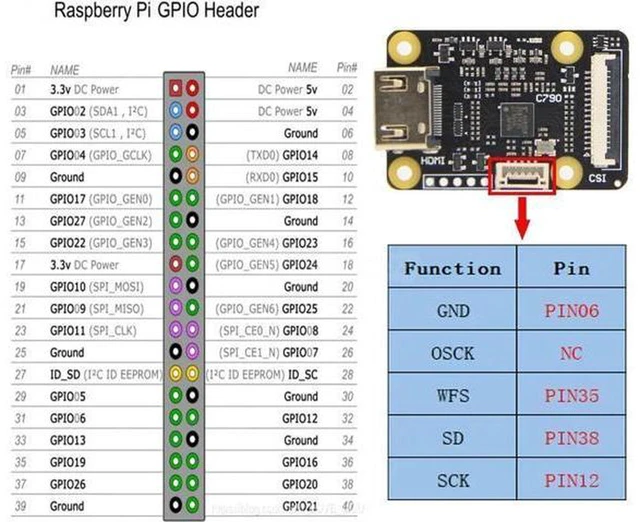

- Output: MIPI CSI-2 + I2S Audio
- Max Resolution: 1080P@60fps (CM4 only)
- CSI Connectors: 15pin 1.0mm FPC, 22pin 0.5mm FPC
- Power: DC 3.3V
- Supported Boards: Raspberry Pi 5, 4B, 3B+, 3B, Zero, Zero 2W, CM4
- Application: PiKVM, Video Capture, Media Streaming, Embedded Vision
- Package: 1 x C790 HDMI to CSI-2 Module
- Note: Frame rate limited by Raspberry Pi CSI lane count; driver required before use
