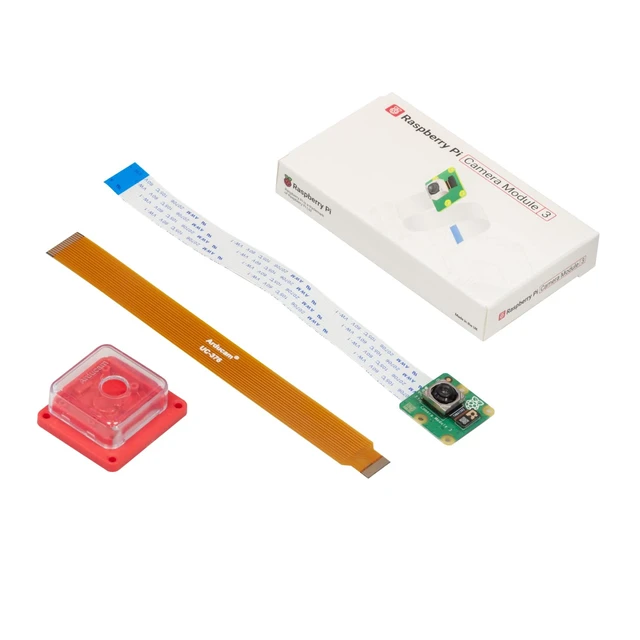

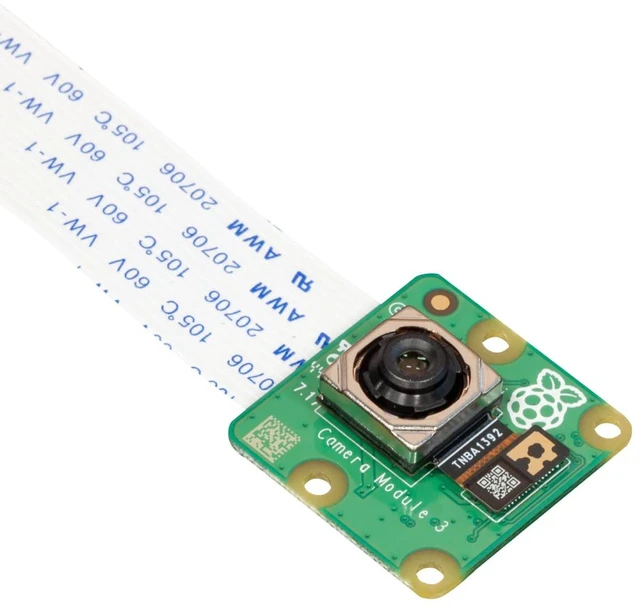

Arducam for Raspberry Pi Camera Module 3, 12MP IMX708 75°(D) Autofocus Pi Camera V3 with Acrylic Case, 15-22pin FFC Cable

Description:

Pi Camera Module 3 is a high-quality camera that is compatible with Raspberry Pi all boards. It features a 12-megapixel IMX708 sensor with HDR, providing excellent image quality.

The autofocus is achieved through a combination of PDAF and CDAF, ensuring clear and crisp images. And it's fully supported by the libcamera & Picamera2, but no longer works with legacy OS such as raspivid and raspistill.

With a minimum focus distance of 5cm and 10cm, it is suitable for a wide range of applications, including close-up shots.

Highlight:

Based on the 12MP IMX708 CMOS sensor.

IMX708 is a rolling shutter sensor, which means all V3 cameras have rolling shutters.

All V3 cameras have autofocus.

The autofocus is achieved by a mixture of PDAF and CDAF.

They have a 5cm MOD (minimum focus distance) for both Standard and NoIR, and 10cm for Wide & NoIR Wide.

4608 x 2592 is the highest resolution you can get for still images, 1080p50 max for video.

All cameras support capturing in HDR (up to 3 megapixel output).

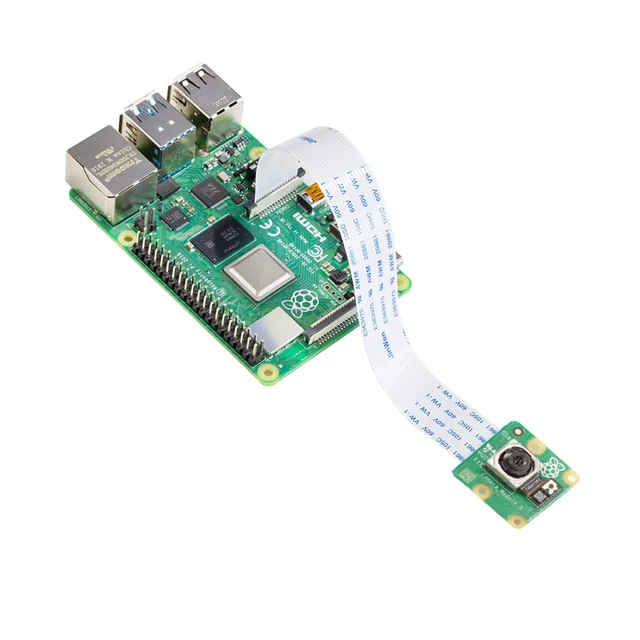

All 4 cameras have the same board size as V1.3 and V2 cameras.

Except for Raspberry Pi 400.

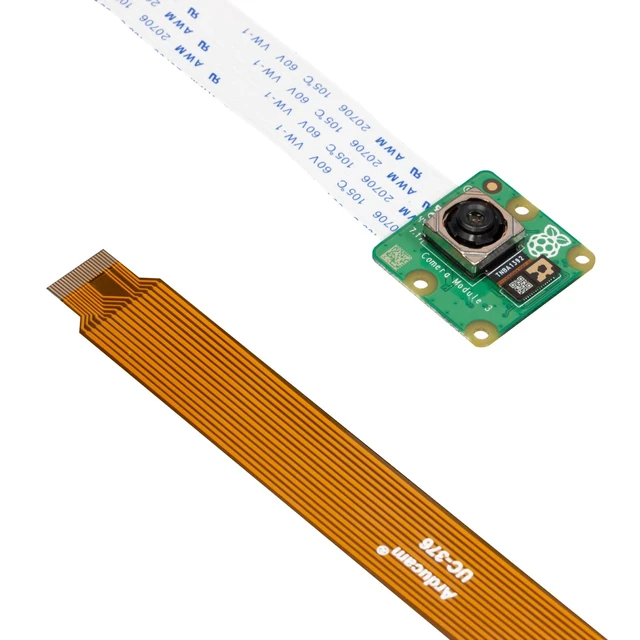

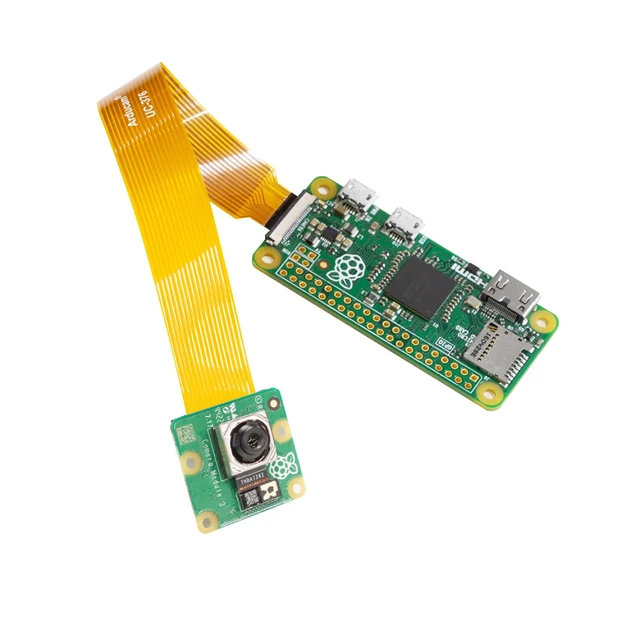

To use the V3 cameras with Pi zero models, you need additional camera cables.

All compatible with both libcamera & Picamera2, but they no longer work with legacy software (raspivid, raspistill, etc.).

Specification:

Sensor: IMX708

Resolution: 11.9 megapixels

Sensor size: 7.4mm sensor diagonal

Pixel size: 1.4m × 1.4m

Horizontal/vertical: 4608 × 2592 pixels

Diagonal field of view: 75 degrees Common video modes: 1080p50, 720p100, 480p120

Output: RAW10

IR cut filter: Integrated

Dimensions: 25 × 24 × 11.5mm
