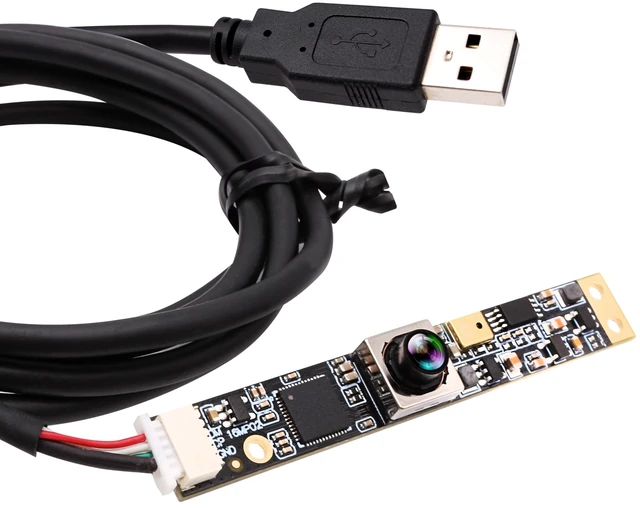

IFWATER 16MP 5K Autofocus USB Camera Module, Built-in Microphone,97° HFOV Distortion-Free AF Lens, Plug and Play for Industrial PC, Lightburn, Windows, Linux, Jetson Nano, OpenCV

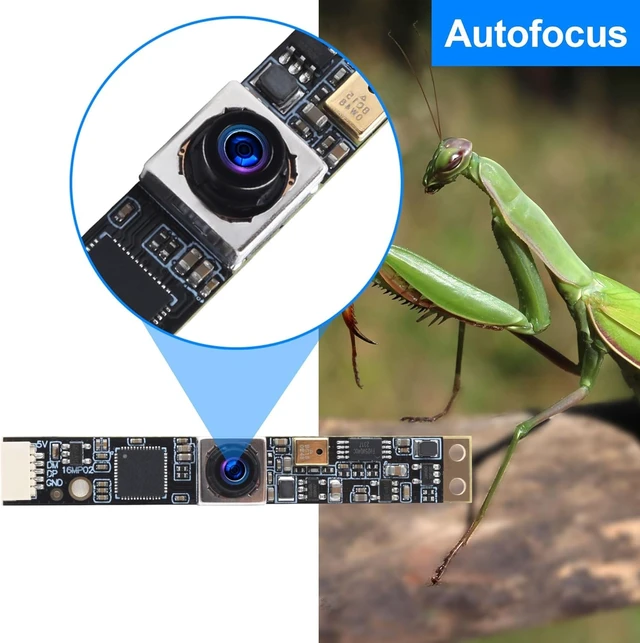

- Autofocus 100 Degree Lens: 16MP autofocus usb camera module with 100 degree no distortion lens, 4656 x 3496 MJPEG@10fps YUY2@1fps, ultra hd 4k usb camera module 30fps high speed camera can capture most exciting details at every 30fps/15fps, HFOV: 97°(H)

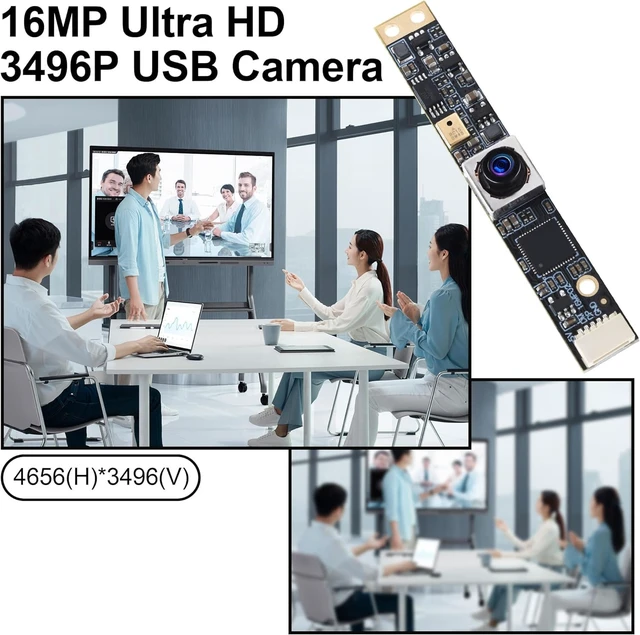

- 16 Megapixel usb camera with microphone, high definition 4656x3496 resolution, 4k usb camera module with 1/2.8 inch IMX 298 color CMOS sensor is able to ensure your videos are always sharp and crystal clear.
- MJPEG/YUYV: Picture format MJPEG or YUY2 optional, cameras with high resolution can be used in any video system and applications for industrial.

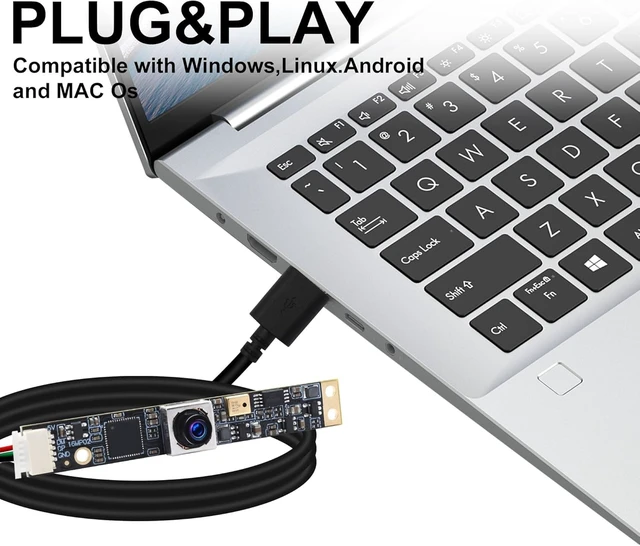

- USB2.0 Plug and Play: 16 Megapixels usb camera supported plug the usb cable into your PCs USB port, and running the software can capture high-level video and continuous recording, no driver is needed.
- Super Mini Sized: 3496p usb camera module mini size, lightweight and compact size is perfect for embedded applications and ideal for Video systems, 3D scanners, VR cameras, electronic microscopes and medical machines.
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Product Features:
Model: IF-USB16MP02-AF100 (FOV 97 Degree)
Name: 16 Megapixel High Resolution HD Autofocus USB Camera
Sensor IMX298
Sensor Size 1/2.8inch
Pixel Size1.12um x 1.12um
Image Area 6.4mm x 5.3mm
Max. Resolution4656(H) X 3496(V) 16 Megapixel
Compression Format MJPEG / YUY2 (YUYV)
Resolution & Frame Rate:
4656 x 3496 MJPEG@10fps YUY2@1fps 4208 x 3120MJPEG @10fps
4160 x 3120 MJPEG@10fps 4000 x 3000MJPEG @10fps
3264 x 2448MJPEG @10fps YUY2@1fps 2592 x 1944 MJPEG@10fps YUY2@1fps
2320 x 1744MJPEG @30fps YUY2@1fps 2048 x 1536 MJPEG@30fps YUY2@1fps
1920 x 1080MJPEG @30fps YUY2@5fps 1600 x 1200 MJPEG@30fps YUY2@5fps
1280 x 960MJPEG @30fps YUY2@10fps 1280 x 720 MJPEG@30fps YUY2@10fps
1024 x 768MJPEG @30fps YUY2@10fps 800 x 600 MJPEG@30fps YUY2@15fps
640 x 480MJPEG @30fps
Min Illumination 0.5 Lux
Shutter Type Electronic Rolling Shutter / Frame Exposure
Connecting Port Type USB2.0 High Speed
Free Drive Protocol USB Video Class (UVC)
AEC Support
AWB|Support
AGC Support
Adjustable Parameters
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White Balance, Backlight Contrast, Exposure
Lens ParameterAF LENS HFOV: about 97 Degree
Power SupplyUSB BUS POWER 4P-2.0mm Socket
Operating Voltage DC5V
Working Current150mA~280mA
Working Temperature-10~70
Storage Temperature-20~85
Board Size /Weight62.3x9x7mm / about 20g
CableStandard 1m
Operating System Request
WinXP/Vista/Win7/Win8/Win9/Win10/Win11 etc.
Linux with UVC (above Linux-2.6.26)
MAC-OS X 10.4.8 or later
Android 4.0 or above with UVC
