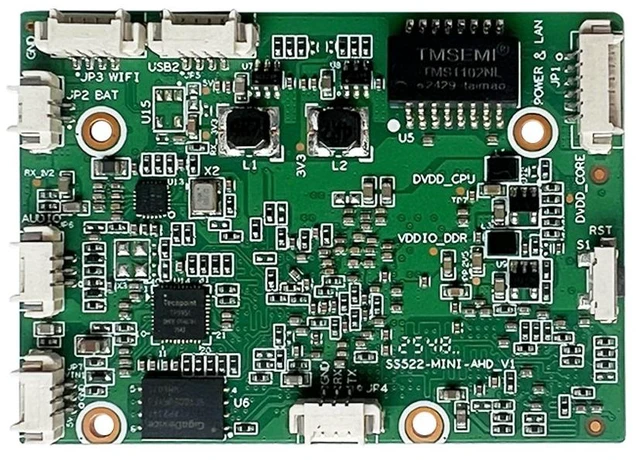

    H.265 1080P Mini Hybrid Encoder & Decoder AHD/USB + Dual IP Stream Decoding w/SD Slot, RTMP & Live Stream

    Be the first to review this product...
    • EXVIST Hybrid 2CH Encoder/Decoder 1080p AHD/CVI/TVI/CVBS/USB/RTSP to IP w/SD Card Slot, RTMP/SRT/RTSP/ONV, Image Fusion for NVR System & CCTV Surveillance.

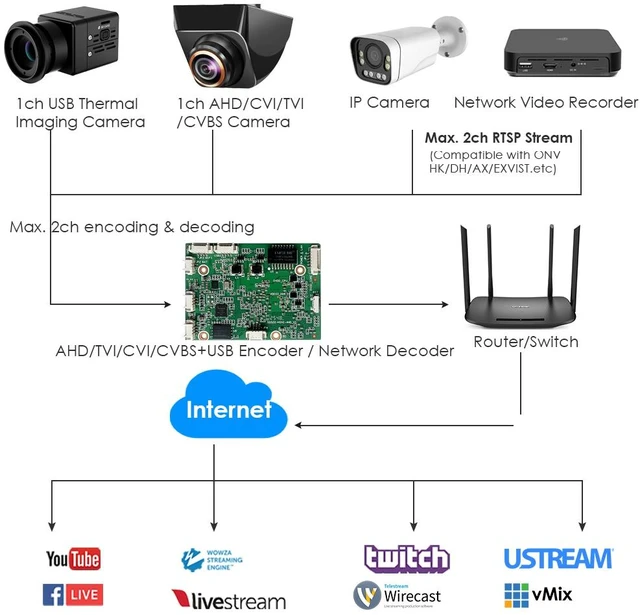

    • 2-in-1 Hybrid Encoding & Decoding This versatile device functions as both an encoder and a decoder. It encodes 1ch analog input (AHD/TVI/CVI/CVBS up to 1080p@60fps) AND 1ch USB 2.0 camera input (ideal for thermal imaging). Simultaneously, it decodes up to 2-channels of 1080p network feeds (RTSP/RTMP/TS) from IP cameras, NVRs, or other encoders bridging analog, USB, and IP worlds seamlessly.

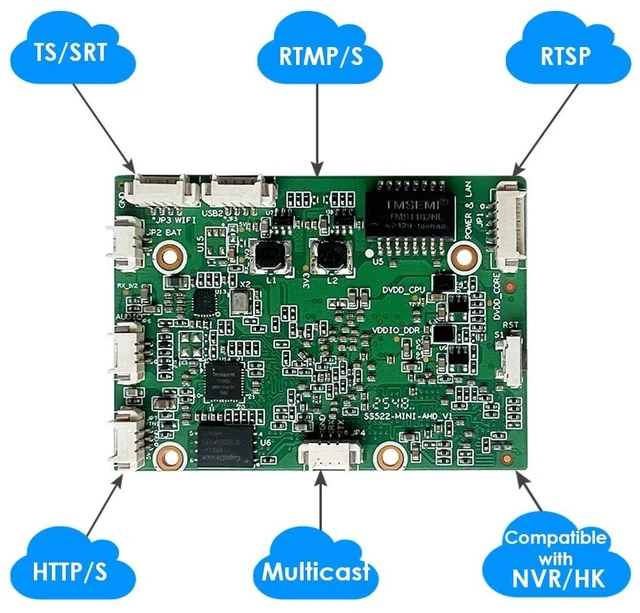

    • Multi-Protocol Supported RTMP directly to YouTube, Twitch, FB Live, Wowza, vMix, and Wirecast. Comprehensive support for RTMP, RTMPS, SRT, RTSP, HLS, TS, UDP, and Multicast. Feed to at least 4 addresses simultaneously.
    • Advanced Image Fusion & Multi-View Output Uniquely supports 1/2-channel image fusion preview and output. This allows you to combine multiple video sources (analog, USB, or IP feeds) into a single composite view perfect for multimedia stitching displays, thermal overlay, or comprehensive surveillance monitoring.
    • Ultra-Low Latency & Full Cross-Browser Control Delivers industry-leading low latency of just 70140ms, essential for live interaction, PTZ control, and video conferencing. Manage everything via an intuitive web UI compatible with browsers add OSD text, custom logos, adjust AAC audio, and upgrade firmware with ease.
    +
    +
    Overview
    Specs
    Reviews

    Any questions? Ask CelesteSM will help you find out quickly.

    Try me now
    ON-UAH-52EM Encoder/DecoderKey Features & Benefits
    1. Hybrid Functionality: Encodes AHD/TVI/CVI/CVBS and USB inputs while decoding up to two 1080p IP video feeds. Supports 1- or 2-channel image fusion for comprehensive multi-view monitoring.
    2. Extensive Protocol Support: Supports RTMP, RTMPS, SRT, RTSP, HLS, TS, UDP, and multicast protocols. Streams to YouTube, Twitch, Facebook Live, Wowza, and other platforms, with up to four streaming destinations.
    3. One-Button Local Recording: Press and hold the reset/record button for one second to start or stop recording to a USB flash drive. Supports MP4 recording on USB drives up to 128GB. Also features a microSD slot for scheduled local storage.
    4. Ultra-Low Latency: Delivers 70140 ms latency, making it suitable for interactive applications such as video conferencing, esports, and PTZ camera control.
    5. Cross-Platform Web Interface: Configure the device through a web browser. Add OSD text, upload custom JPG/PNG logos, adjust AAC audio settings, and upgrade firmware.
    Technical SpecificationsVideo

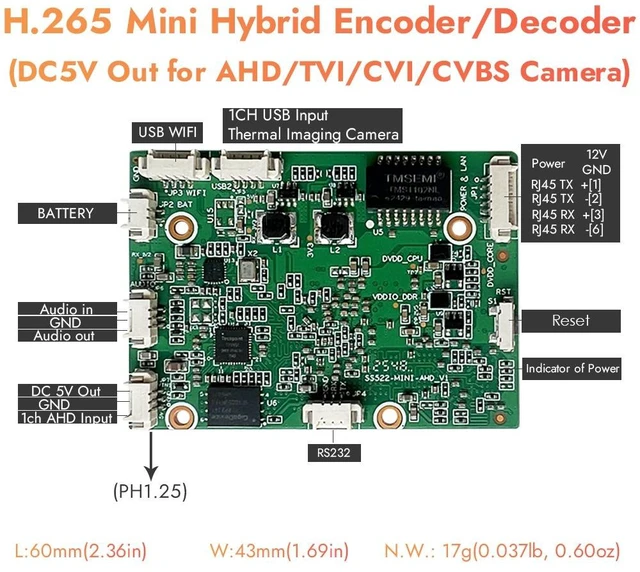

    1. Video Inputs: 1 × AHD/TVI/CVI/CVBS input (3-pin), 1 × USB 2.0 input (4-pin), and up to 2 × network video feeds
    2. Maximum Resolution: 1080p at 60 FPS input; 1080p at 30 FPS encoding
    3. Video Codecs: H.265/H.264
    4. Image Fusion: Supports 1- or 2-channel image fusion
    Audio
    1. Audio Interface: 3.5 mm TRRS line input/output
    2. Audio Codecs: AAC/G.711
    Storage
    1. MicroSD Slot: Supports cards up to 128GB
    2. USB Recording: Supports MP4 recording to a USB flash drive up to 128GB
    3. Recording Control: One-button start/stop recording
    General Specifications
    1. Power Supply: DC 12V, 1A
    2. Power Consumption: 3W
    3. Dimensions: 60 × 43 × 25 mm (2.36 × 1.69 × 0.98 inches)
    4. Net Weight: 17 g (0.60 oz)
    5. Operating Temperature: 10°C to 55°C (14°F to 131°F)
    6. Configuration: Browser-based web interface
    7. Logo Overlay: Supports custom JPG/PNG logos and OSD text
    Applications
    1. Digital signage
    2. Video conferencing
    3. CCTV surveillance
    4. Remote teaching and campus broadcasting
    5. Telemedicine
    6. Multimedia stitching displays
    7. Interactive live streaming and remote camera control
    Package Includes
    1. 1 × ON-UAH-52EM Encoder/Decoder
    2. 1 × Quick Start Guide
