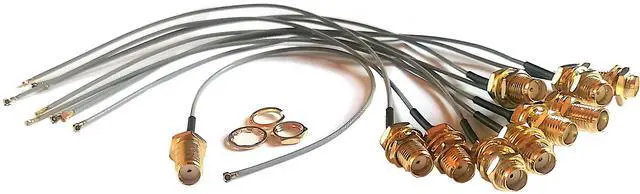

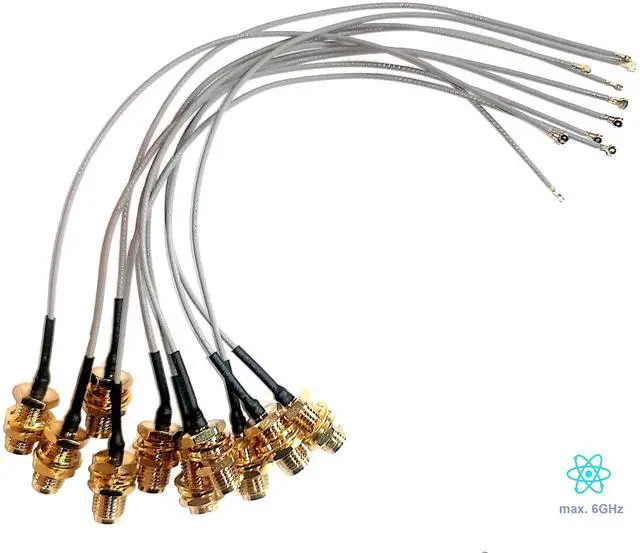

10pcs SMA-K(Female) to IPEX4 pigtail coaxial adapter 15cm 50Ohm max. 6GHz application e.g. Wireless Card/Module Intel 20x series
- Low Loss: Ensures minimal signal attenuation, with a cable loss of 9.4 dB/1m at 6000 MHz.
- High Frequency: Supports a wide frequency range, from DC to 6 GHz for coaxial and I.PX4 connections, and up to 18 GHz for SMA connectors.
- Small Bending Radius: With a bending radius of just 5 mm, the cable is highly flexible and suitable for tight spaces.
- Wide Operating Temperature: Designed to perform reliably across a broad temperature range.
- Anti-Corrosion: Gold-plated connectors and high-quality materials provide excellent resistance to corrosion.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Model: H2_IPX4_10

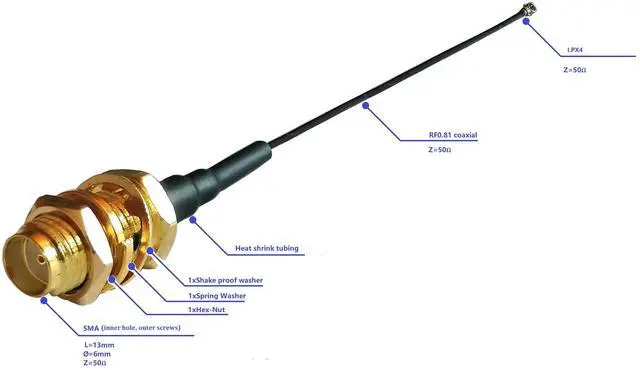

Connectors:
SMA-K (Female)

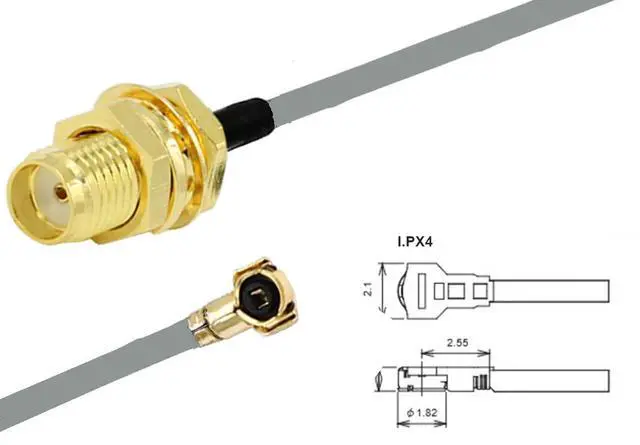

I. PX4
Impedance: 50
Frequency Range:
Coaxial: DC ~ 6 GHz
SMA: DC ~ 18 GHz
I.
PX4: DC ~ 6 GHz
I.
PX Type: I. PX4
Coaxial Cable: RF 1.13 (AWG32)
Coating: Gold-plated (SMA & I. PX4 connectors)
Cable Jacket: FEP (Fluorinated Ethylene Propylene)
Cable Bending Radius: 5 mm
Cable Loss: 9.4 dB/1m @ 6000 MHz
Cable Capacitance: 98 pF/m
Tensile Strength: 1.76 kgf/mm²
Cable Length: 10 cm
Cable Color: Gray or Black
Connectors:
SMA-K (Female)
I. PX4
Impedance: 50
Frequency Range:
Coaxial: DC ~ 6 GHz
SMA: DC ~ 18 GHz
I.
PX4: DC ~ 6 GHz
I.
PX Type: I. PX4
Coaxial Cable: RF 1.13 (AWG32)
Coating: Gold-plated (SMA & I. PX4 connectors)
Cable Jacket: FEP (Fluorinated Ethylene Propylene)
Cable Bending Radius: 5 mm
Cable Loss: 9.4 dB/1m @ 6000 MHz
Cable Capacitance: 98 pF/m
Tensile Strength: 1.76 kgf/mm²
Cable Length: 10 cm
Cable Color: Gray or Black
