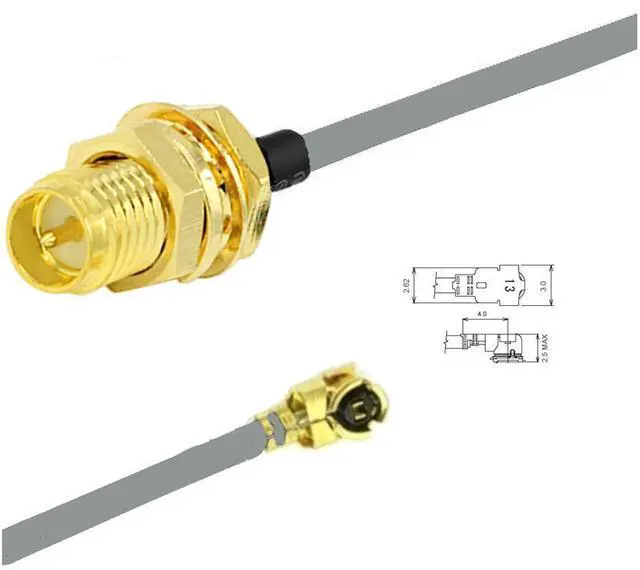

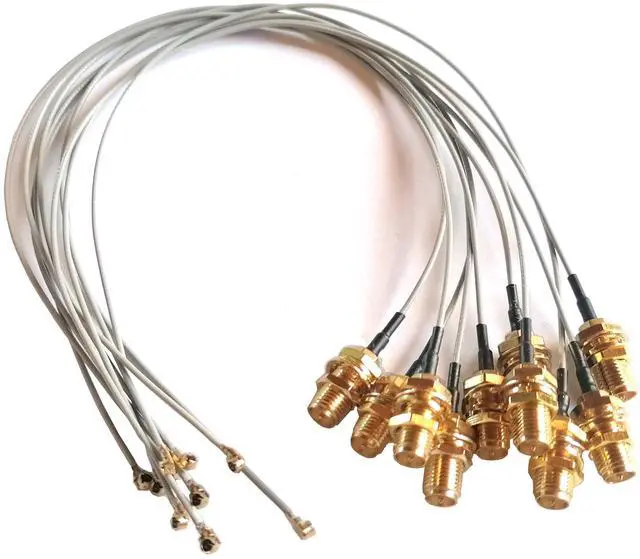

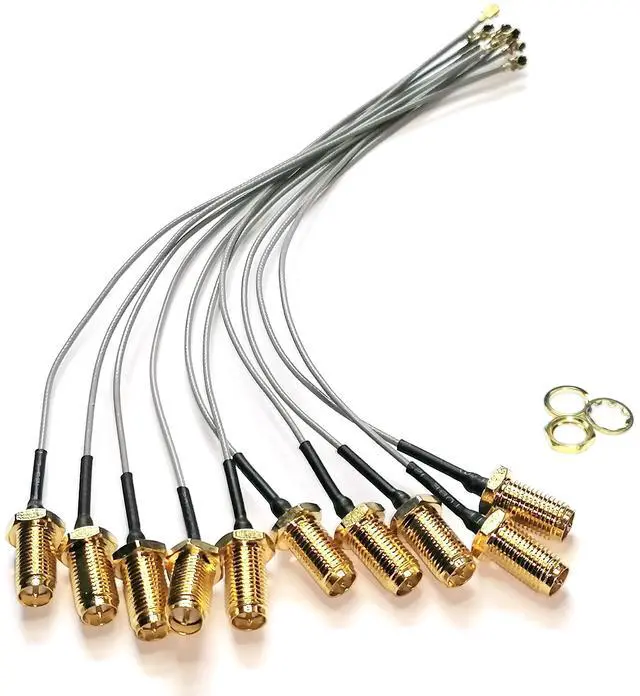

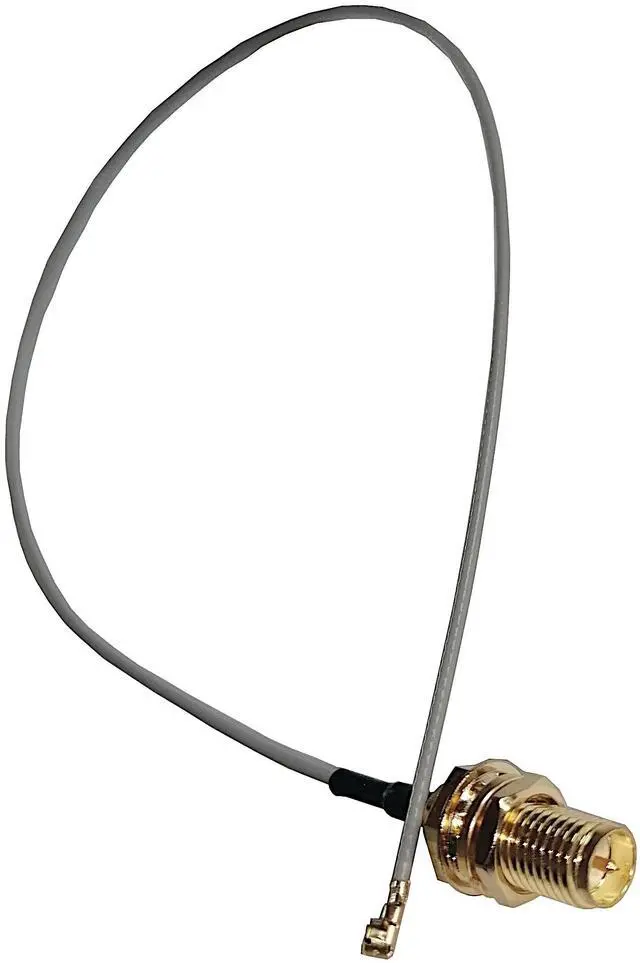

H-2 Technik 10pcs 20cm RF Coaxial Cable Assembly RP-SMA to U.FL 50Ohm max. 6.0GHz application e.g. Wireless card/module
- Low Signal Loss Optimized for high-frequency transmission with minimal attenuation.
- High-Frequency Performance Supports up to 6 GHz (coaxial/U.FL) and 18 GHz (SMA).
- Ultra-Flexible Design 5mm bending radius for tight installations.
- Wide Operating Temperature Reliable performance in extreme conditions.
- Anti-Corrosion Coating Brass gold-plated connectors for durability.
- Lightweight & Durable FEP-jacketed cable with high tensile strength (1.76 kgf/mm²).
- Compact & Versatile Ideal for space-constrained applications.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Model: H2_R_IPX_20
Impedance: 50
Frequency Range Coaxial: DC ~ 6 GHz
Frequency Range SMA Connector: DC ~ 18 GHz
Frequency Range U. FL (IPX)
Connector: DC ~ 6 GHz
Coaxial Type: RF 1.13 (AWG32)
Connector Coating: Brass gold-plated (SMA & U. FL)
IPX Type: U. FL
Coaxial Jacket: FEP (Flexible, heat-resistant)
Coaxial Bending Radius; 5 mm
Coaxial Loss: 9.4 dB/m @ 6000 MHz
Coaxial Capacitance: 98 pF/m
Coaxial Tensile Strength: 1.76 kgf/mm²
Coaxial Length: 20 cm
Coaxial Color: Gray / Black (optional)

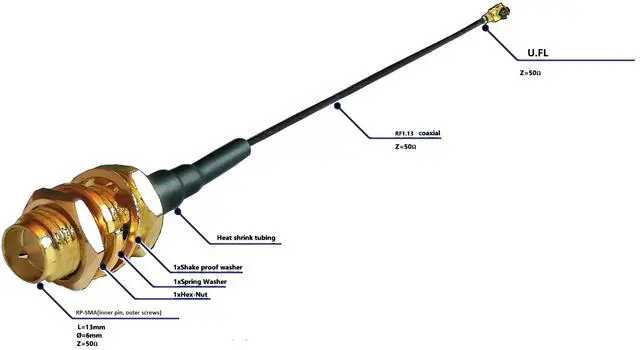

Included Hardware Hex-Nut (x1), Spring Washer (x1), Shake-Proof Washer (x1)
Application:
External antennas for Intel Wireless Cards (7260/7265 mini PCI-E), FritzBox routers (7390/7580/7590), WiFi 2.4G /5G routers & repeaters.
Bluetooth & IoT: BLE (Bluetooth Low Energy) devices, UHF/HF communication systems.
High-Frequency Electronics: Drones, GPS modules, RF test equipment
Impedance: 50
Frequency Range Coaxial: DC ~ 6 GHz
Frequency Range SMA Connector: DC ~ 18 GHz
Frequency Range U. FL (IPX)
Connector: DC ~ 6 GHz
Coaxial Type: RF 1.13 (AWG32)
Connector Coating: Brass gold-plated (SMA & U. FL)
IPX Type: U. FL
Coaxial Jacket: FEP (Flexible, heat-resistant)
Coaxial Bending Radius; 5 mm
Coaxial Loss: 9.4 dB/m @ 6000 MHz
Coaxial Capacitance: 98 pF/m
Coaxial Tensile Strength: 1.76 kgf/mm²
Coaxial Length: 20 cm
Coaxial Color: Gray / Black (optional)
Included Hardware Hex-Nut (x1), Spring Washer (x1), Shake-Proof Washer (x1)
Application:
External antennas for Intel Wireless Cards (7260/7265 mini PCI-E), FritzBox routers (7390/7580/7590), WiFi 2.4G /5G routers & repeaters.
Bluetooth & IoT: BLE (Bluetooth Low Energy) devices, UHF/HF communication systems.
High-Frequency Electronics: Drones, GPS modules, RF test equipment
