_Mega Brand Female to N Type Female Bulkhead Mount Pigtail Cable 8inch Low Loss RG178 Coaxial Jumper(2Pcs) for RF Applications,Base Stations,PCI WiFi Card,Wireless Router,Gateway etc
- N Type Female Pigtail Cable: Cable type:RG178 coaxial cable; Cable length:20cm/8inch; Connector type 1:N Female; Connector type 2: Female; Impedance:50 Ohm.
- Small Diameter: The small diameter of RG178 makes it suitable for applications where space is limited or where a thin and lightweight cable is required.It can be easily routed through tight spaces.
- Low Loss: RG178 cable has relatively low signal loss,and the low loss ensures high signal strength throughout the entire cable length.
- Widely Used: These n-type bulkhead pigtail cable widely used for RF Applications,Antennas,t-mobile 5G gateway router,Wireless Router,external gps antenna, lte modem,Mini PCIe Cards,Network Card,PCI WiFi WAN Repeater,wifi internal antenna etc.
- We are professional RF coaxial cable manufacturers,if you need coaxial patch cords of different lengths,please contact us.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specification:

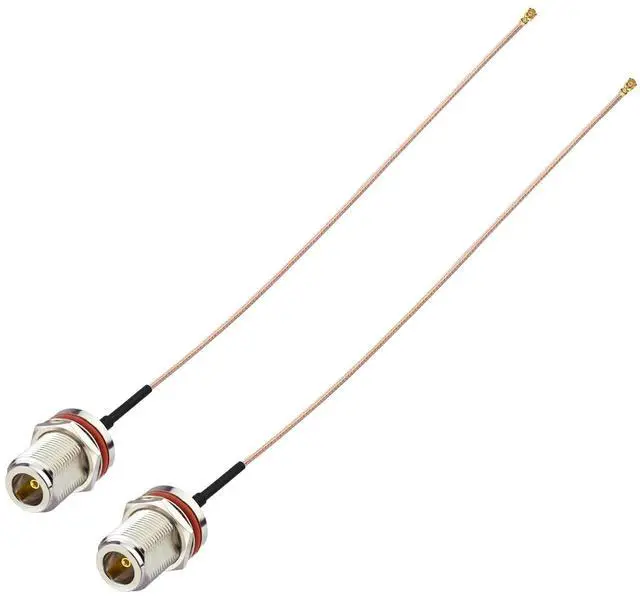

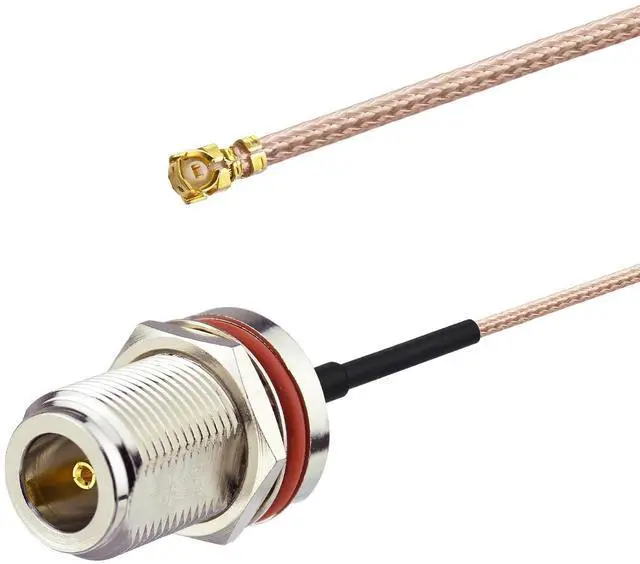

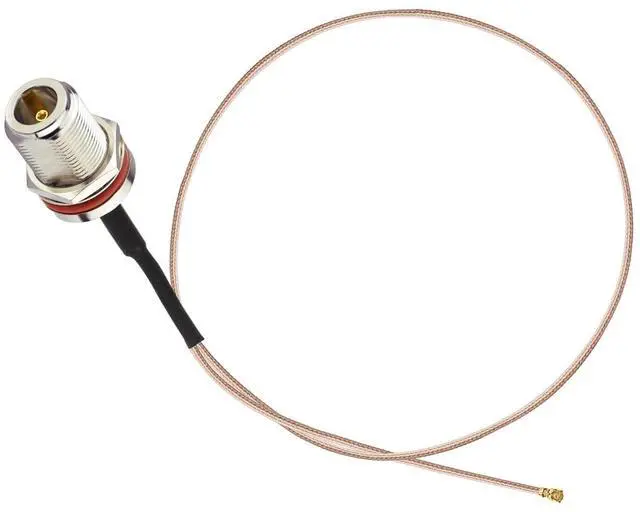

N female bulkhead pigtail cable
Cable type:RG178 coaxial cable
Cable length:20cm/8inch
Connector type 1: N Female
Connector type 2:
Impedance: 50 Ohm
VSWR: <1.5:1
Frequency Range: DC to 6 GHz
RoHs Compliaint: YES
Operating Temperature:-40° ~ +85°
Storage Temperature: -40° ~ +85°
Connector Polarity: Standard
Mount Method 1:Bulkhead with O-ring
Package List:2 x Pigtail Cable

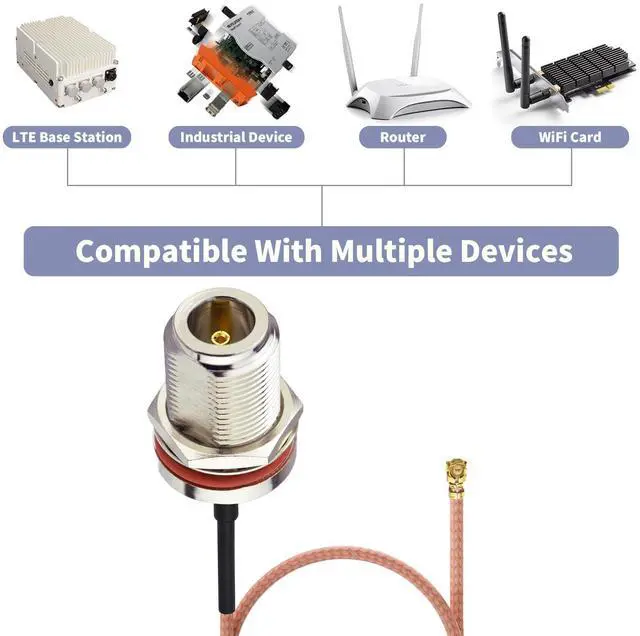

Application: Compatible with RF Applications, N connector Antennas,Base Stations, Network Card,Wireless Router,external gps antenna, lte modem, Mini PCIe Cards,wifi internal antennaetc.
Product information
| Brand | _Mega Brand |
| Connector Type | RF Connector |
| Cable Type | RG178 coaxial cable |
| Compatible Devices | for RF Applications,Wireless Router,lte modem,Mini PCIe Cards,PCI WiFi WAN Repeater etc. |
| Special Feature | RF Coaxial Cable |
| Package Dimensions | 7.68 x 5.67 x 0.79 inches; 2.82 ounces |
| Item model number | GP-AC-UFL-28 |
| Date First Available | January 3, 2024 |
| Manufacturer | wlaniot |
| #287 in Coaxial Cables | #287 in Coaxial Cables |
