BUCIER 2 Way Coaxial Cable Splitter MoCA 5-2400MHz, RG6 Compatible Coax Splitter for HD Satellite/Cable TV, Internet & CATV Antenna Signals, Low Loss MoCA Support

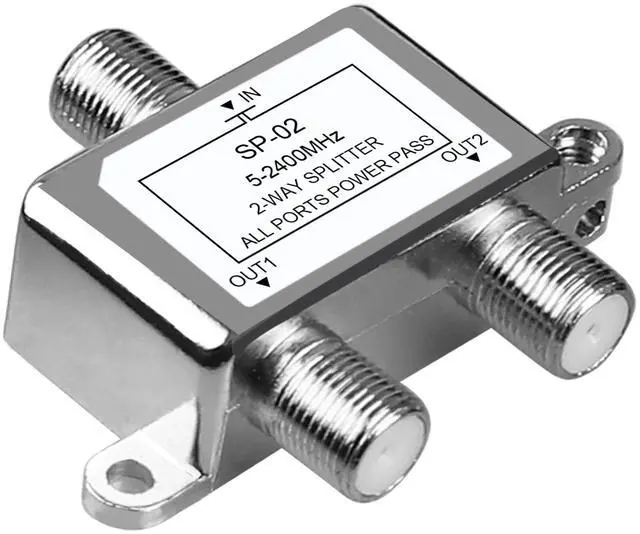

Digital 2-Way Coaxial Cable Splitter

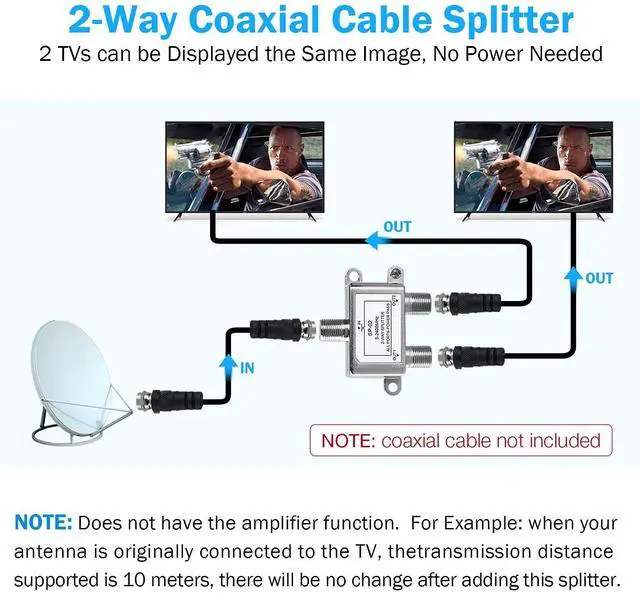

Distributes a digital signal to multiple TVs

1 Input 2 Outputs (balanced)

Distributes digital signal of 2.4 GHz : 5-2400 MHz

Power Pass All Ports

Compatible with RG59 and RG6 coaxial cable

Gold plated connectors for corrosion resistance

Features:

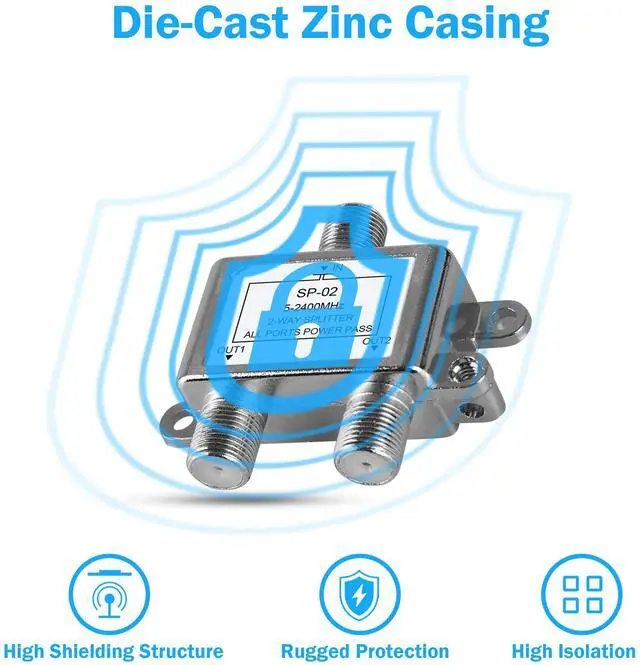

1Zinc die-cast housing, Nickel-plated

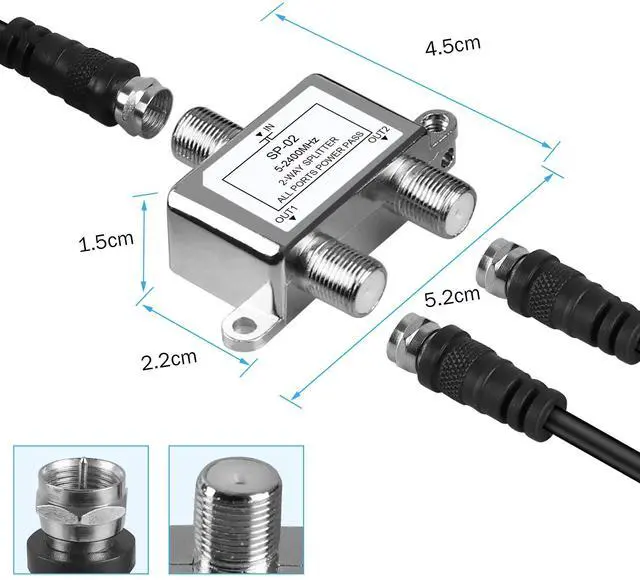

2Light weight and compact size

3Easy installation with two edge hole sites

4Screening factor: 5-2400MHz100dB

5Low insertion loss, high isolation, perfect performance index

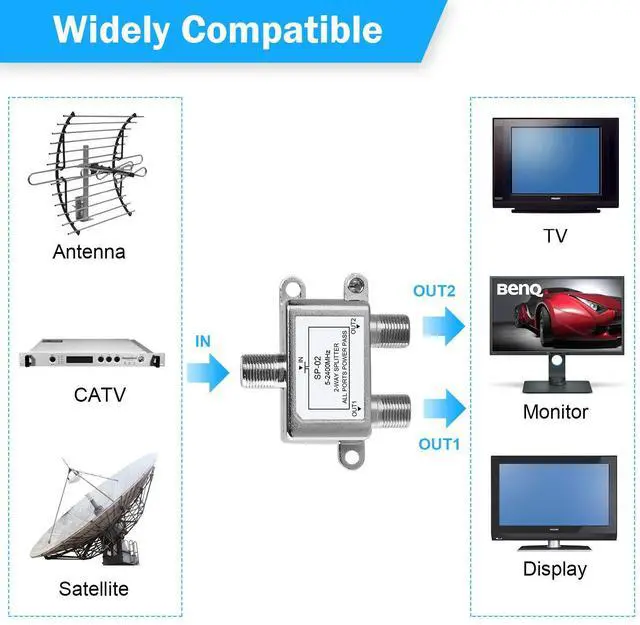

6Designed for SATV/CATV

7Power passing-24V 0.8A(MAX.)

8All ports F-(f)connector,75F

Additional Features

• [LOW SIGNAL LOSS]The frequency range of this moca splitter supports up to 5-2400MHz (2.4GHz), and internal circuit board for better reliability/durability. High shielding structure with low insertion loss, high return loss and isolation for better performance on TV, satellite and all other devices signal. Between 1750 and 2400MHz there is low signal loss of only 4.5db on each output port improving performance and speeds.
• [INSTALLATION STEPS]Prepare the coaxial cable and F-type male connectorStrip the coaxial cableConnect the coaxial cable to F-type male connectorConnect the coaxial cable to the coaxial splitter. In order to make your satellite connection balance and easier, all coaxial ports of the dispenser are power passing. (NOTE: ONLY One Highest Voltage is Allowed to Pass At A Time)
