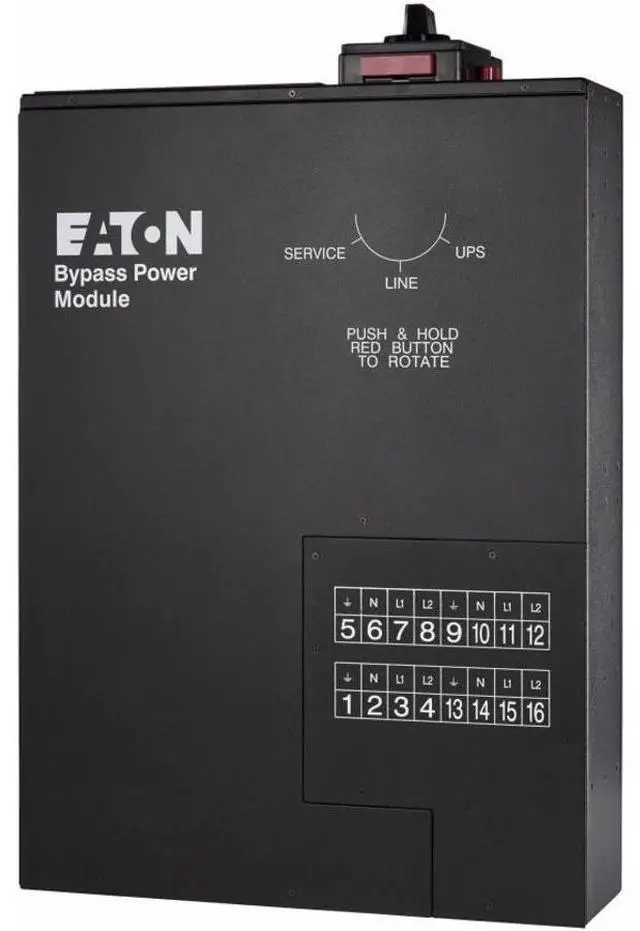

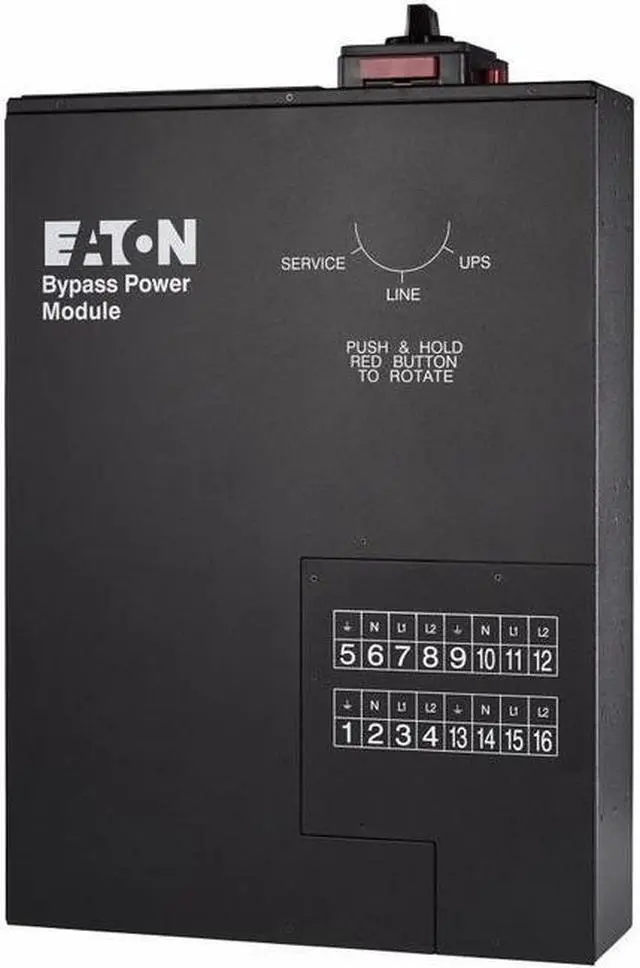

Eaton Bypass Power Module HARDWIRE in/Out
A reliable power solution for your IT infrastructure the Eaton Bypass Power Module HARDWIRE in/Out offers a range of features to ensure seamless power distribution and safe operation at all times.
- Local Power Distribution: Equipped with local outlets featuring integrated circuit protection this power module allows for efficient power distribution within your setup.
- Flexibility in Form Factors: Whether you prefer rackmount or wallmount installations this module provides additional flexibility to meet your specific requirements.
- Enhanced Safety: The bypass includes auxiliary contacts that force the UPS to bypass guaranteeing secure operation and uninterrupted power flow.
- Designed for Rack Mounting: Ideal for customers seeking a fully rack-mounted IT setup this module is a practical choice for streamlined organization and accessibility.
- Specifications: With a sleek black color a maximum electric current of 125A 3-phase input wiring and weighing 44.65 lbs this power module offers robust performance and durability.
- Color: Black
- Max Electric Current: 125A
- Input Wiring: 3-phase
- Weight: 44.65 lbs
To install the Eaton Bypass Power Module HARDWIRE in/Out follow these steps:
- Choose a suitable location for rack or wall mounting.
- Ensure proper electrical connections.
- Secure the module in place following the manufacturer's guidelines.
- Connect the input wiring as per the specifications.
- Verify the installation and test for functionality.
- Is this product suitable for 24/7 operation?
Yes the Eaton Bypass Power Module HARDWIRE in/Out is designed for continuous operation to support your critical infrastructure needs. - Can this module be integrated with existing UPS systems?
Absolutely this module is compatible with most UPS systems providing seamless integration and enhanced power management. - Does this product come with a warranty?
Yes this product is brand new and comes with a standard warranty to ensure your peace of mind regarding its performance and quality. - What is the recommended maintenance schedule for this module?
Regular inspection and maintenance every 6 to 12 months are recommended to ensure optimal performance and longevity of the power module.
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 3 years
- Limited Warranty period (labor): 3 years
- Read full details
Return Policies
- Contact Manufacturer for Assistance
- This item is covered by Newegg.com's Manufacturer Warranty Only Return Policy.
- Read full return policy for details.
Manufacturer Contact Info
- Manufacturer Website
- Support Phone: 1-800-386-1911
- Support Website
- View other products from Eaton
LOADING...
The Eaton Electrical Bypass Power Module is a hardwired maintenance-bypass and power-distribution accessory for compatible Eaton UPS systems, suited to IT and facility operators who need to service or isolate a UPS while keeping supported critical loads powered.
Recommended For
- IT or facilities teams running a compatible Eaton hardwired UPS who need to keep critical equipment powered from utility while the UPS is isolated for service or replacement. In bypass mode, the load is no longer receiving the UPS’s battery backup or power conditioning.
- Data-center, server-room, or network-room operators using an Eaton UPS model confirmed as compatible and looking for a maintenance bypass with power distribution in a centralized installation.
- Qualified electricians and experienced UPS technicians installing or operating a fixed hardwired bypass for critical loads; Eaton says hardwired installations should follow local electrical codes and be performed by a qualified electrician.
- Organizations with hardwired UPS systems above 6 kVA that need a way to connect utility power directly to critical equipment during UPS maintenance; Eaton describes maintenance bypass as a common requirement for these systems.
Real-World Use Scenarios
- During scheduled service on a compatible Eaton UPS, a technician can transfer the connected load to utility power through the bypass module, helping keep servers or network equipment running if utility power is available; the load is not protected by the UPS while in bypass.
- If a compatible UPS needs to be isolated for repair or replacement, the module can route the connected load around it, reducing the need to shut down equipment while the UPS is out of service, provided utility power remains available.
- In a fixed-wiring server room or network closet using a compatible Eaton UPS, the hardwired connections support integration with the facility’s electrical installation, rather than relying on plug-in input and output connections.
- For a compatible Eaton 9155, 9170+, or 9PX split-phase UPS installation, the module provides a dedicated bypass path for critical equipment; during a utility outage, however, bypass mode does not provide battery backup.
Spec Summary
| Attribute | Value |
|---|---|
| Best For | UPS installations requiring a hardwired in/out bypass power module |
| Electrical Rating | 125 A output current |
| Installation And Form Factor | Rack form factor |
| Physical Dimensions | 26.5 in deep × 17.3 in wide × 5.1 in high |
| Battery Configuration | Batteries are neither required nor included |
| Appearance | Black |
| Brand And Manufacturer | Eaton (Eaton Corporation) |
