Eaton 9PX 192V Li-Ion Extended Battery Module For 9PX6K-L UPS 2U Rack/Tower 9PXEBM192RT-L

Product Information

• Part Number: 9PXEBM192RT-L
• Product Name: Eaton 9PX 192V Li-Ion Extended Battery Module For 9PX6K-L UPS
• Manufacturer: Eaton
• Model: 9PXEBM192RT-L
• Product Type: Extended Battery Module (EBM)

Product Description

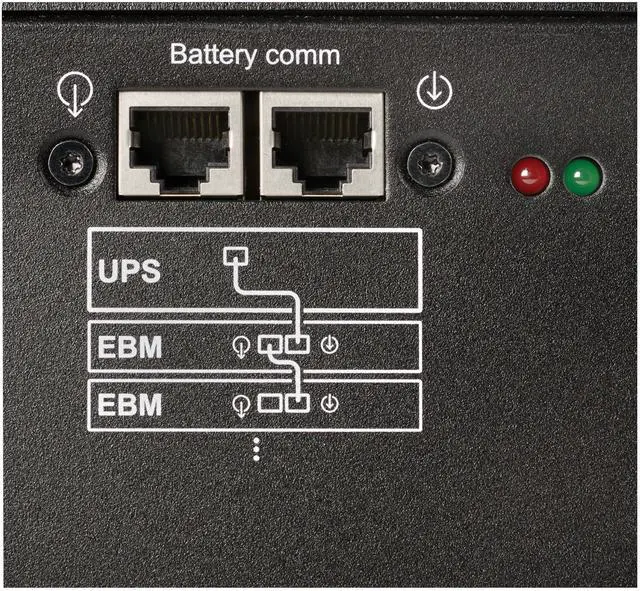

The Eaton 9PXEBM192RT-L is a high-performance extended battery module designed to provide scalable runtime for the Eaton 9PX 6kVA Lithium-Ion UPS model. This EBM utilizes advanced Lithium-Ion battery technology, which offers a longer service life and a smaller, lighter footprint compared to traditional lead-acid batteries. The module is housed in a 2U rack/tower form factor, allowing it to seamlessly integrate with the main UPS unit. It features an integrated Battery Management System (BMS) that provides continuous monitoring and communication with the UPS to optimize battery performance and health. This EBM is hot-swappable, enabling easy replacement or addition of modules without interrupting the connected load.

Product Specifications

• Battery Type: Lithium-Ion
• Nominal Battery Voltage: 192V

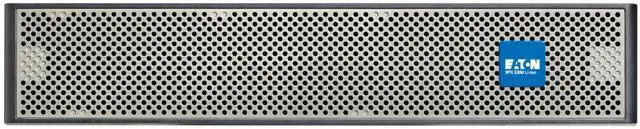

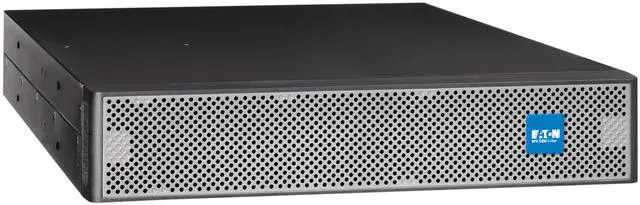

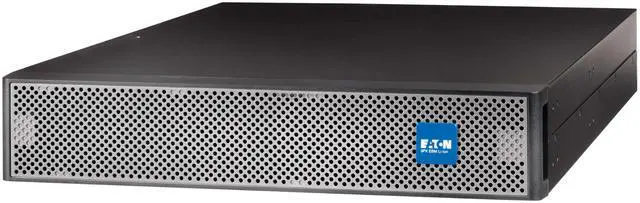

• Form Factor: 2U Rack/Tower
• UPS Compatibility: Eaton 9PX 6kVA Li-Ion UPS (9PX6K-L)
• Dimensions (H x W x D): 3.4 x 17.3 x 24.3 inches (86.5 x 440 x 620 mm)
• Weight: 43.7 lbs (19.8 kg)
• Color: Black

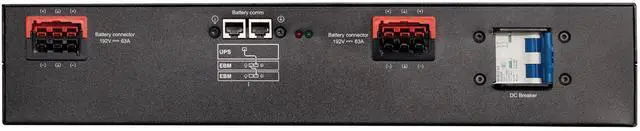

• Connection Type: EBM connector
