Ubiquiti UniFi UPS Tower 1000VA/600W Uninterruptible Power Supply (UPS-Tower)

Mechanical

1. Dimensions: 288 x 99 x 280.5 mm (11.3 x 3.9 x 11")
2. Weight: 8.17 kg (18 lb)
3. Enclosure Material: Polycarbonate and ABS blend
4. Form Factor: Desktop
5. Weatherproofing: IP20

Hardware

1. Management: Ethernet
2. Networking Interface: (1) 100/10 MbE port for network connection and (2) GbE ports for surge in/out

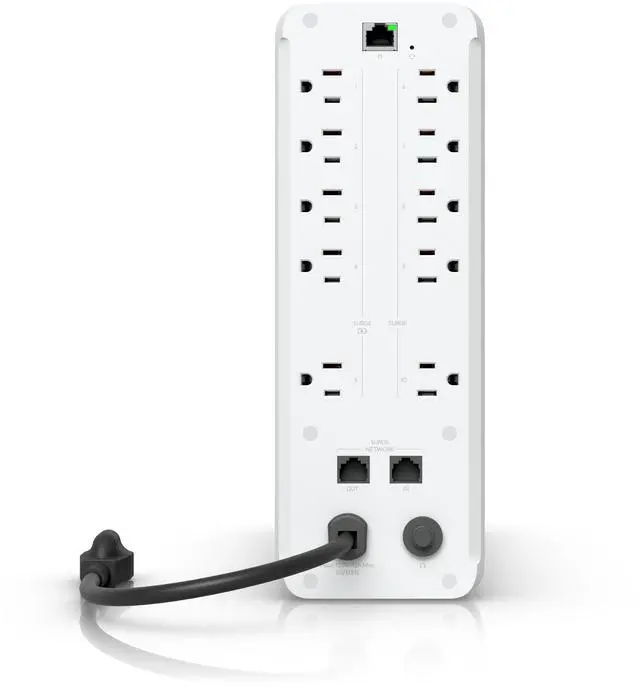

3. Power: (1) OVC II AC in: NEMA 5-15P / (5) Battery backup/surge protection: NEMA 5-15R / (5) Surge protection: NEMA 5-15R
4. Capacity: 1,000 VA / 600 W
5. Type: Line interactive
6. Input Voltage Range: 89 145 V AC
7. Power Method: (1) TN system, 120 V AC, 12 A Max., 50/60 Hz
8. Nominal Input Voltage: 120 V AC
9. Output Voltage: 120 V AC
10. Frequency Range: AC mode: 50/60 Hz ±5 Hz (Auto sensing) / Battery mode: 60 Hz ±1 Hz
11. AC Voltage Regulation: ±10% (Battery mode)
12. Transfer Time: 6 ms typical; 10 ms max (Battery mode)
13. Wave Form: Simulated sine wave (Battery mode)
14. Battery Type: (1) Lead Acid 12 V, 9 Ah
15. Runtime: Full load: 2 min / Half load: 7 min
16. Battery Charging Time: 68 hours to 90% capacity
17. Overload (On-Line Mode): 110% 5 min then fault / 120% immediate fault
18. Overload (Battery Mode): 110% shutdown in 5 sec / 120% immediate shutdown
19. Short Circuit Protection (On-Line Mode): Breaker 250 V AC 15 A
20. Output Short-Circuit Current: Ipeak 334.8 A / Irms 68.2 A
21. Buttons: (1) Power, (1) Factory reset

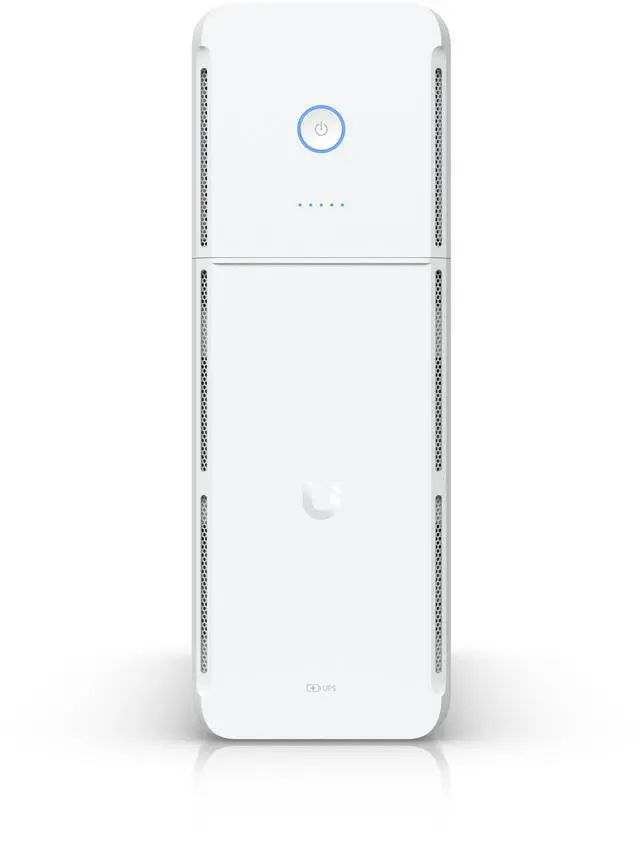

LEDs Status:

1. Off Not powered
2. Flashing white Initializing / Factory default
3. Steady white Waiting for adoption
4. Steady blue Adopted and working
5. Flashing blue Battery mode
6. Alternating white/blue Firmware upgrading
7. Rapid flashing blue Locate
8. Steady red Warning
9. Flashing red Low battery
