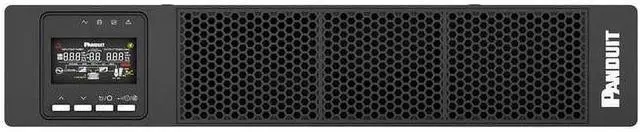

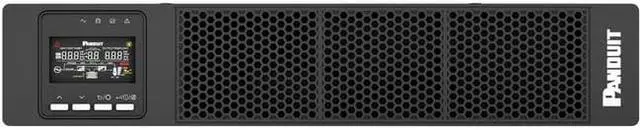

Panduit SmartZone U01N11V 1000VA Rack/Tower UPS - 2U Rack/Tower, Rail Mountable - AVR - 6 Hour Recharge - 120 V AC Input - 100 V AC, 110 V AC, 120 V AC, 115 V AC, 125 V AC Output - Single Phase - Seri

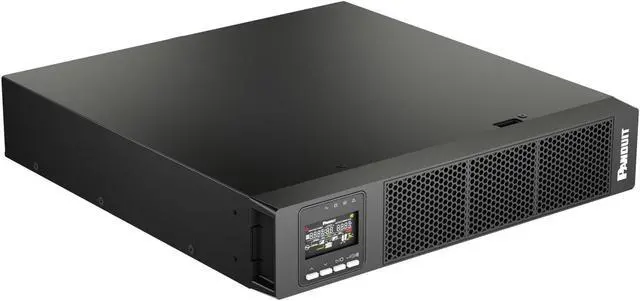

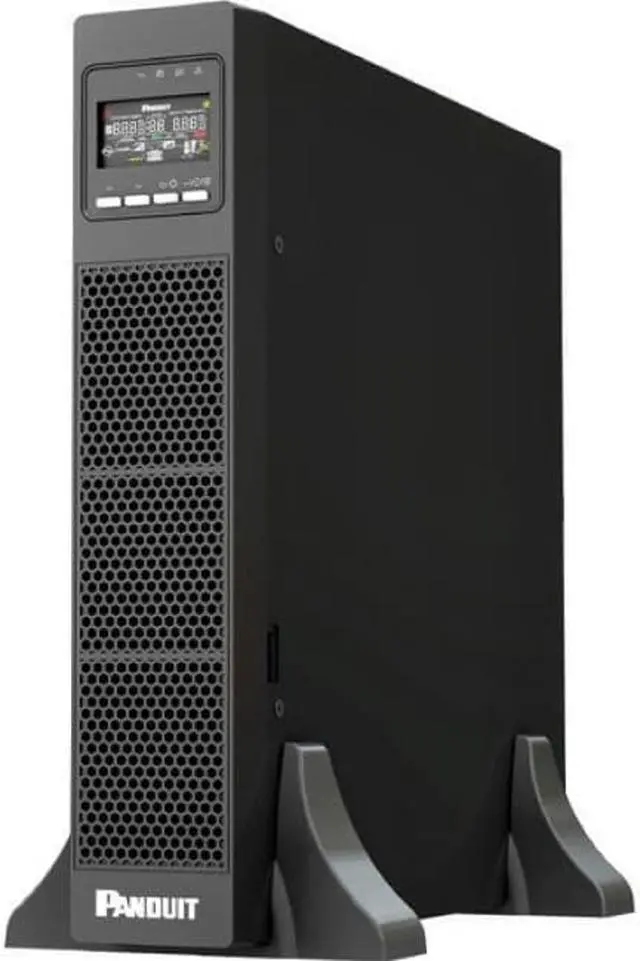

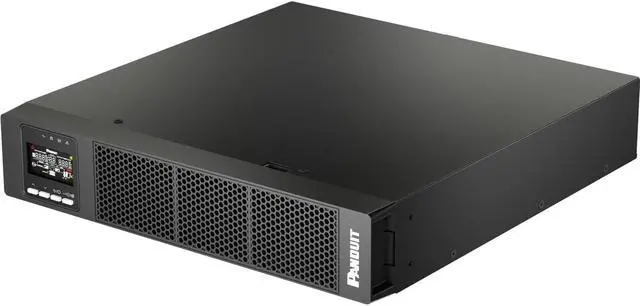

- 2U Rack/Tower, Rail Mountable
- AVR
- 6 Hour Recharge
- 120 V AC Input
- 100 V AC, 110 V AC, 120 V AC, 115 V AC, 125 V AC Output
- Single Phase
- Serial Port

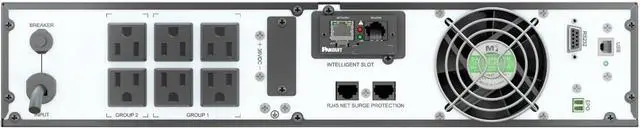

- 6 x NEMA 5-15R
+
+
- The Panduit ® SmartZone™ UPS with maintenance free VRLA battery, 1-3kVA single phase 120 V and 230 V units is a pure Online Double Conversion system that delivers highly efficient and reliable power protection and power backup for your computer IT equipment. With excellent electrical performance, enhanced intelligent monitoring and network functions, complying with ENERGY STAR ® 2.0, EMC and safety standards to meet the continually growing power demands of Data Center, Enterprise and Edge IT equipment.
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 1 year
- Limited Warranty period (labor): 1 year
- Read full details
Return Policies
- Contact Manufacturer for Assistance
- This item is covered by Newegg.com's Manufacturer Warranty Only Return Policy.
- Read full return policy for details.
Manufacturer Contact Info
- Manufacturer Website
- Support Phone: 1-800-777-3300
- Support Website
- View other products from Panduit
LOADING...
The Panduit SmartZone U01N11V is a 1000VA, 2U rack/tower UPS with AVR and six NEMA 5-15R outlets, suited to protecting compatible servers and other IT equipment in rack, tower, or edge setups.
Recommended For
- Small server or network racks that need continuous, clean power: the U01N11V uses online double-conversion topology and pure sine-wave output, with no transfer time when switching between online and battery mode.
- Remote or lightly staffed IT closets where administrators need to monitor the UPS and arrange graceful equipment shutdown; Panduit lists an included network management card for N models and remote management through its software.
- Small 120V edge or branch-network installations that need protection from unstable input power and outages, with a 1kVA rating and selectable 100–125V output.
- Rack operators seeking a short backup window to ride through brief outages or shut down equipment cleanly; Panduit specifies about 13 minutes at full load and 26 minutes at half load, with external battery packs available for longer runtime.
Spec Summary
| Attribute | Value |
|---|---|
| Best For | Battery-backed power protection for rack-mounted equipment using 120 V AC input and NEMA outlets |
| Power Capacity And Electrical Ratings | 1000 W power rating, with a listed amperage of 6 A |
| Input And Output Voltage | 120 V AC input and 120 V AC output; an additional voltage listing specifies 125 V |
| Battery | Sealed lead-acid battery |
| Outlets And Connectors | 6 NEMA outlets |
| Installation And Form Factor | Rack form factor |
| Model And Manufacturer | Panduit U01N11V |
