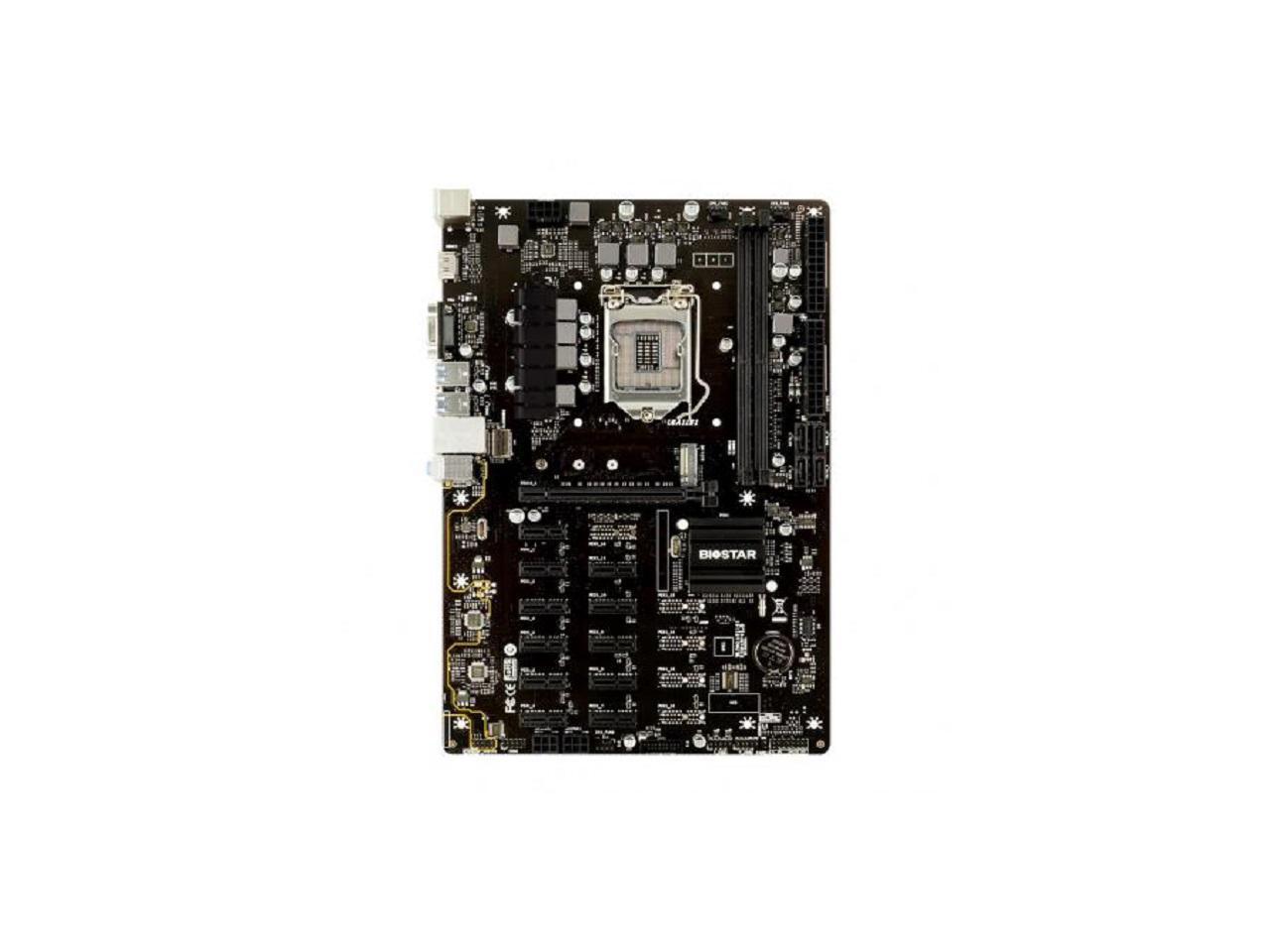

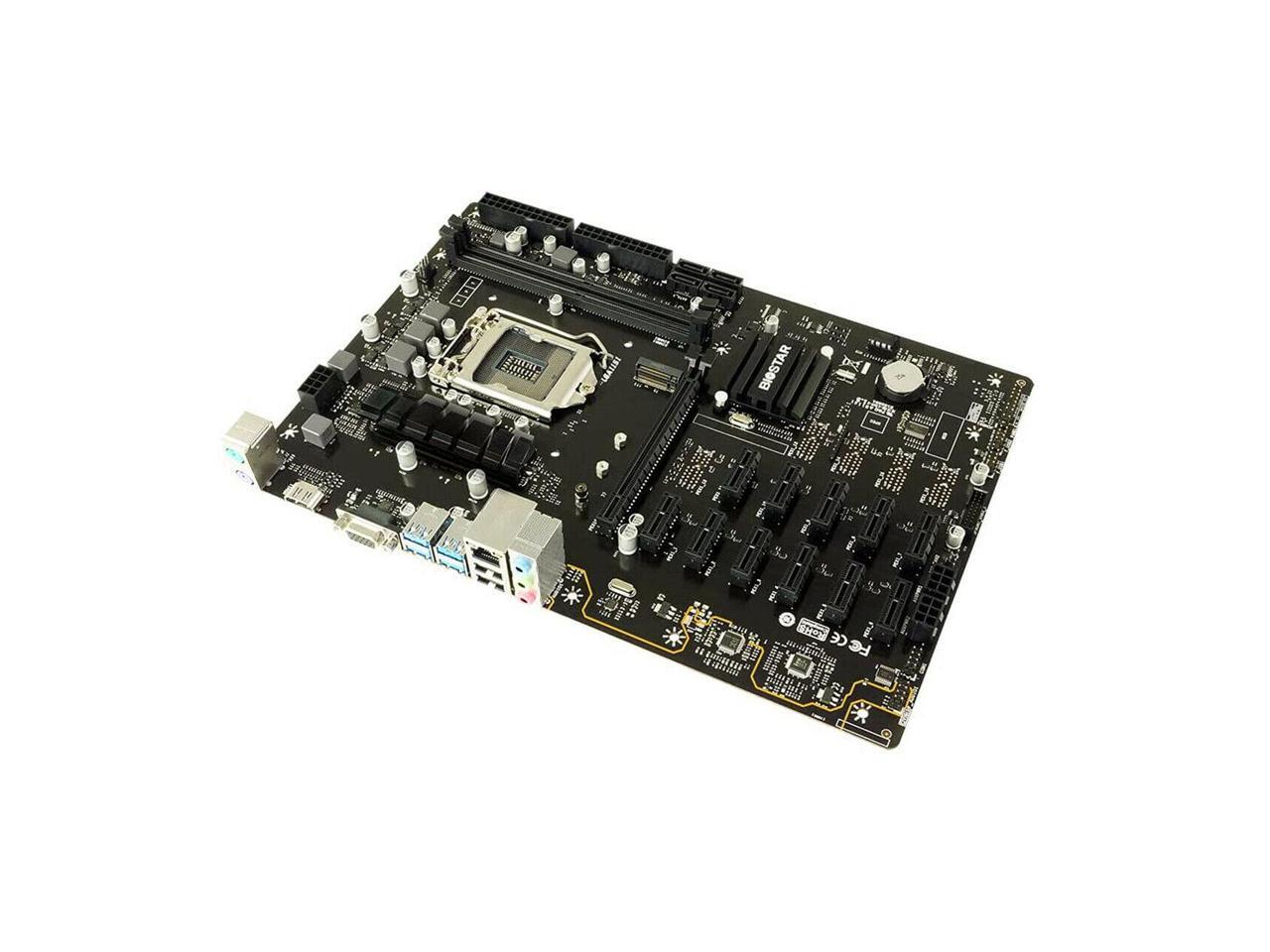

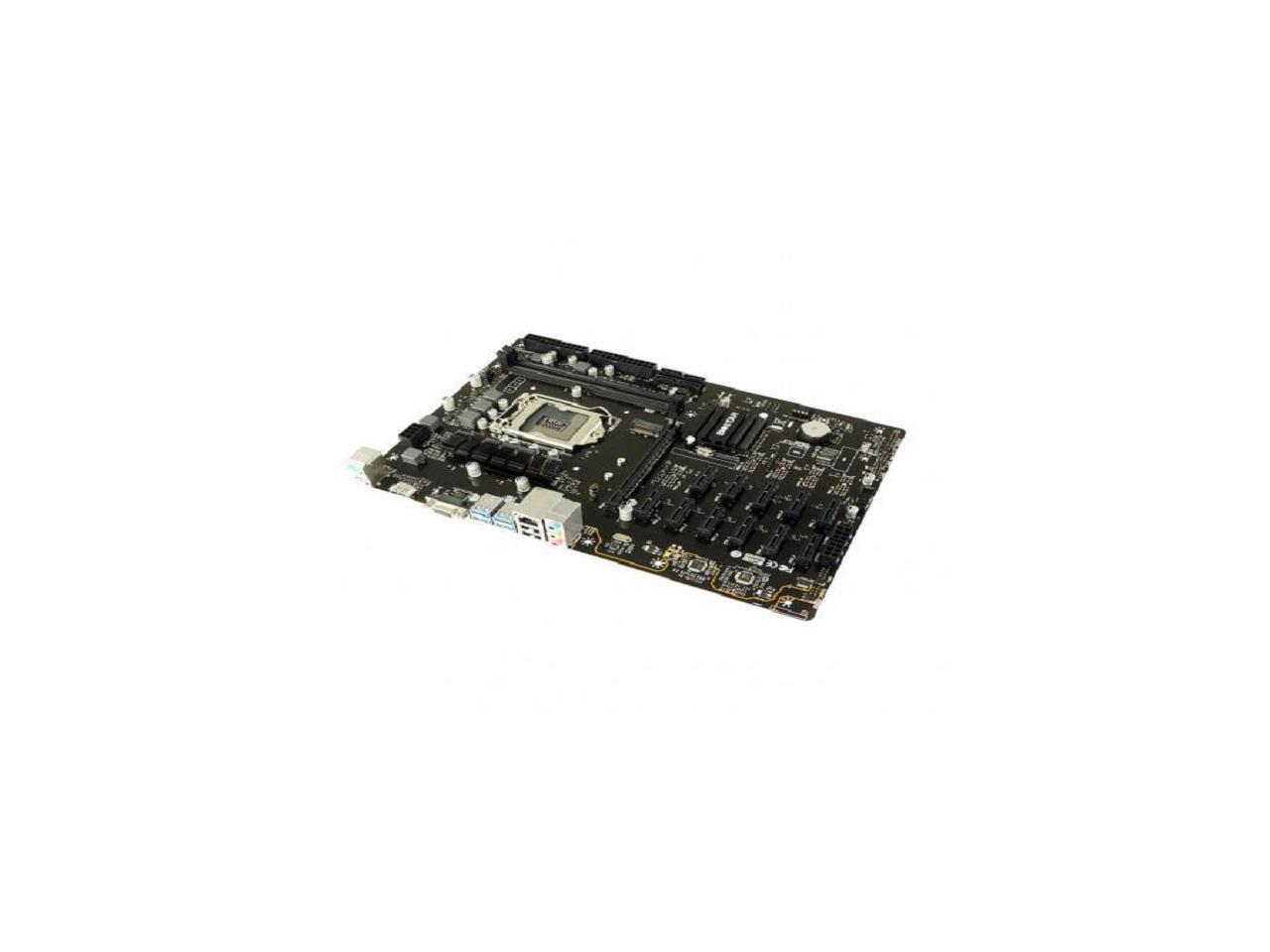

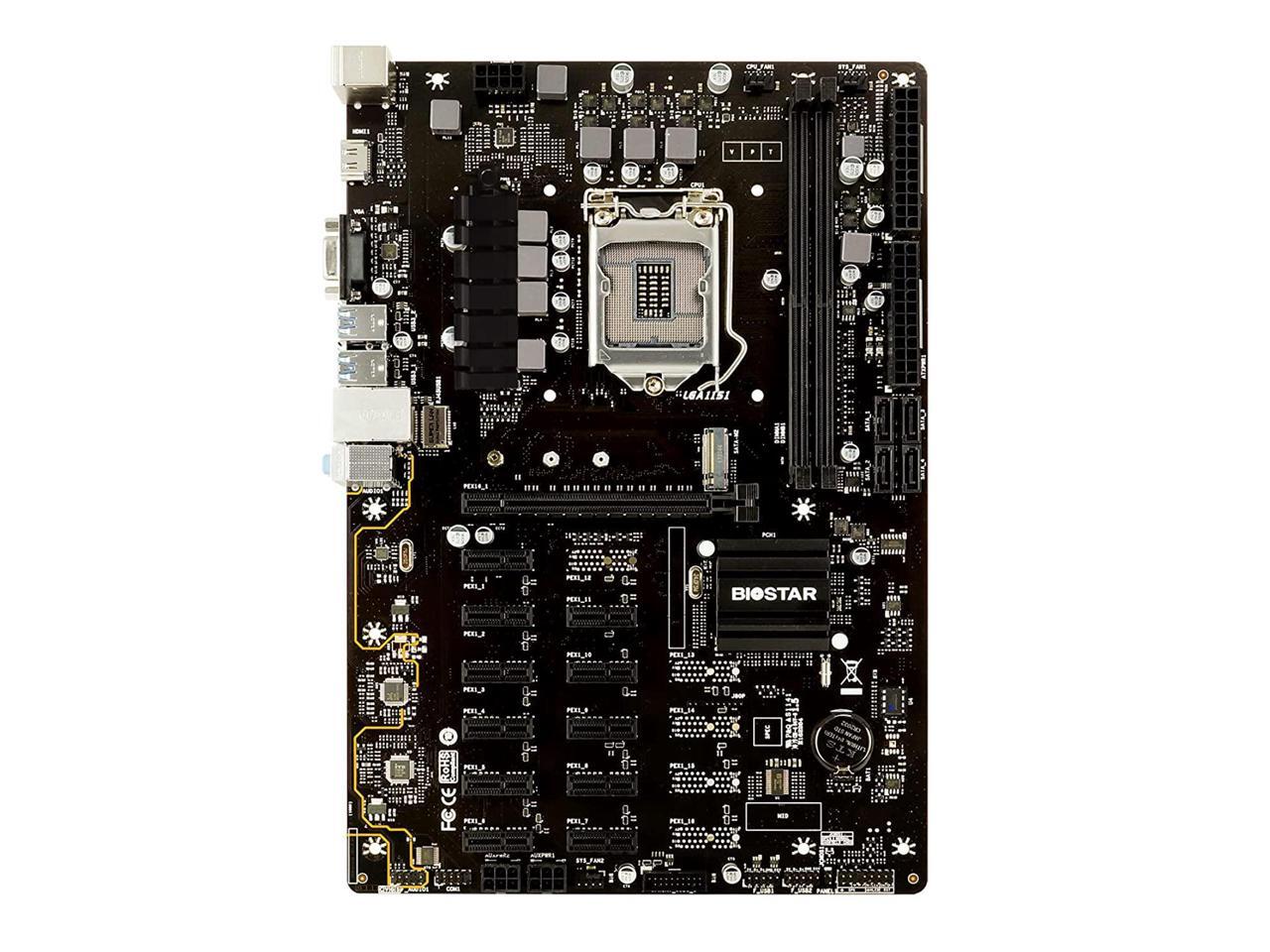

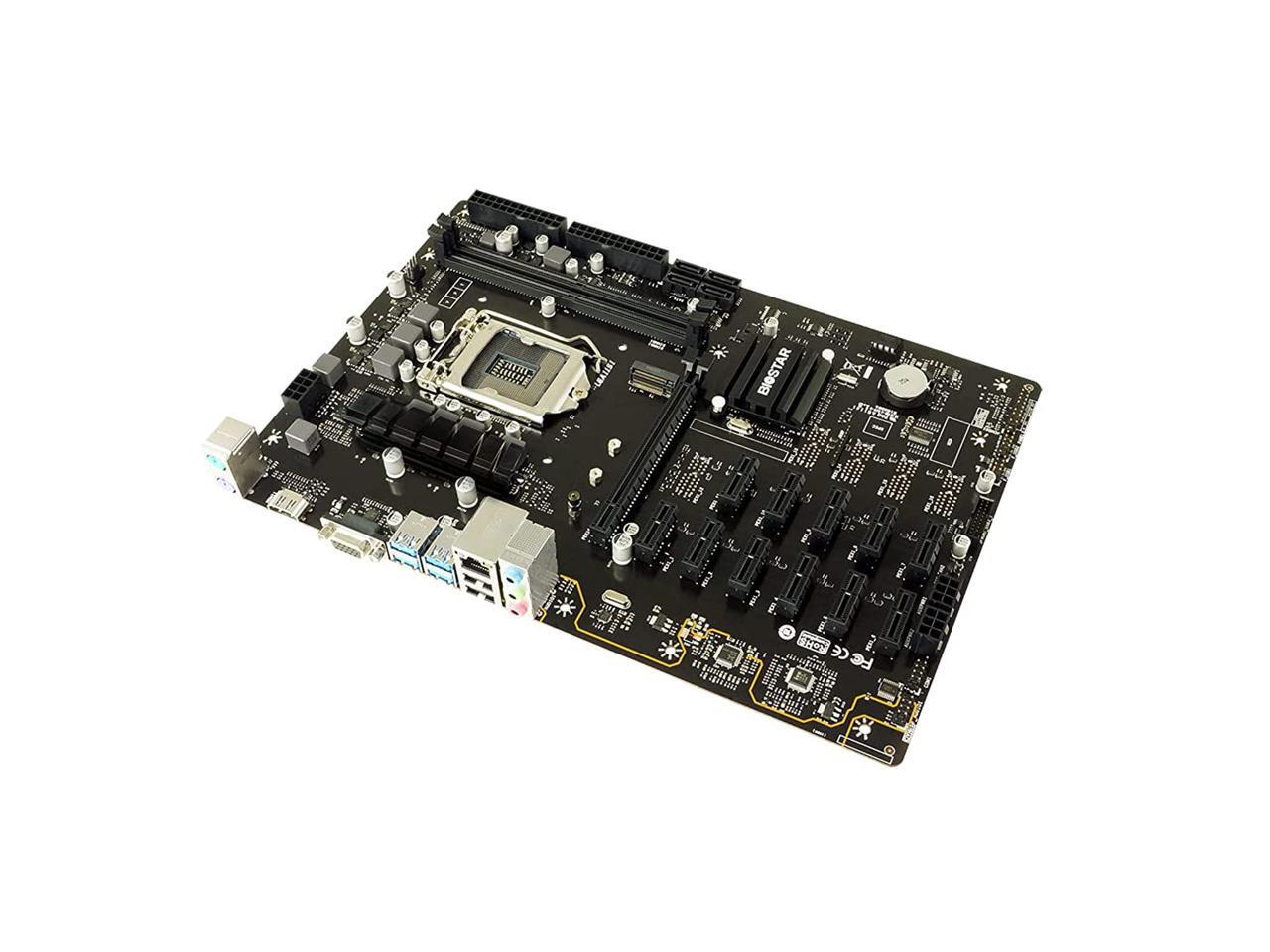

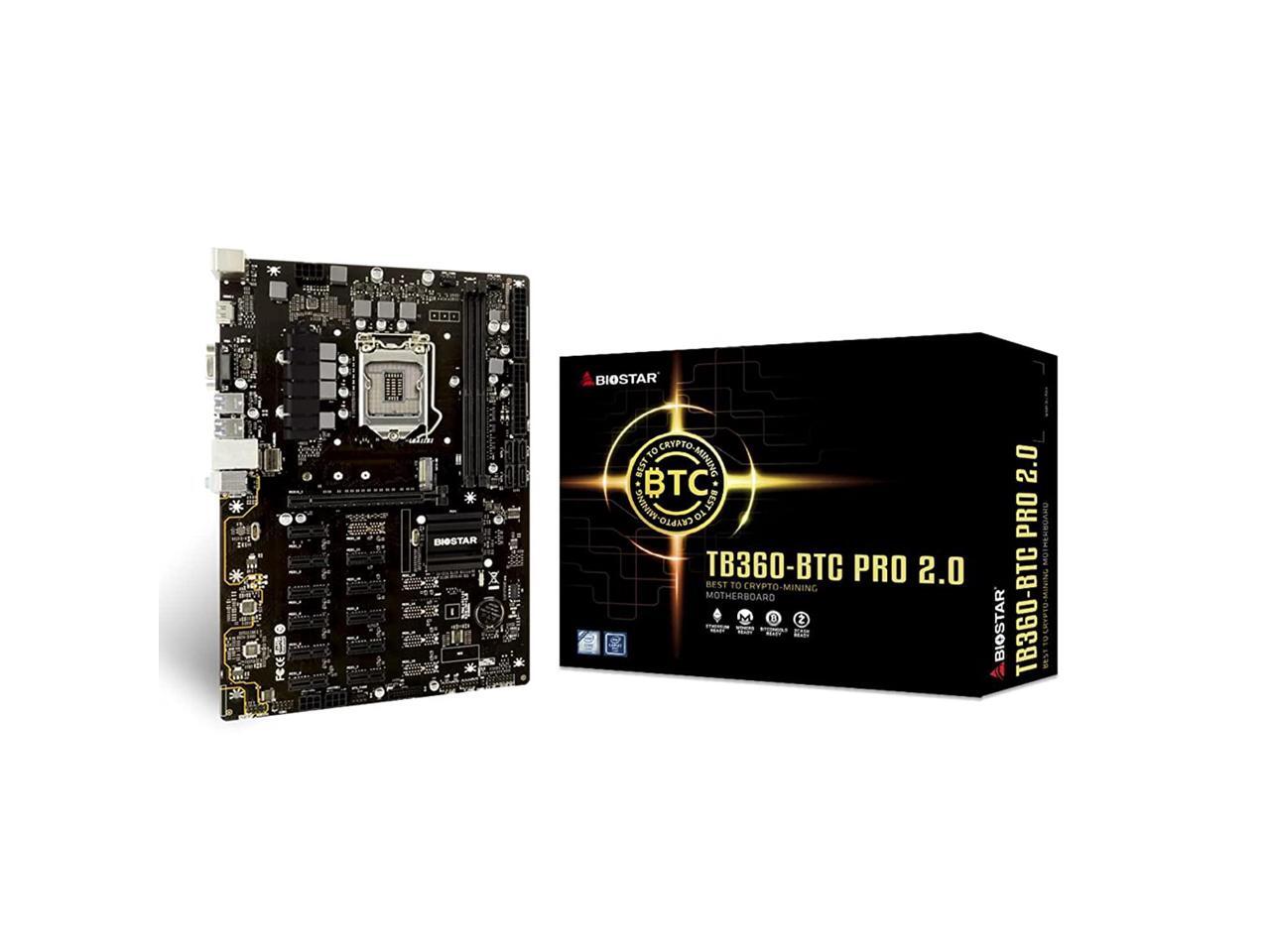

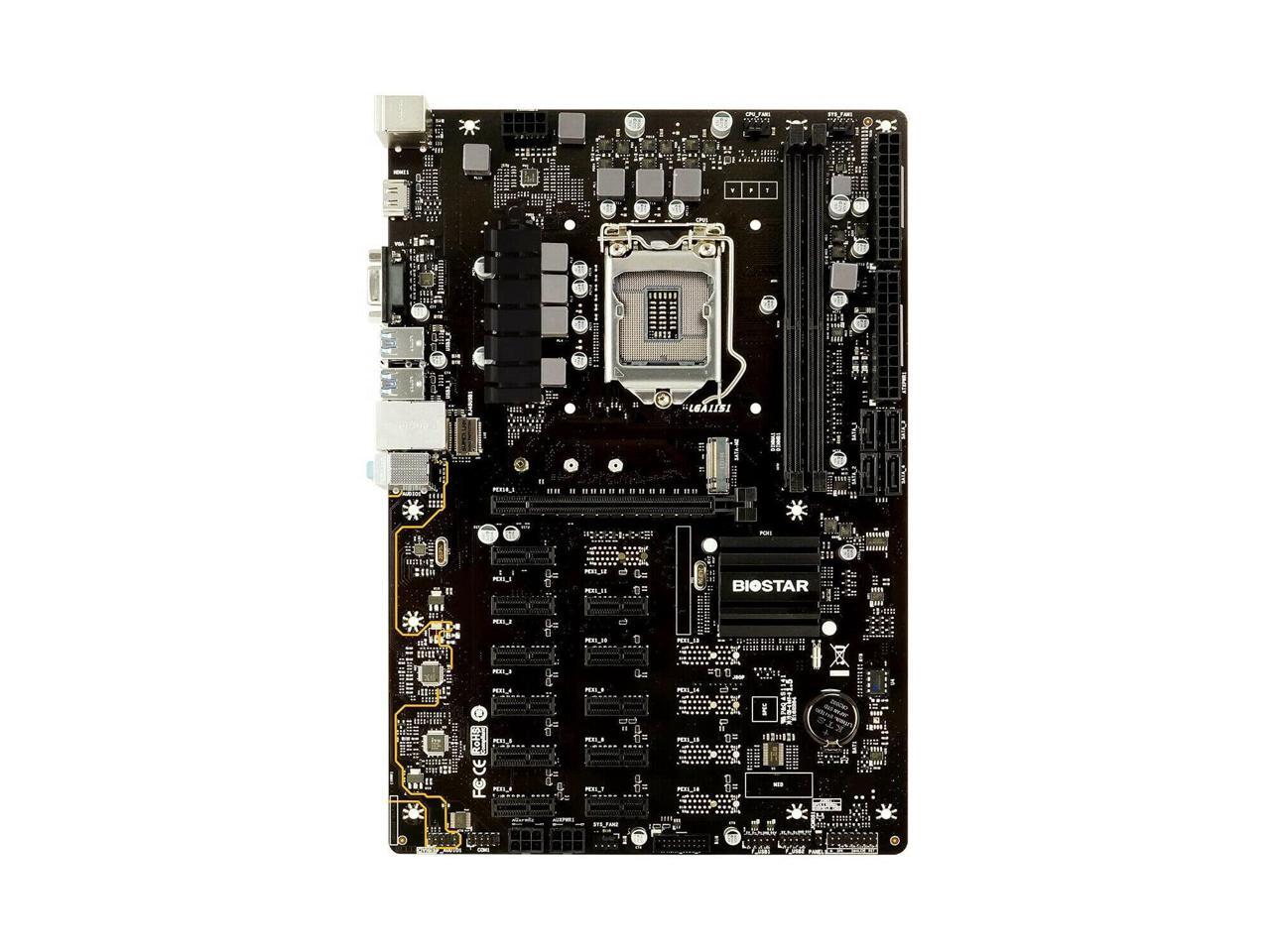

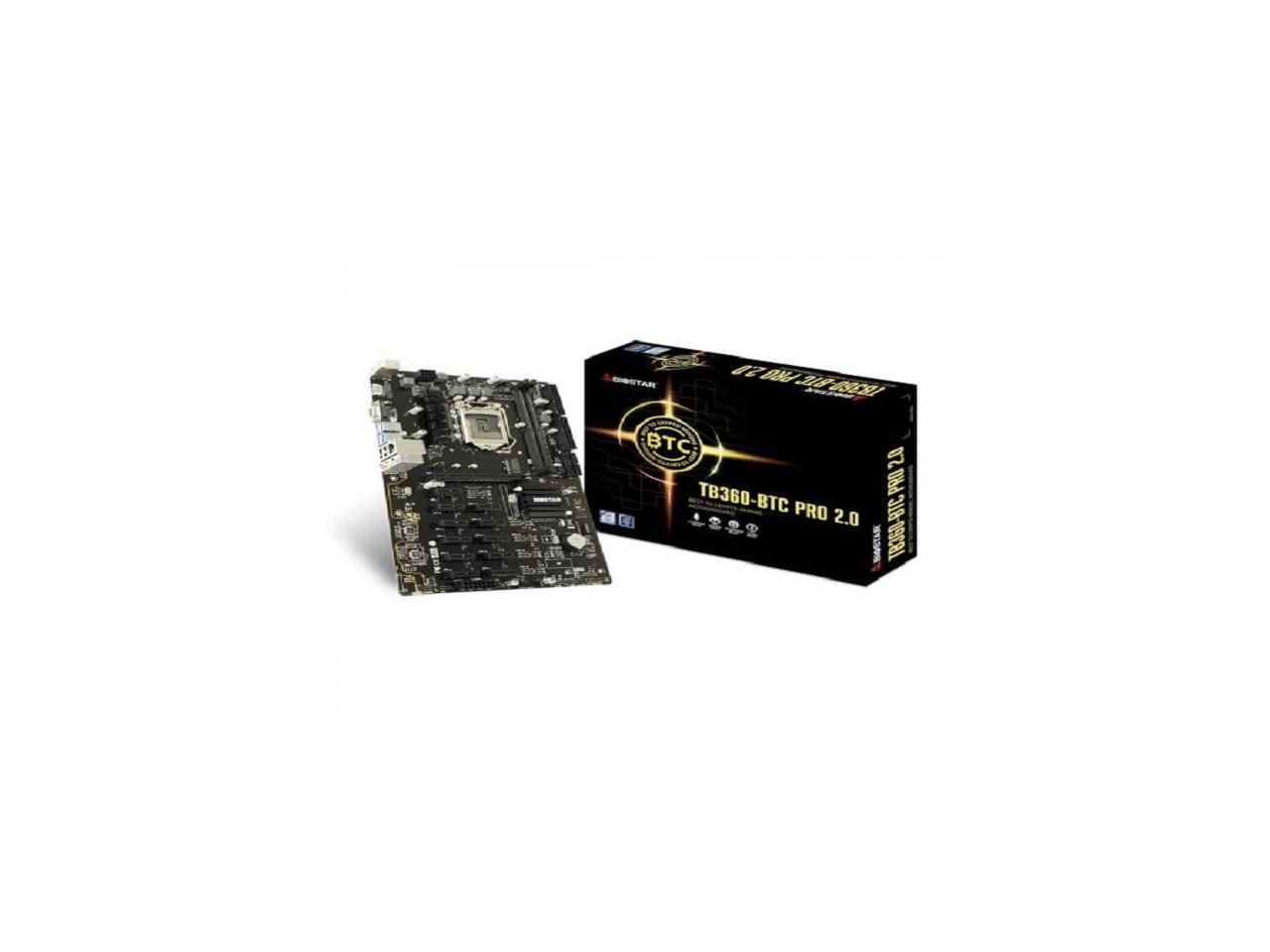

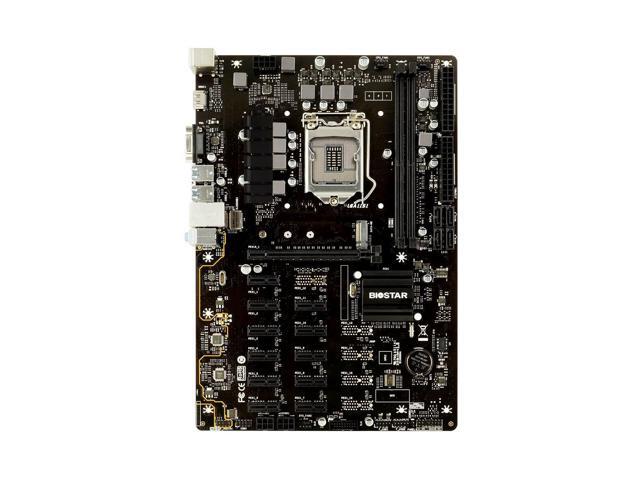

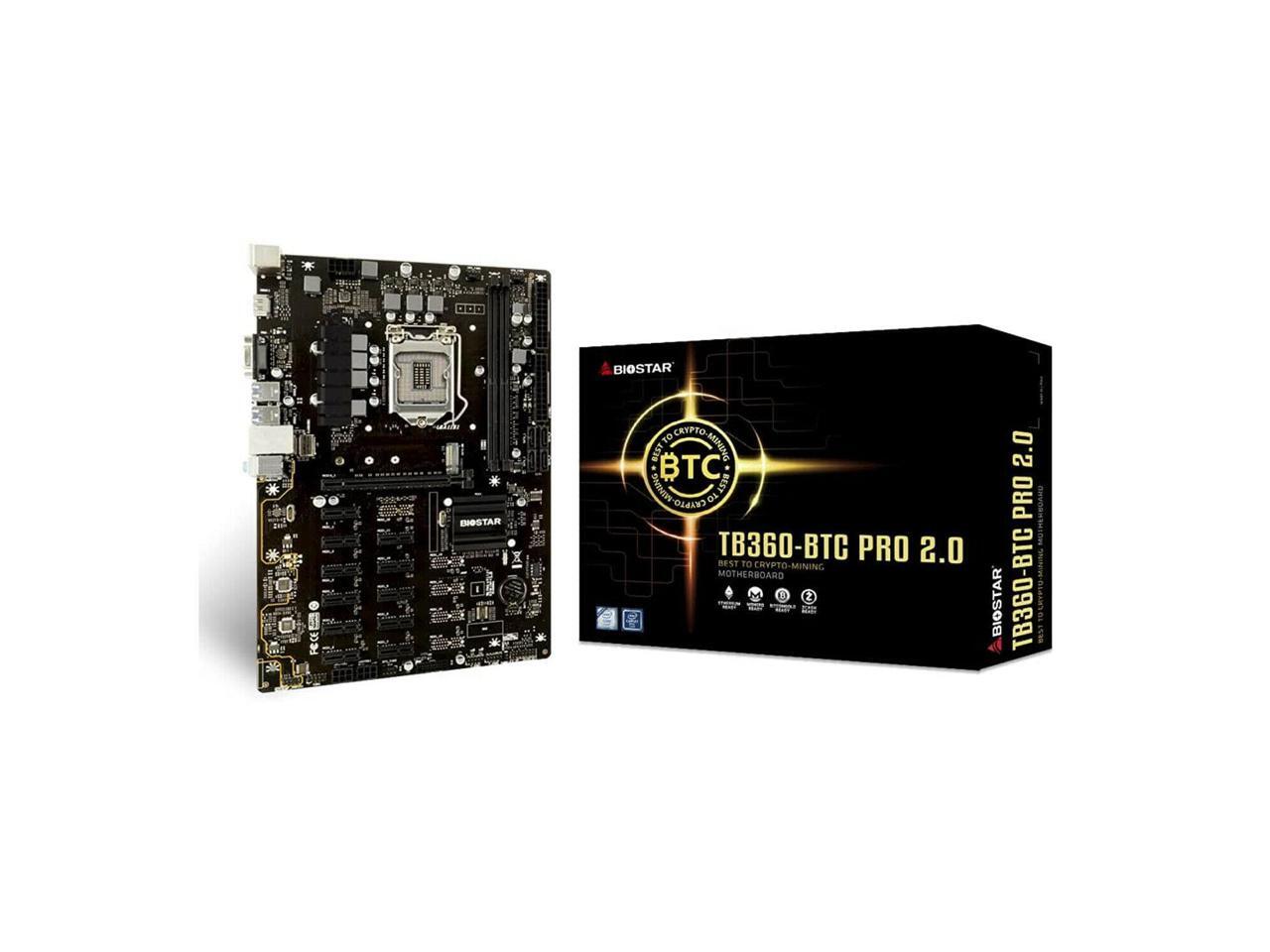

Biostar TB360-BTC PRO 2.0 version 6.x -12 X Pci-E 3.0 Usb 3.1 Intel Btc Mine Board For Cryptocurrency Mining (Btc) - (The latest version and new packaging of TB360-BTC PRO)

Chipset Intel B360
Processor 8th Gen Intel® LGA 1151 Processor
9th Gen Intel® LGA 1151 Processor
CPU TDP (Thermal Design Power): 95W

Memory support dual channel DDR4 1866/ 2133/ 2400/ 2666MHz
2 x DDR4 DIMM memory slots
Memory capacity can be expanded to 32GB
Onboard graphics card Intel's built-in integrated graphics core series CPU can only support the onboard output port display
The integrated graphics model is determined by the CPU model
Support DX12
Support HDCP
VGA interface, resolution up to 1920 x 1200 @60Hz
HDMI interface, resolution up to 4096 x 2160 @24Hz, in line with HDMI 1.4 specification
Storage capacity 4 x SATA3 6Gb/s interface
1 x M.2 (6Gb/s): Support SATA SSD
Network configuration Onboard Realtek RTL8111F-10/100/1000 network card chip
Super network card technology (intelligent speed-up + super lightning protection)
Sound card configuration Realtek ALC887 8-channel HD audio output
USB 4 x USB 3.1 ports
1 x USB 3.1 connector
2 x USB 2.0 ports
2 x USB 2.0 connector
Expansion slot 11 x PCIe 3.0 x1 slot
1 x PCIe 3.0 x16 slot (x16)
The maximum number of VGA card mining support depends on the VGA driver or mining software.

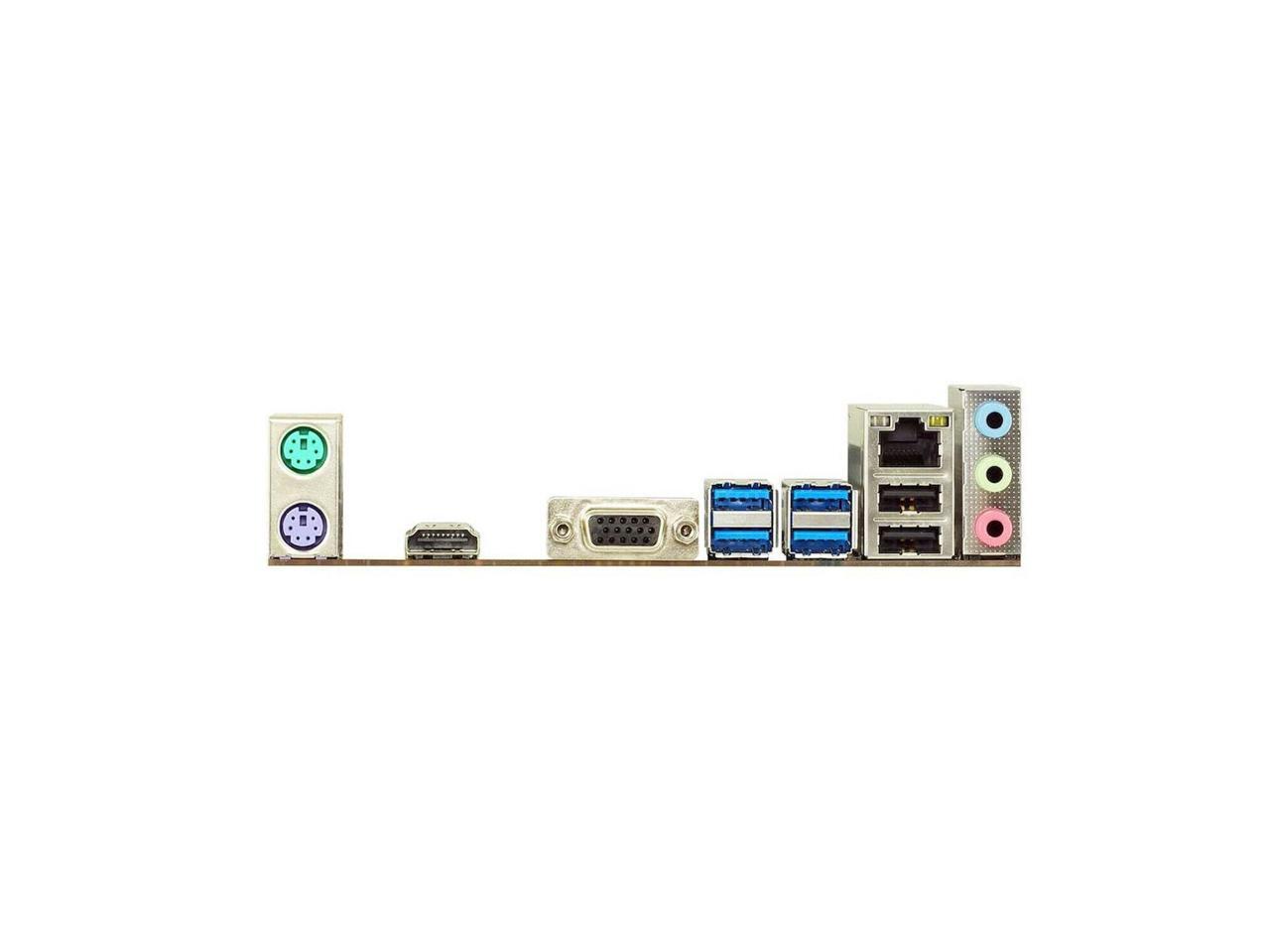

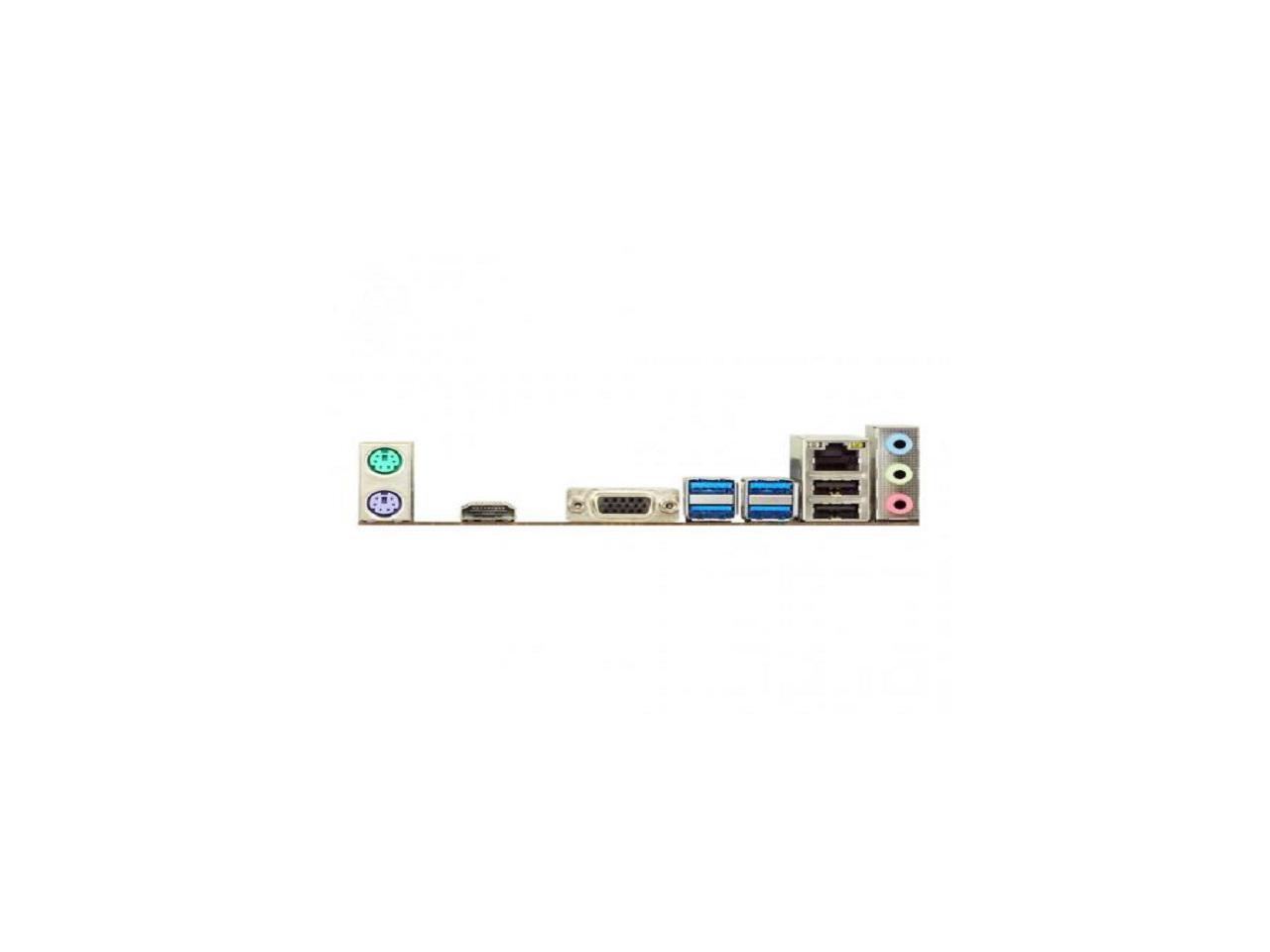

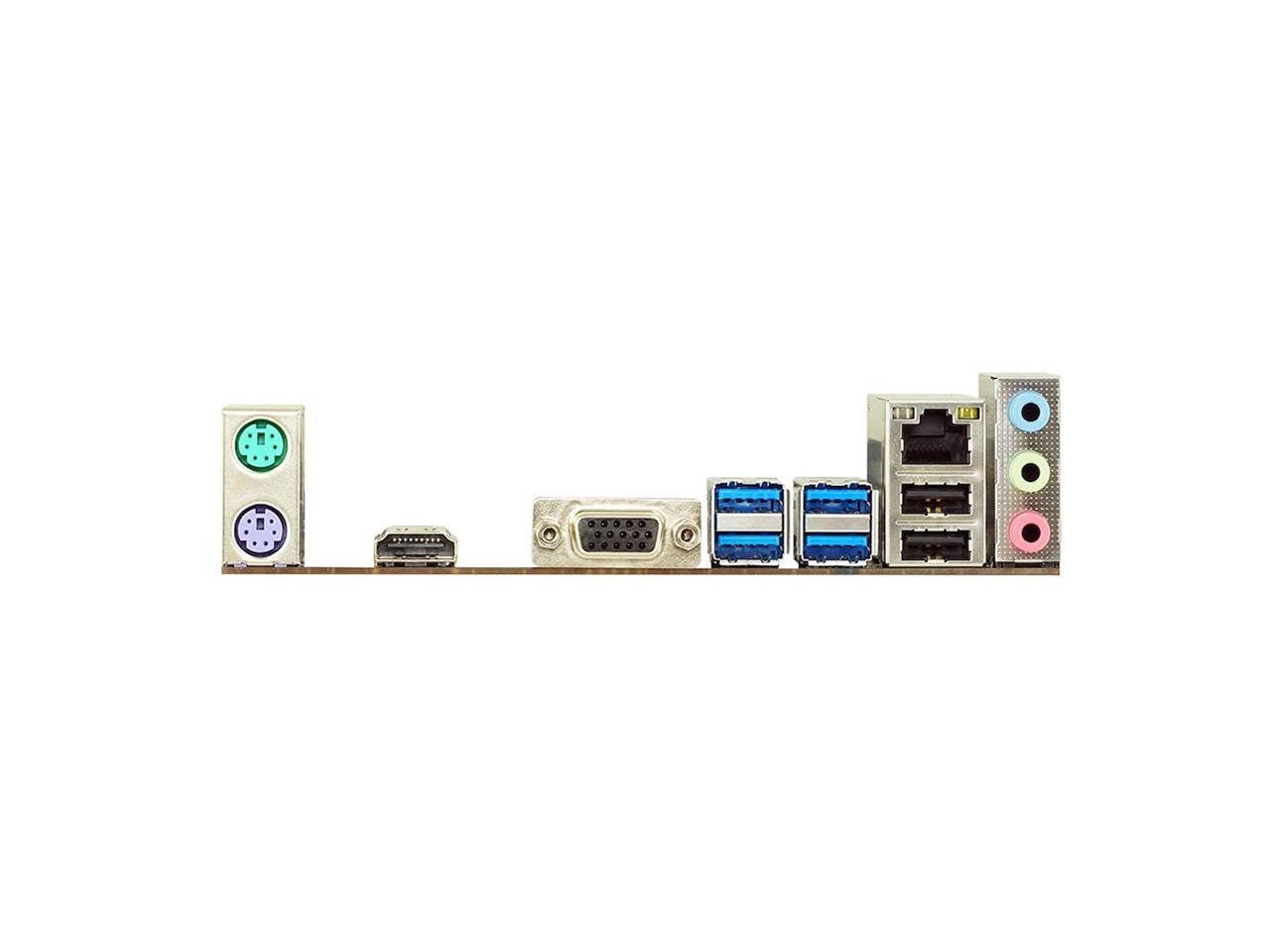

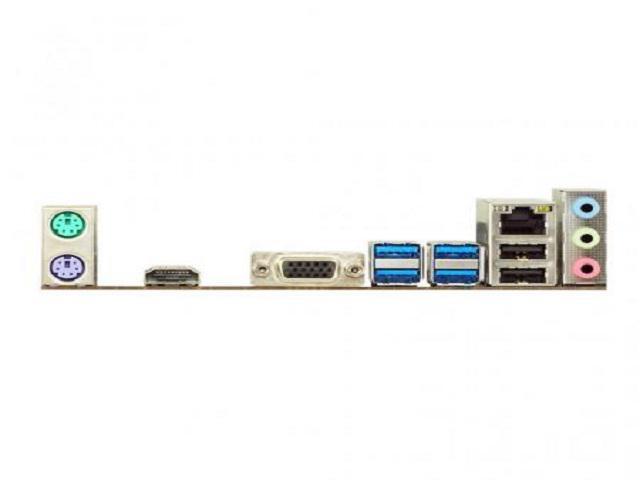

Backplane I/O interface 1 x PS/2 keyboard
1 x PS/2 mouse
2 x USB 2.0 ports
4 x USB 3.1 ports
1 x VGA port
1 x HDMI port
1 x onboard network card socket
3 x audio interface
Onboard I/O interface 2 x USB2.0 connector
1 x USB 3.1 (Gen1) connector
4 x SATA3 6Gb/s ports
1 x front audio connector
1 x front panel connector
1 x CPU fan header
2 x system fan header
1 x serial connector
2 x 6-PIN PCIe power supply interface
Hardware monitoring and protection CPU/ system temperature monitoring
CPU/system fan speed monitoring
Smart/manual CPU fan control
System voltage monitoring
Motherboard specifications ATX architecture, size: 30.5cm x 21.0cm (W x L)
Operating System Support Microsoft® Windows® 10 (64bit)
Linux, ethOS Mining OS, etc.
Accessory 2 x SATA data cable
1 x Chassis I/O baffle
1 x Driver CD
1 x User Manual
Product features PCI-E slot device detection screen
