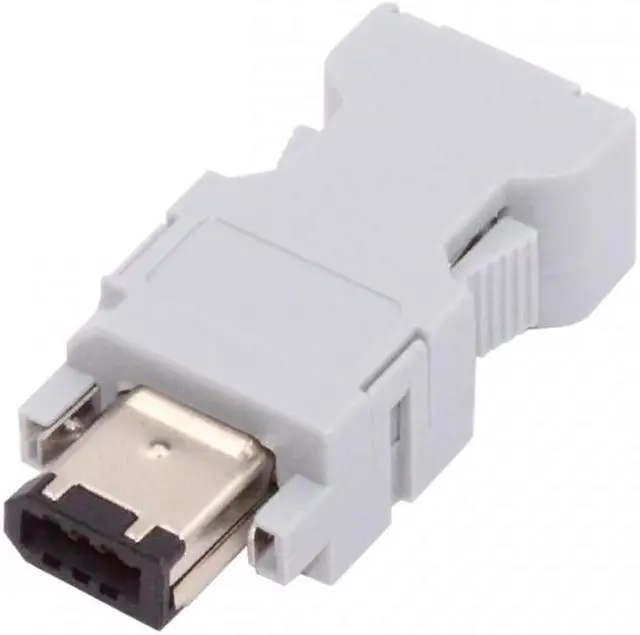

Xiwai SM-6P I/O Connector IEEE 1394 6Pin CN3 Plug 55100-0670 Male JZSP-CMP9-1-E Compatible with Yaskawa Panasonic Servo 54280-0609
- SM-6P I/O Connector IEEE 1394 6Pin CN3 Plug 55100-0670 Male JZSP-CMP9-1-E Compatible with Yaskawa Panasonic Servo 54280-0609
- Solder Wire Connector, Server 6 Pole Encoder male CN3, compatiable for servo Device Connection
- Universal suitable for Yask-awa JZSP-CMP9-1, for Molex 55100-0670, for 3M 3E206-0100KV/3E306-3200-008, for Panaso-nic WSK-P06P-M, etc.

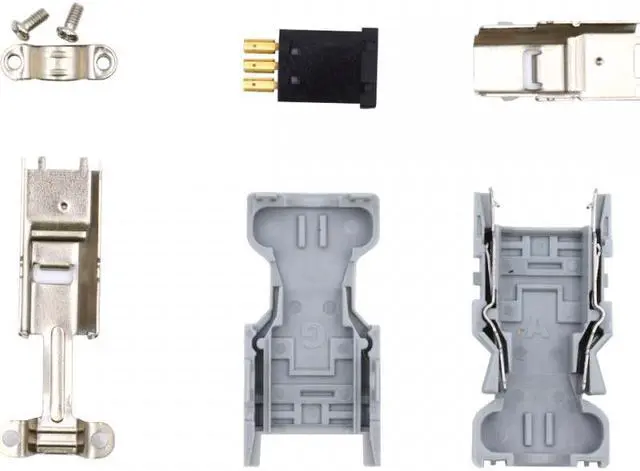

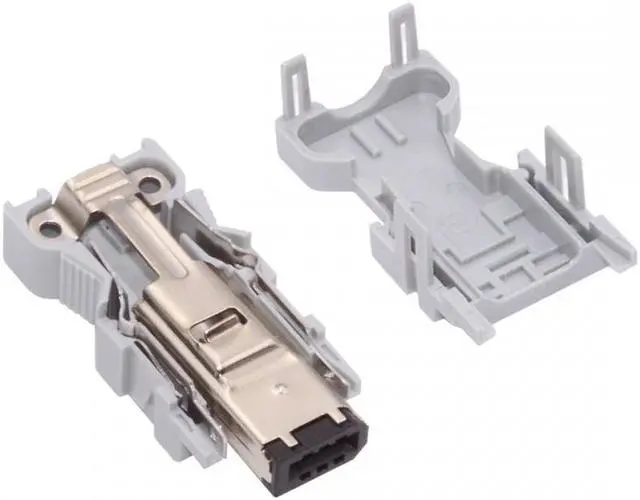

- Connector: 6-pin male. Copper alloy Shell & PBT Insulator,Contact Copper alloy & Gold plating.
- Convenient, designed for ease of use,Durable single-piece molded construction.Virtually indestructable.
- 1pc connector in the package.

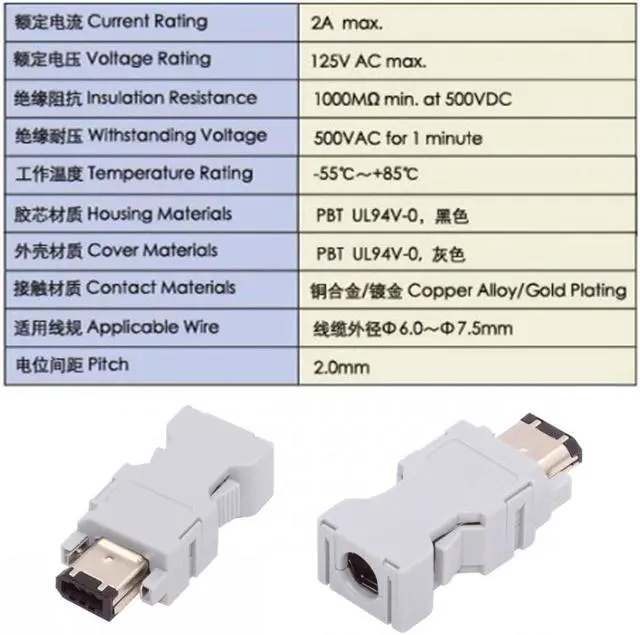

- Specification:
- Rated current: 2A
- Max Contact resistance: 30mΩ
- Max Insulation resistance: 1000MΩ
- Minimum Withstand voltage: 500V DV (1 minute)
- Temperature range: -55?~ +105?br />
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
SM-6P I/O Connector IEEE 1394 6Pin CN3 Plug 55100-0670 Male JZSP-CMP9-1-E Compatible with Yaskawa Panasonic Servo 54280-0609
Solder Wire Connector, Server 6 Pole Encoder male CN3, compatiable for servo Device Connection
Universal suitable for Yask-awa JZSP-CMP9-1, for Molex 55100-0670, for 3M 3E206-0100KV/3E306-3200-008, for Panaso-nic WSK-P06P-M, etc.
Connector: 6-pin male. Copper alloy Shell & PBT Insulator, Contact Copper alloy & Gold plating.
Convenient, designed for ease of use, Durable single-piece molded construction. Virtually indestructable.
1pc connector in the package.
Specification:
Rated current: 2A
Max Contact resistance: 30mΩ
Max Insulation resistance: 1000MΩ
Minimum Withstand voltage: 500V DV (1 minute)
Temperature range: -55? ~ +105? br />
Solder Wire Connector, Server 6 Pole Encoder male CN3, compatiable for servo Device Connection
Universal suitable for Yask-awa JZSP-CMP9-1, for Molex 55100-0670, for 3M 3E206-0100KV/3E306-3200-008, for Panaso-nic WSK-P06P-M, etc.
Connector: 6-pin male. Copper alloy Shell & PBT Insulator, Contact Copper alloy & Gold plating.
Convenient, designed for ease of use, Durable single-piece molded construction. Virtually indestructable.
1pc connector in the package.
Specification:
Rated current: 2A
Max Contact resistance: 30mΩ
Max Insulation resistance: 1000MΩ
Minimum Withstand voltage: 500V DV (1 minute)
Temperature range: -55? ~ +105? br />
