? Motherboard: Super X9DRH-7F
? Processor: Dual LGA2011
? Supports Intel Xeon E5-2600 Series Processors
? Cache up to 20MB
? QPI up to 8 GT/s
? Chipset: Intel C602
? Memory: 16x 240pin DDR3-1600/1333/1066/800 DIMM Slots; Supports up to 512GB ECC/REG Memory or up to 192GB ECC/Unbuffered Memory
? Slots: 1x PCI-Express 3.0 x16 Slot, 6x PCI-Express 3.0 x8 Slots
? SATA: 8x SATA2 Ports, 2x SATA3 Ports; Support RAID 0, 1, 5, 10
? SAS: 8x SAS2 Ports; Support RAID 0, 1, 5, 6, 10, 50, 60
? Video: G200 (Nuvoton WPCM450 BMC) Graphics Controller
? LAN: Intel i350 Dual Port Gigabit Ethernet Controller; 1x Realtek RTL8201N PHY (dedicated IPMI)
? Drive Bays: 8x Hot-swap 3.5" SAS2/SATA Drive Trays, 2x 5.25" Peripheral Drive Bays, 1x 5.25" Peripheral Drive Bay (fits 3.5" bay devices)
? Backplane: SAS/SATA Hard Drive Backplane w/ AMI MG9072
? Ports: 7x USB 2.0 Ports (4 rear, 2 via header, 1 Type A), 1x VGA Port, 2x Serial Ports, 2x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN Port

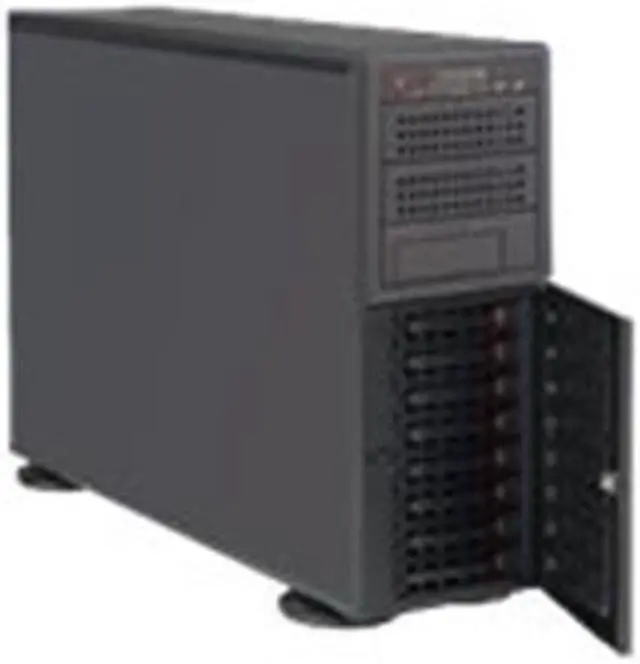

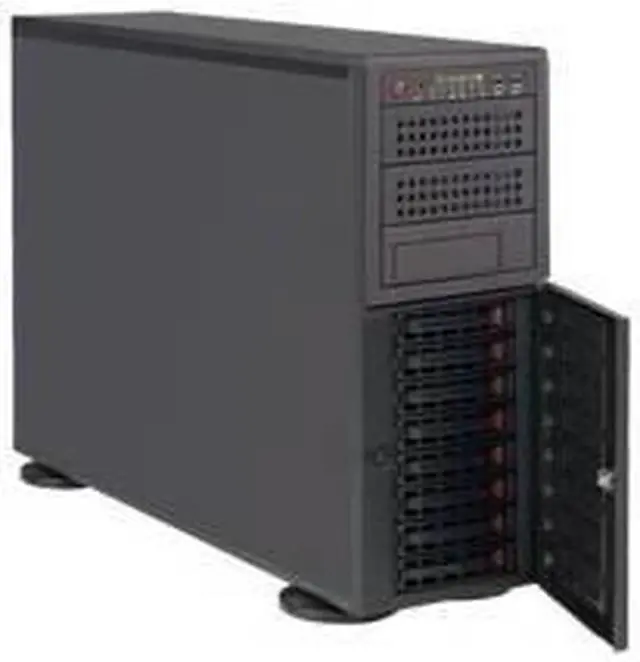

? Form Factor: 4U Rackmount / Tower
? Power Supply: 920W 80 PLUS Platinum Certified High-efficiency (94%+) AC-DC Redundant Power Supplies w/ PMBus and I2C
? System Cooling: 3x 5000 RPM Hot-swap PWM Cooling Fans, 2x 5000 RPM Hot-swap Rear Exhaust PWM Fans
? Color: Black
? Dimensions (WxDxH): 7.0 x 25.5 x 17.2 inch / 178.0 x 648.0 x 437.0 mm
? RoHS Compliant
