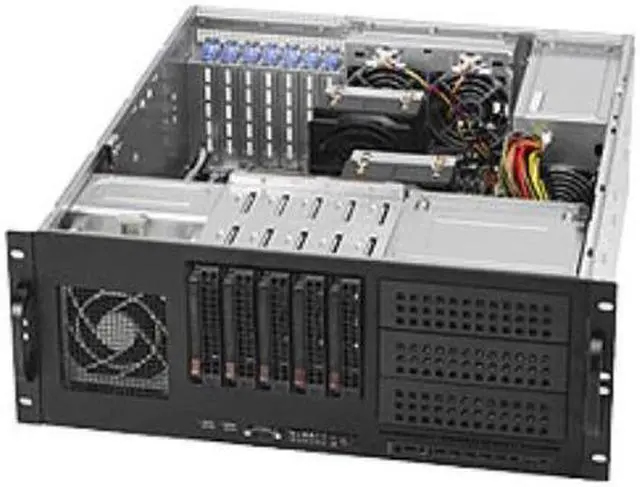

Supermicro SC842TQC-903B 4U Rackmount Chassis 5 x 3.5-in SAS Hot-Swap 900W E-ATX/ATX/MicroATX

CSE-842TQC-903B
SuperChassis

Form Factor

4U rackmount chassis - supports for maximum motherboard sizes: 12" x 13" E-ATX/ATX/MicroATX

Processor Support

Dual and Single Intel® and AMD processors

Dimensions

Height
7" (178 mm)
Width
17.2" (437 mm)
Depth
20.5" (521 mm)
Net Weight
36 lbs (16.33 kg)
Gross Weight
46 lbs (20.87 kg)
Packaging (W x H x L)
25.6" (650 mm) x 13.5" (343 mm) x 29" (737 mm)
Available Color
Black

Expansion Slots

7 full-height & full-length expansion slot(s)

Drive Bays

5 x 3.5" hot-swap SAS/SATA

Backplane

4U 5-Port Backplane Supports 5x3.5" SAS3/SATA3 HDD/SSD for X11 Platform,HF,RoHS

Peripheral Drives

3 x standard 5.25" drive bay
Optional 1 x slim DVD-ROM drive bay

Front Panel

Buttons
Power On/Off button
System Reset Button
LEDs
2 Network Activity LEDs
Fan Fail/System Over Heat LED
HDD activity LED
Power Status LED
Ports
2x USB 3.0 Port(s)
Systems Cooling

Fans
1 x 9cm hot-swap cooling fan(s)
Front, 5K RPM
2 x 8cm hot-swap redundant PWM cooling fan(s)
Rear, 9.4K RPM

System Monitoring

Chassis intrusion switch

Operating Environment (System)

Operating Temperature Range
5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range
-40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
8% - 90% (non-condensing)
Non-Operating Relative Humidity Range
5% - 95% (non-condensing)

Power Supply
PS2/ATX Multi-Output Power Supply with redundant cooling fan and SMBus
Power Efficiency
88%
Total Output Power and Input
900W with Input 100 - 240Vac
AC Input Frequency
50-60Hz
Dimensions (L x W x H)
185 x 150 x 86 mm
Output Type
24pin ATX
-12V
Max: 1A / Min: 0A
+12V
Max: 70A / Min: 1A (100Vac - 240Vac)
+5V
Max: 30A / Min: 0.3A
+3.3V
Max: 30A / Min: 0.3A
+5Vsb
Max: 6.5A / Min: 0A
+12Vsb
Max: NAA
Certification
80 Plus Certified Certified

Regulatory (Power Supply)

Power Supply Safety / EMC
BSMI
CCC
CE/EMC
FCC class B
TUV/CB
UL/CUL
