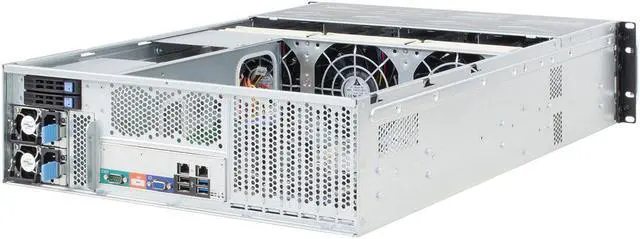

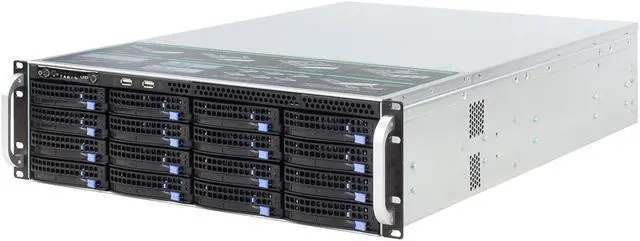

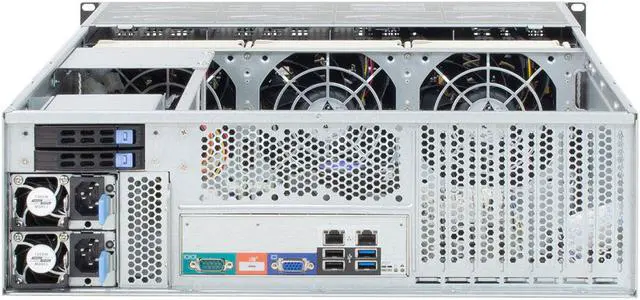

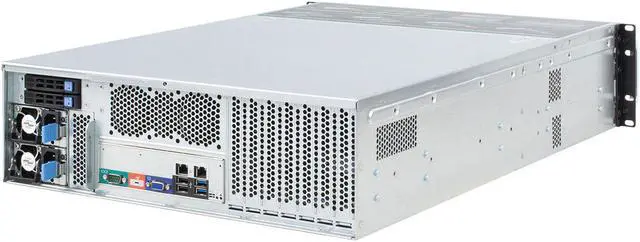

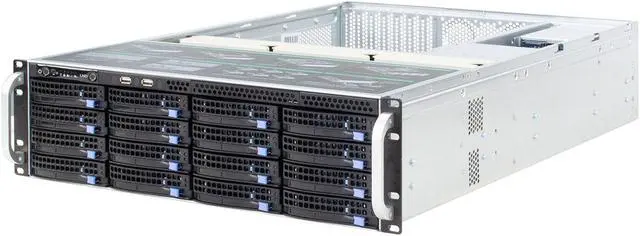

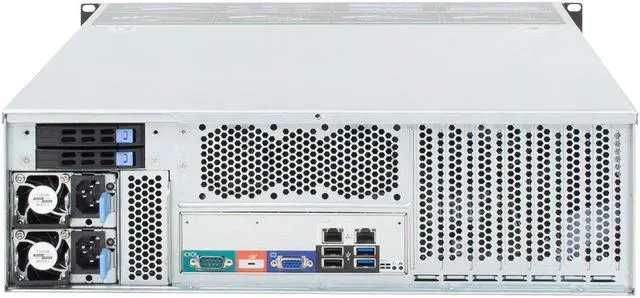

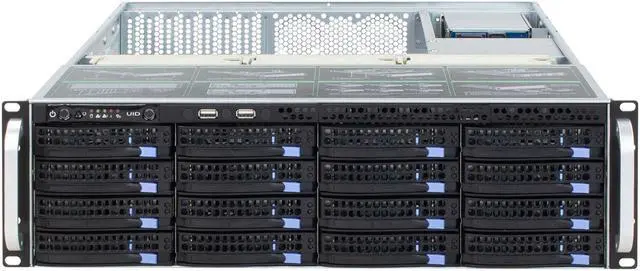

3U hot-swap server chassis / equipped with 6Gb / s Expander expansion backplane, Mini-sas interface (SFF8087), with temperature control, with SGPIO, with time-sharing boot / empty chassis
- Chassis size: depth 560mm × width 437.5mm × height 132mm
- Material: environmental protection, fingerprint resistance 1.0mm SGCC
- Hard disk: 16 front 3.5 "HDD (compatible with 2.5" HDD / SSD), 3 built-in 2.5 "HDD / SSD;
- The hard disk extraction box adopts anti-EMI design, with a light guide column, which can indicate the working state of the hard disk; slide rail design, smooth extraction
- Motherboard size: 12 "× 10.5" and below standard motherboard
- Backplane specifications: 6Gb / s Expander expansion backplane, Mini-sas interface (SFF8087), with temperature control, with SGPIO, with time-sharing start
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
USB type: 2 * USB 2.0
Rear expansion slot direction: 7 full-height PCI / PCIE expansion slots, vertical insertion
Fan specifications: three 12 cm fan positions, three 12038B ball fans are standard, hot-swappable
Power specifications: compatible with standard 2U power supply and CRPS redundant power supply with a length of 240mm and below
System control: Power LED * 1, Reset * 1 Power SW * 1, HDD LED * 1 NIC LED * 2 * 1, UID LED * 1 UID SW * 1, OH / FAN Fail LED * 1 Power Fail LED * 1
Upper cover snap button: yes, tool-free disassembly
Application areas: cloud storage, cloud computing, big data, security monitoring and other fields
Rear expansion slot direction: 7 full-height PCI / PCIE expansion slots, vertical insertion
Fan specifications: three 12 cm fan positions, three 12038B ball fans are standard, hot-swappable
Power specifications: compatible with standard 2U power supply and CRPS redundant power supply with a length of 240mm and below
System control: Power LED * 1, Reset * 1 Power SW * 1, HDD LED * 1 NIC LED * 2 * 1, UID LED * 1 UID SW * 1, OH / FAN Fail LED * 1 Power Fail LED * 1
Upper cover snap button: yes, tool-free disassembly
Application areas: cloud storage, cloud computing, big data, security monitoring and other fields
