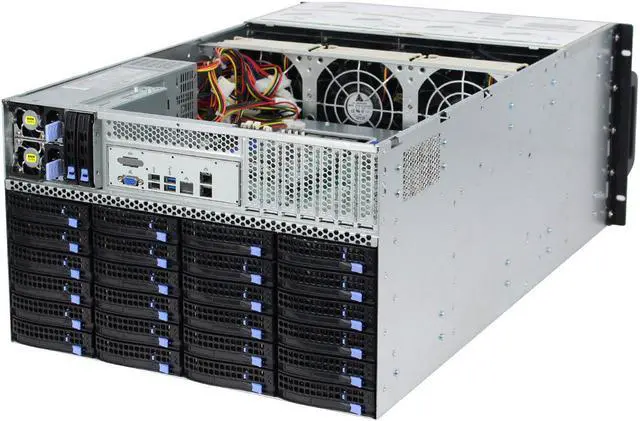

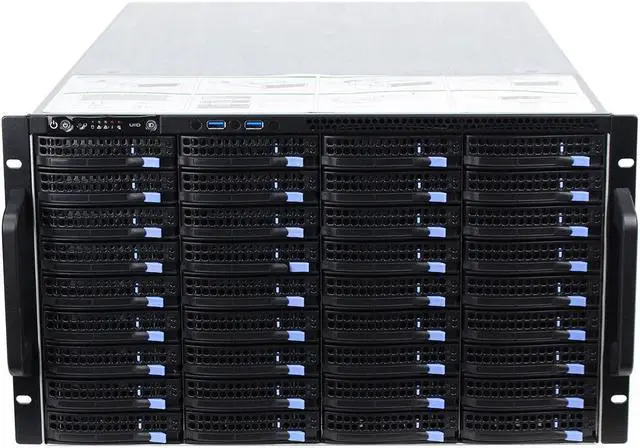

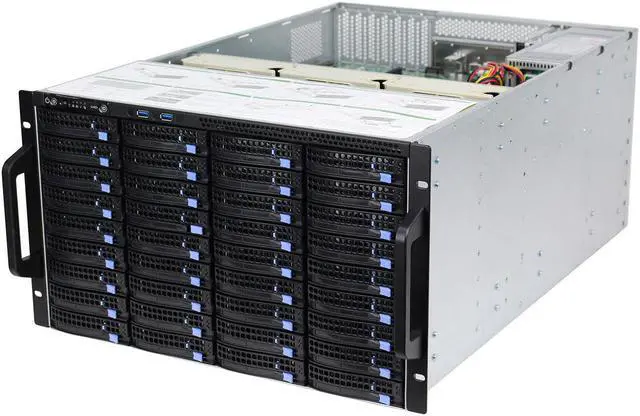

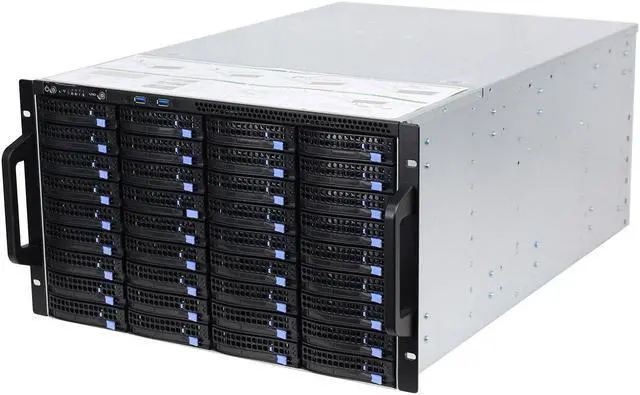

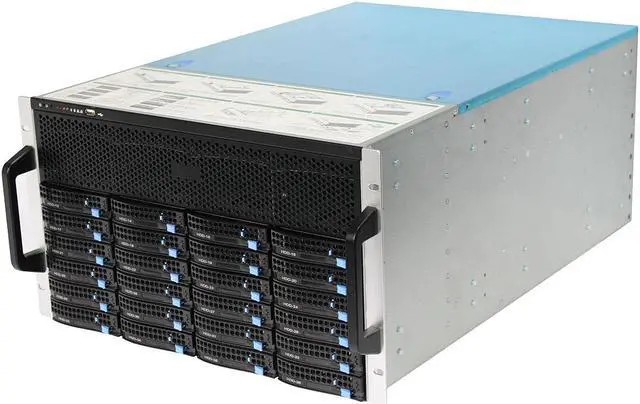

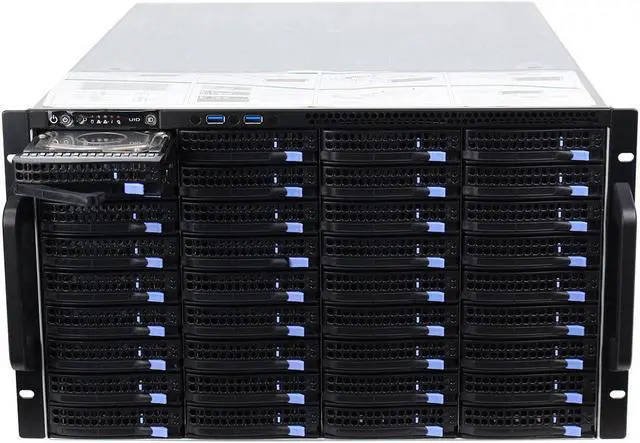

6U Rackmount Hotswap server Case 60 drawer Storage Server Chassis 60 hard drive box 12GB extended backplane storage server chassis IPFS empty chassis
- Dimensions (mm): depth 650mm × width 437.5mm × height 265mm, standard rack server chassis
- Material: Environmental protection, fingerprint resistant 1.0mm SGCC
- HDD and FDD slots: 60 3.5" hot-swappable hard drive slots, 2 built-in 2.5" hard drive slots
- Fan position: 3 12038 ball fans, 4 8038 ball fans, high speed, high air pressure, high air volume, hot swappable
- Hard disk drawer box: Anti-EMI design, compatible with 2.5"/3.5" hard disks, with light guide, can indicate the working status of the hard disk, optional with lock function
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Hard disk backplane: 12Gb/s Expander expansion backplane, Mini-sas HD interface (SFF8643)
Optional 6Gb/s Expander expansion backplane, Mini-sas interface (SFF8087), with temperature control, with SGPIO and time-sharing start function;
Suitable for motherboards: Support E-ATX motherboards and various motherboards with sizes of 12"*13" and below
System control: Power SW*1, Reset*1, PowerLED*1, HDD LED*1, NID LED*2, USB 2.0 *1
Power supply: standard 2U power supply and redundant power supply
Expansion slots: 7 half-height PCI/PCIE expansion slots
Slide: Three-section ball slide or simple slide
Application areas: cloud storage, cloud computing, big data, security monitoring and other fields
Components Specification
Dimensions (mm) 437.5 mm x 650mm x 265mm, standard 19" rackmount chassis.
Materials 1.0 mm SGCC Zinc-Coated Steel.
Backplane 6Gb/s Expander backplane, with temperature control chipset. / 12Gb/s Expander backplane, with temperature control chipset.
Drivers bay 60X 3.5" hot-swap Sata/Sas drive bays, 2X 2.5" drive bays.
Cooling Fan 6X12038 hot-swap fans.
PSU form factor CRPS power supply.
M/B form factor MAX supports to 13.68" x13"(EE-ATX) motherboard.
Epansion space 7 half-height PCI/PCIE expansion slots.
Connector Two front accessible USB 2.0 ports(Optional USB 3.0 ).
System Control
Power LED*1, Reset*1, Power SW*1, HDD LED*1, NIC LED*2, UID LED*1, UID SW*1, OH/FAN Fail LED*1, Power Fail LED*1.
Applicarion
Cloud storage, cloud computing, big data, security monitoring, LOTetc.
Product Features:
1. Conformed with EMC design standard to prevent from electromagnetic interference.
2. Support motherboard size up to 13.68" x13", and 60* 3.5"HDD bays, CRPS power supply.
3. The chassis has good ventilation system 6X12038 hot-swap fans. to make sure the system work steadily.
Optional 6Gb/s Expander expansion backplane, Mini-sas interface (SFF8087), with temperature control, with SGPIO and time-sharing start function;
Suitable for motherboards: Support E-ATX motherboards and various motherboards with sizes of 12"*13" and below
System control: Power SW*1, Reset*1, PowerLED*1, HDD LED*1, NID LED*2, USB 2.0 *1
Power supply: standard 2U power supply and redundant power supply
Expansion slots: 7 half-height PCI/PCIE expansion slots
Slide: Three-section ball slide or simple slide
Application areas: cloud storage, cloud computing, big data, security monitoring and other fields
Components Specification
Dimensions (mm) 437.5 mm x 650mm x 265mm, standard 19" rackmount chassis.
Materials 1.0 mm SGCC Zinc-Coated Steel.
Backplane 6Gb/s Expander backplane, with temperature control chipset. / 12Gb/s Expander backplane, with temperature control chipset.
Drivers bay 60X 3.5" hot-swap Sata/Sas drive bays, 2X 2.5" drive bays.
Cooling Fan 6X12038 hot-swap fans.
PSU form factor CRPS power supply.
M/B form factor MAX supports to 13.68" x13"(EE-ATX) motherboard.
Epansion space 7 half-height PCI/PCIE expansion slots.
Connector Two front accessible USB 2.0 ports(Optional USB 3.0 ).
System Control
Power LED*1, Reset*1, Power SW*1, HDD LED*1, NIC LED*2, UID LED*1, UID SW*1, OH/FAN Fail LED*1, Power Fail LED*1.
Applicarion
Cloud storage, cloud computing, big data, security monitoring, LOTetc.
Product Features:
1. Conformed with EMC design standard to prevent from electromagnetic interference.
2. Support motherboard size up to 13.68" x13", and 60* 3.5"HDD bays, CRPS power supply.
3. The chassis has good ventilation system 6X12038 hot-swap fans. to make sure the system work steadily.
