Oscilloscope Multimeter Signal Generator Digital Lab Oscilloscopes, 500MS/S Sampling Rate, 110MHz Bandwidth, 1KHz/3.3V Calibration Square Wave Osciloscopio Automotriz
- Compact DesignOur LED oscilloscope is light and small, small waist shell design, excellent hand feeling, easy to carry and simple operation. Wide range of applications for home applicance testing, car diagnosis, research education, product development, mains measurement.

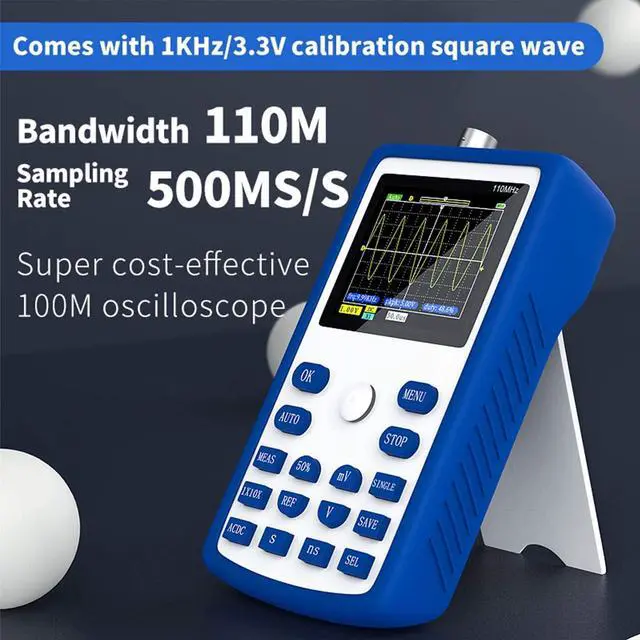

- Measurement Response FreelyOur handheld oscilloscope multimeter has 110MHz brandwidth, 500MS/S sampling rate and ±400w measuring voltage. 14 kinds of waveform measurement, sinewave, squarewave, trianglewave, CMOSwave, halfwave, fullwave, stepwave, trapezoidalwave, noisewave, exponential rise and fall, logarithmic rise and fall, cinke pulsewave, multi-audio, lorentz.

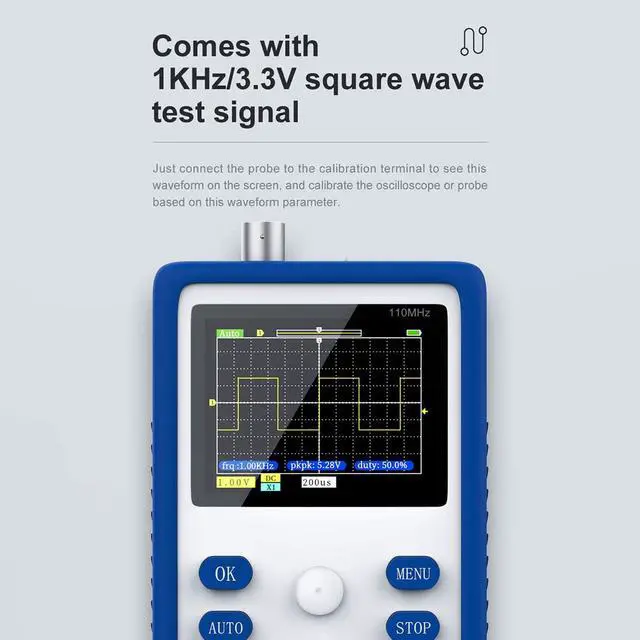

- FFGA+ADC(MCU) DesignOur LCD portable digital oscilloscope kit adpots FFGA+ADC(MCU) design scheme, which has more stable performance and higher accurancy. Just connect the probe to the calibration terminal to see this waveform on the screen, and calibrate the oscilloscope or probe based on this waveform parameter.
- High-quality MaterialsOur 2 chan
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specifications:
Material: ABS
Color: blue+white
Channel coupling: AC/DC
Time base range: 5ns-10s
Single trigger: support
Numbers of channels: 1

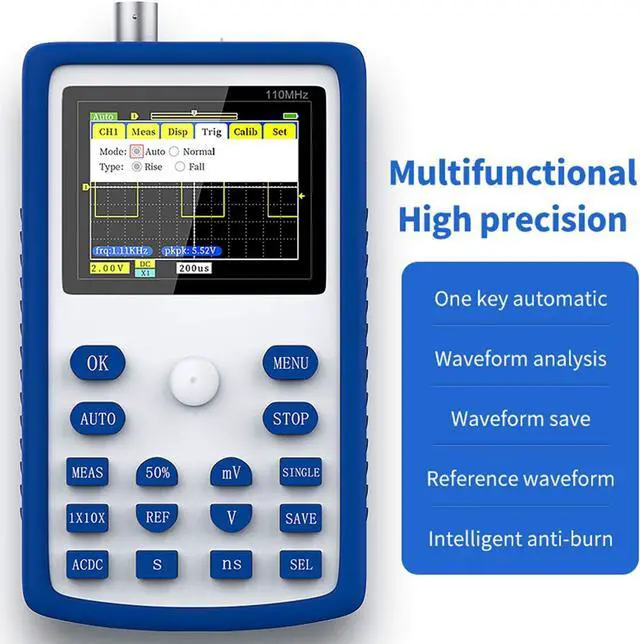

One key automatic: support
Vertical sensetivity: 20mV/div-100V/div
50%/back to middle: support
Screen size: 2.4inch
Waveform measurement: 14 types
Trigger mode: auto/normal/single
Operation mode: button+joystick
Screen resolution: 320 * 240
Measurement accurancy: ±2%
Trigger type: rising edge/falling edge

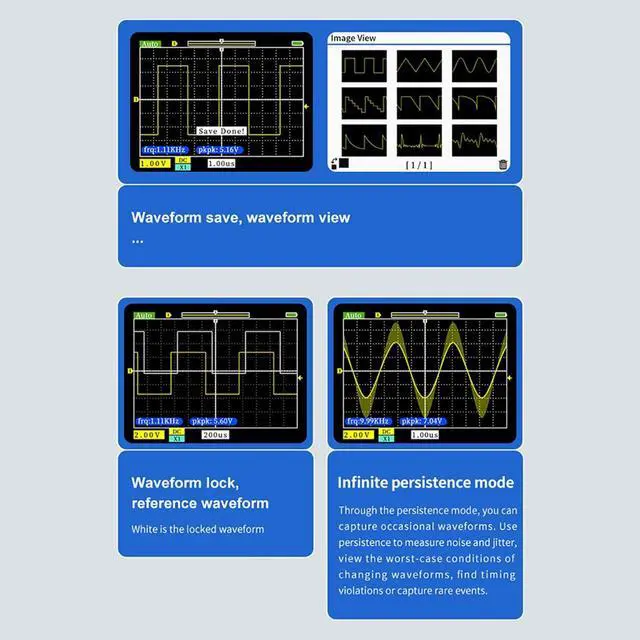

Waveform analysis: support drag/expand
Analog brandwidth: 110M
Reference waveform: support
Display mode: YT/scroll

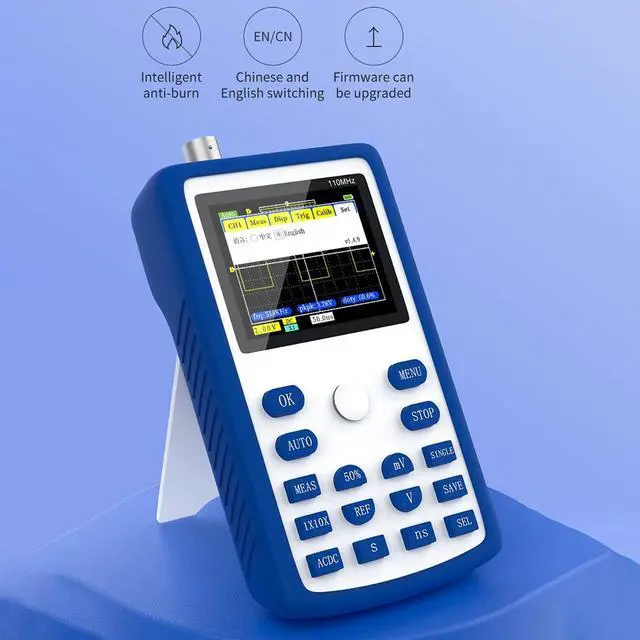

Language: Chinese/English
Sampling rate: 500M
Waveform save: support
Afterglow time: none/1s/
Rise time: <3ns
Frequency accurancy: ±0.01%
Charging method: 5V/800mA
Battery: 1 * lithium battery,3000mAh
Storage depth: 12kpts
Input resistance: 1M
Voltage measurement range: ±40V(*1 file), ±400V(*10 file)
Item size: 130 * 76 * 27mm / 5.1 * 3.0 * 1.1in
Package size: 134 * 94 * 56mm / 5.3 * 3.7 * 2.2in
Package weight: 340g / 12.0ounce

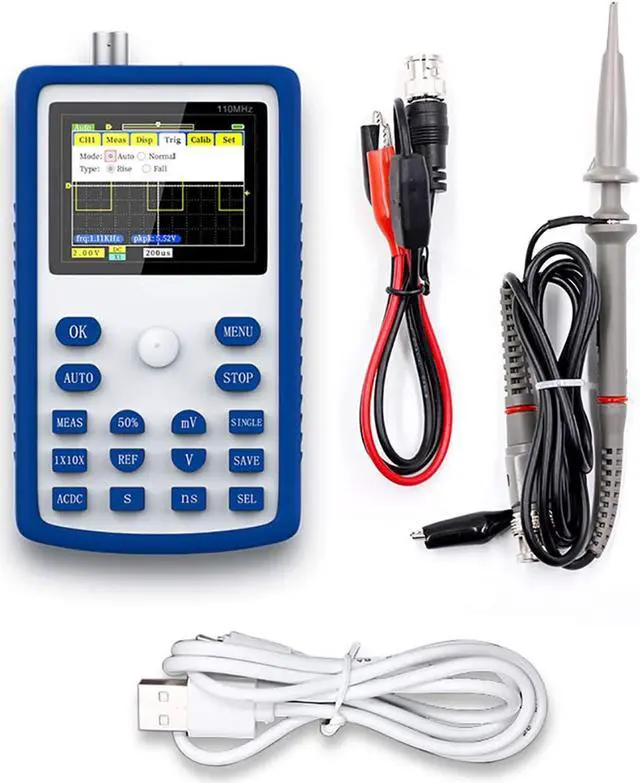

Packing List:
1 * Oscilloscope
1 * High Voltage Probe
1 * Allgator Clip Probe
1 * Data Cable
1 * User Manual
