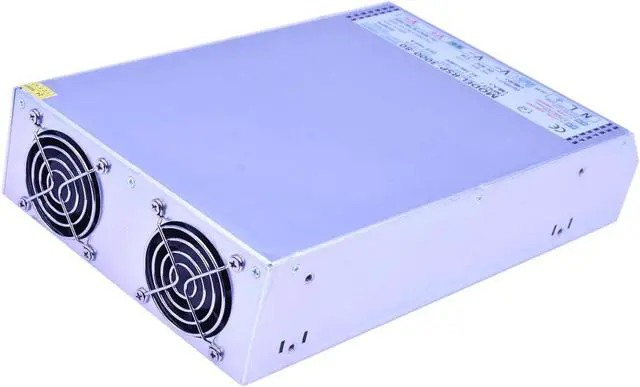

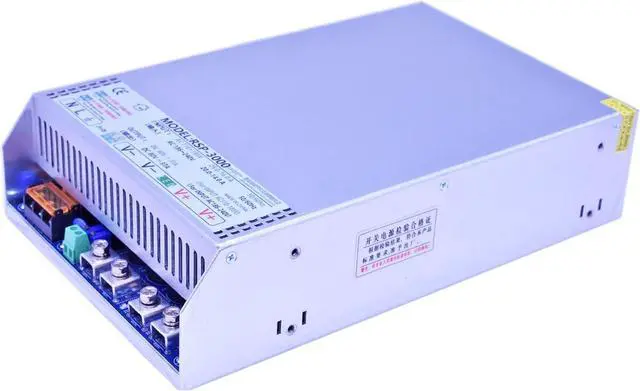

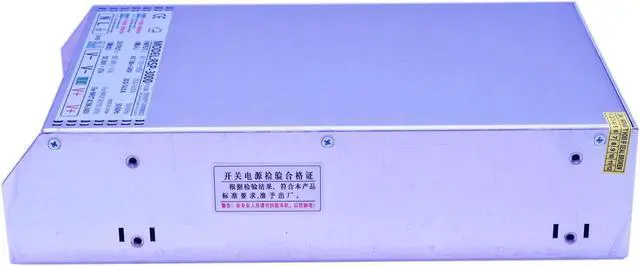

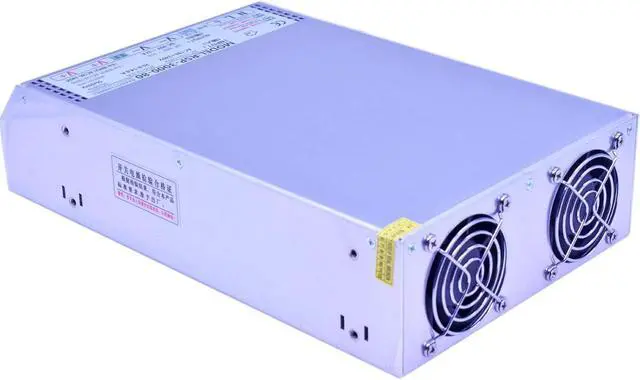

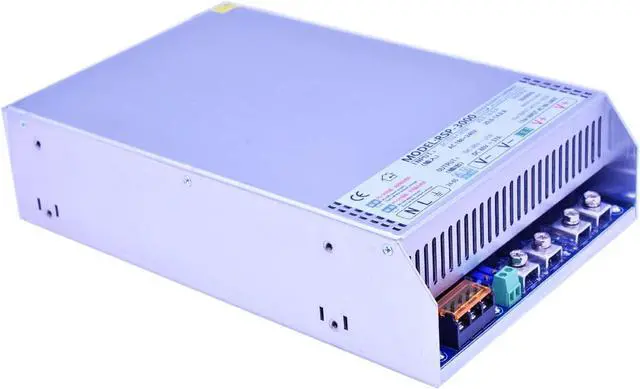

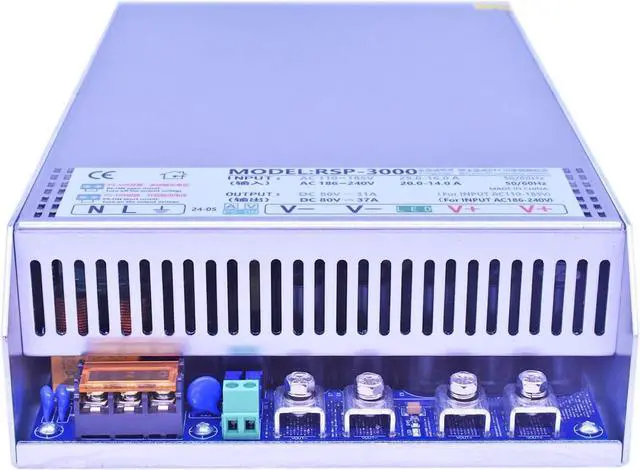

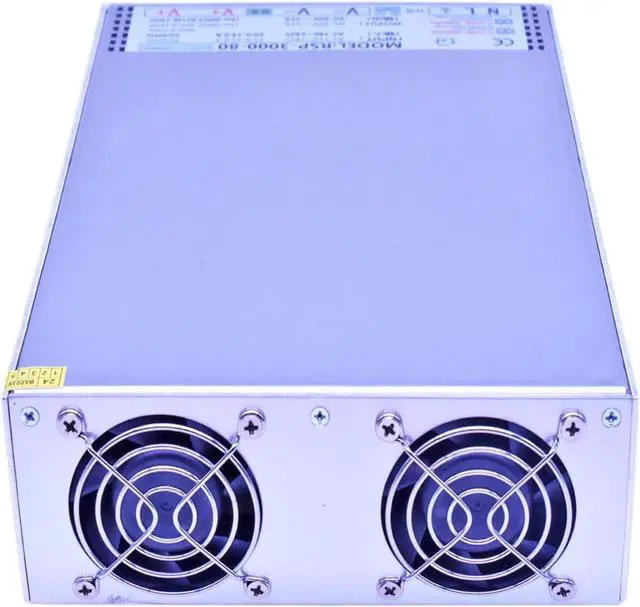

RSP-3000 Switching Power Supply with Active PFC Function Power 3000W 0~48V 24V 150V 300V 500V 110-240VAC to DC Power Supply for Industrial quipment (DC 24V, AC100V~145V2500W), 2500W~3000W
- Model and brand & size: LOHODIZI ,24V~500V 2500W/3000W or other models, 2.8kg ,280x175x65mm(L*W*H). Enclosed Power Supply Single Output with PFC Function 0~500V adjustable Voltage optional...
- Input Voltage Range: AC 100 ~145V or AC 200 ~245V,Choose the proper voltage before usebefore using, to avoid damaging.
- Protection: Shortage Protection,Overload Protection,Over-voltage Protection ,Over heat protection,Over/under voltage.
- Make sure your device match the 48V 24V 36V 60V 72V 110V 150V 220V 250V 300V 400V 500V or others voltage ,Please don't run it overload .The max use should be no more than 85% of the full loads,otherwise, It's cause the power supply to overheat,the service life of the power supply will be greatly shortened.
- Switching Power Supply 3000w With PFC Active Power Factor Correction Function,Constant Voltage Constant Curren Hight 0~500V voltage selection Optional ...
- LOHODIZI store: OEM factory competency, Most efficient technical support with superb processing techno
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
DC Output : DC Voltage: 48V 24V 28V 36V 60V 72V 80V 110V 130V 150V 220V 250V 300V 400V / 500V... ( 2500W~3000W )... DC Current : 24V125A/ 28V107A / 36V83A / 48V62.5A / 60V50A / 72V41.5A / 110V27A / 160V18.75A / 220V13.6A / 250V12A / 300V10A / 400V7.5A / 500V6A ... There are many series models, please consult our customer service. Thank you . Ripple & Noise: 480MV Size : 280X175X65mm . DC Adjustable Range: 0~500V or other Rated Voltage . Voltage Tolerance: ±2.0% . Line Regulation: ±0.5% . Load Regulation: ±1% . Setup,Rise Time,Hold Up Time:200ms,50ms, 20ms/230VAC . AC Input AC Voltage Range: 85-264VAC . Frequency Range: 47-63Hz . Efficiency:90% Leakage Current<0.5mA /240VAC . Protection Over-load: 105%-150% hiccup mode,Auto-recovery . Over-voltage: 115%-135% Cut Off the Output,Auto-recovery . Over-temp. : Shut down O/P voltage, Auto-recovery . Environment Working temp.: -10~ +60C° (Refer to output load derating curve) . Working Humidity:20 ~ 90% RH, non-condensing . Storage Temp.: -10~ +60C° . Storage Humidity: 10 ~ 95% RH . Safety Isolation Resistance:I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC / 25C°/ 70% RH . Withstand Voltage: I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC . Safety standards: CE,RoHS and others / Customized according to customer requirements, please consult us for details ...
