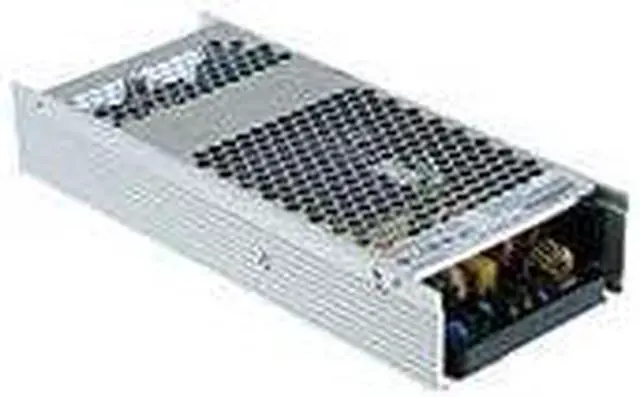

MeanWell UHP-750 750W Slim Type with PFC Switching Power Supply UHP-750 (1 PCS, UHP-750-12)
- Universal AC input / Full range
- Withstand 300 VAC surge input for 5 seconds
- Slim width and low profile (41mm)
- Built-in active PFC fuction
- Fanless design
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
UHP-750series is a 750W single-output slim type power supply with 41mm of low profile design. Adopting the full range 90~264VAC input, the entire series provides an output voltage line of 12V, 24V,36V and 48V. In addition to the high efficiency up to 95%, that the whole series operates from -30 ~ 70 under air convection without fan. UHP-750 has the complete protection functions and 5G anti-vibration capability; It is complied with the international safety regulations such as TUV EN62368-1 and UL62368-1. and design refers to EN61558-1 and EN60335-1.
