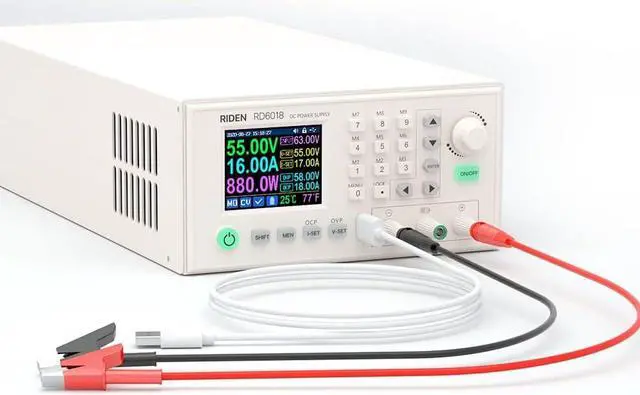

RD RD6018 DC Power Supply Variable Adjustable Lab Bench Power Supply Buck Converter Step Down Switching Regulated 4-Digital LCD Display 60V 18A 1080W

This is RD6018 assembled set, it can output 60V or 18A separately , but it cannot full output 1080W, under 110V AC voltage, you can get 950W max at RD6018 output.

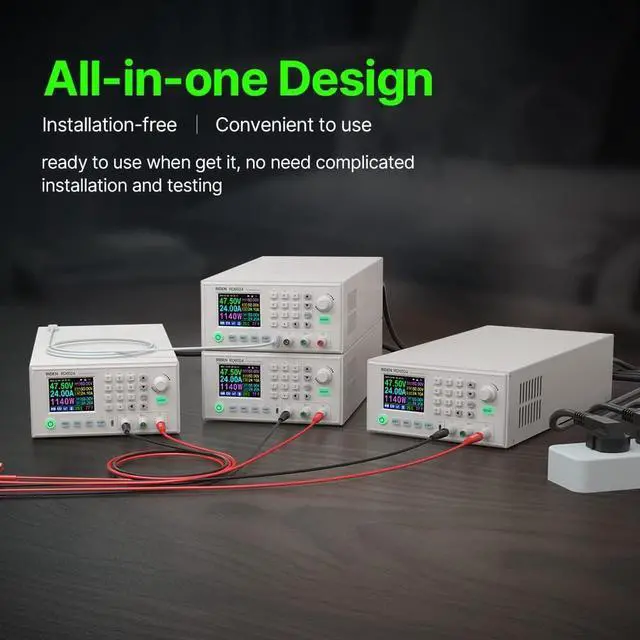

This is RD6018 assembled set, not need you to assemble, and it is set to 100-120V AC input.

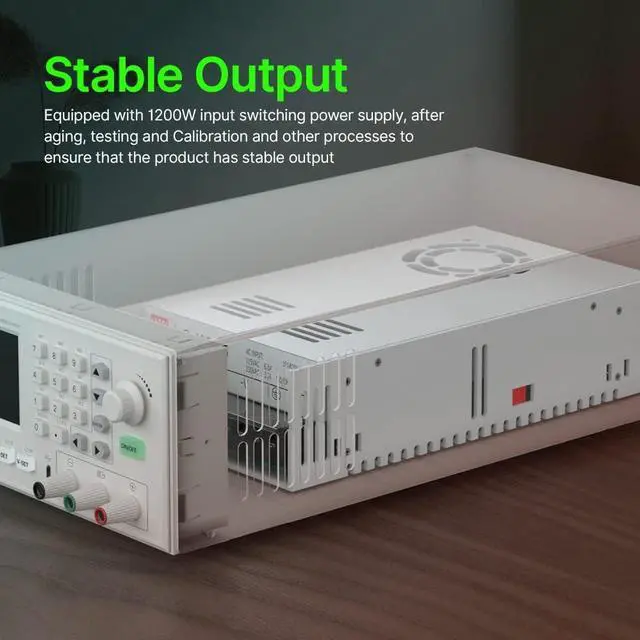

Housing + RD6018W + Power supply ( 68V 17.6A1200W)+18A Output power cord Already assembled---Without input power cord---
Specifications:
Material: ABS Color: white
Display screen: 2.4 inch color LCD display
Output voltage current range: 0-60V0-18.000A)(1080W Max)
Output voltage current measurement resolution: 0.01V 0.001A
Output power range: 1080W @ 230V950W@ 120V
Battery voltage measurement resolution: 0.01V
Output voltage current accuracy: ±(0.3%+3 digits) ±(0.5%+5 digits)
Battery voltage measurement accuracy: ±(0.5%+3 digits)

Output ripple typical: 100mV VPP
Constant voltage mode response time: 2ms(0.1A-5A load)
External sensor temperature detection range: -10~100/0~200
External sensor temperature detection accuracy: ± 3/ ± 6
Constant voltage current mode load adjustment rate : ±(0.1%+2 digits)±(0.1%+3 digits)
Capacity measurement measurement range: 0-9999.99Ah 0-9999.99Wh

Screen brightness setting: 0-5 level total 6 levels
Capacity and energy statistical error: ±2%
Working mode: buck mode voltage drop >1V and >10%
Working temperature range: -10~40
Power supply size: 330 * 170 * 95mm / 13.05 * 6.7 * 3.75in
Package size: 380 * 235 * 150mm / 15 * 9.25 * 5.9in
Package weight: RD6018 3KG / 6.6lb

You can use this device to charge battery, but you need to use the Green-Black terminal to do that, because we set protection function at the battery charging terminal so that even you connect in the wrong way, the device will not be damaged
You can set the display style to traditional mode, curve mode or detailed mode, just press the left or right direction button and it is ok
You can set each parameter with the color you like, just need to active the custom color option, then the modification will be applied

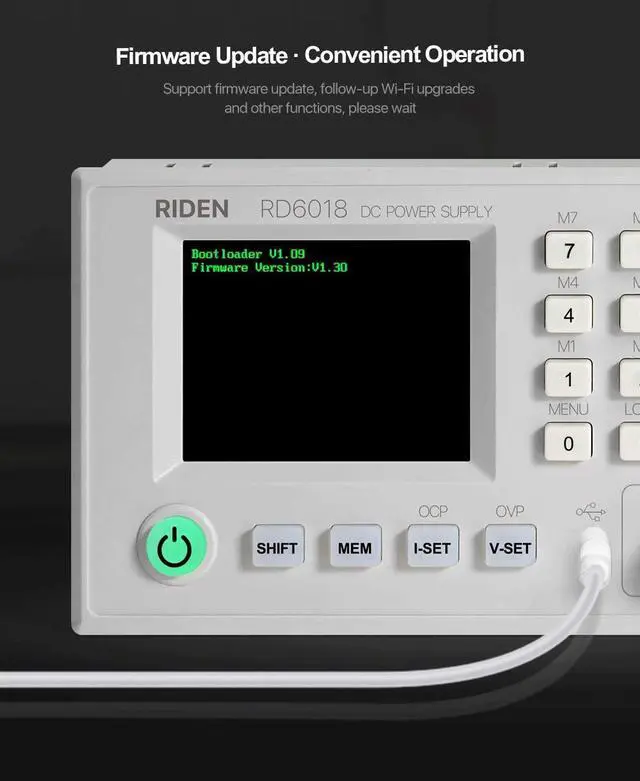

If there is new function, you can use the PC software to connect the device and update the firmware to get the new function
This icon will show you the device status, if it is normal or it is under over voltage/current/temperature protection mod
If you burn the fuse, you can use the spare fuse, insert it to the socket next to the fuse for short time usage, but it is better to replace the damaged one
