dc Power Supply DC Power Supply Adjustable lab Power Source 30V 10A 60V 5A Voltage Regulator Stabilizer Switching Supply DPS3010U (Color : DPS1203U)
- Set the voltage or current you want more accurately.
- This makes it more convenient for you to use the power supply.
- When a short circuit occurs, the variable DC power supply will stop output and send out an alarm to remind you. Bench power supply also have safety protections such as overvoltage, overcurrent, overheating and overload.
- dc power supply is the best choice for beginners or professional electricians.
- VERSATILE USAGE - Compact and lightweight, doesn't take up of space, ideal for a variety of applications such as school lab experiments, cell phone repair, electronics production assurance specifications, and lab measurements.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
INTRODUCTION:
The series of switching power supplies for measuring instrument have ruled out the inconvenience of bigvolume and heavyweight of a traditional power supply possess.Four adjustment buttons,The output voltage and current respectively is controlled by two variable resistors with coarse and fine regulation for morehandy and precise adjustment.

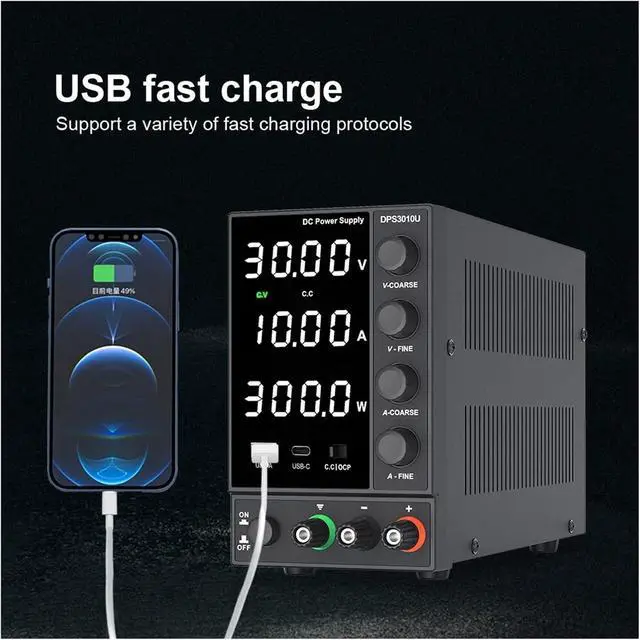

1.USB fast charging function, supporting a variety of fast charging protocols.
2.Short circuit protection function, short circuit stop output.
3.Small size, low ripple,light weight and high power density,Highly efficient.
4.Voltage stabilization, current limiting, simple operation.
5.Constant pressure and constant current switch automatically.
6.Three LED display of voltage, current and power, high precision.

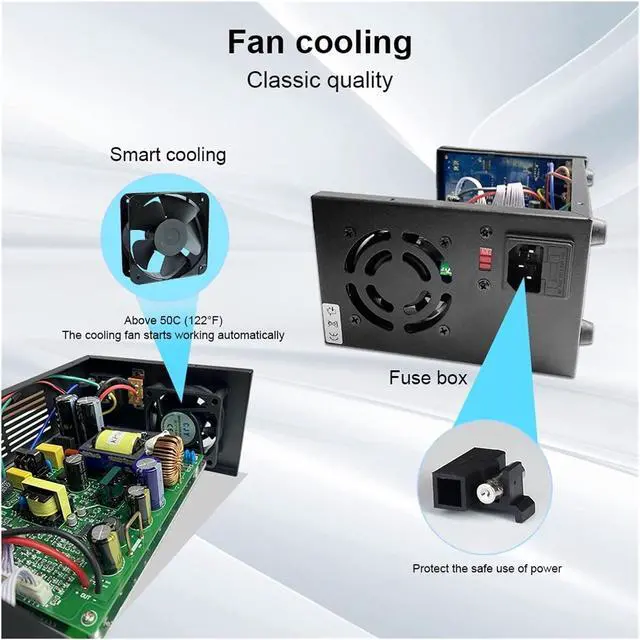

7.Temperature controlled fan heat dissipation, low noise, long life.
8.Four potentiometer more precise adjustment.

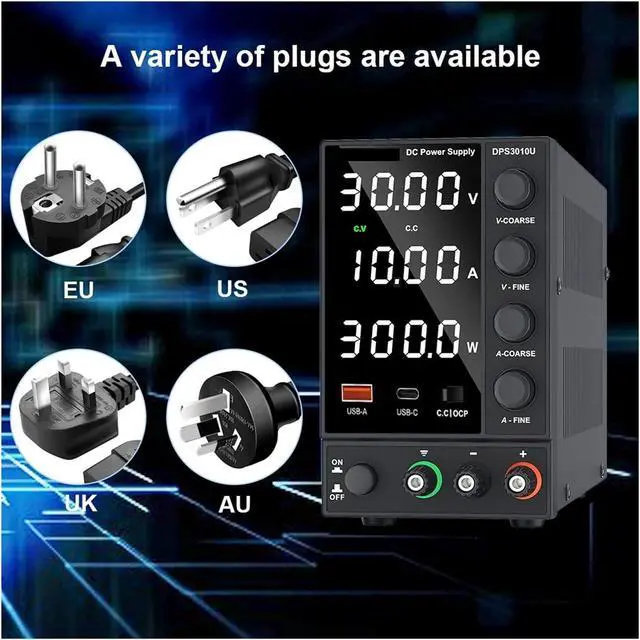

9.Dual voltage input and convenient choice.
10.Output Voltage ranges from 0 to rating voltage with continuous adjustment .
11.Output current ranges from 0 to rating current with continuous adjustment
12.AC 110v and 220vcan work, rest assured to choose.
13.With over-voltage protection (OVP), over-current protection (OCP), over-temperature protection and upgraded short-circuit alarm function.
Model
DPS305U
DPS3010U
DPS605U
Output Power
150W
300W
300W
Output voltage
0~30V
0~30V
0~60V
Output current
0~5A
0~10A
0~5A
Auxiliary functions
USB fast charging, supporting various fast charging protocols
Protection mode
Current limiting protection / short circuit alarm stop output, self recovey
working environment
Input voltage:AC230V/115V±10%;50Hz/60Hz
Working temperature:0-40;relative humidity:<;80%RH
Storage temperature:-10-70;relative humidity:<;70%RH
Constant voltage CV
Voltage stability:0.1%±3mV
Load stability:0.2%±3mV
Ripple voltage:0
The series of switching power supplies for measuring instrument have ruled out the inconvenience of bigvolume and heavyweight of a traditional power supply possess.Four adjustment buttons,The output voltage and current respectively is controlled by two variable resistors with coarse and fine regulation for morehandy and precise adjustment.
1.USB fast charging function, supporting a variety of fast charging protocols.
2.Short circuit protection function, short circuit stop output.
3.Small size, low ripple,light weight and high power density,Highly efficient.
4.Voltage stabilization, current limiting, simple operation.
5.Constant pressure and constant current switch automatically.
6.Three LED display of voltage, current and power, high precision.
7.Temperature controlled fan heat dissipation, low noise, long life.
8.Four potentiometer more precise adjustment.
9.Dual voltage input and convenient choice.
10.Output Voltage ranges from 0 to rating voltage with continuous adjustment .
11.Output current ranges from 0 to rating current with continuous adjustment
12.AC 110v and 220vcan work, rest assured to choose.
13.With over-voltage protection (OVP), over-current protection (OCP), over-temperature protection and upgraded short-circuit alarm function.
Model
DPS305U
DPS3010U
DPS605U
Output Power
150W
300W
300W
Output voltage
0~30V
0~30V
0~60V
Output current
0~5A
0~10A
0~5A
Auxiliary functions
USB fast charging, supporting various fast charging protocols
Protection mode
Current limiting protection / short circuit alarm stop output, self recovey
working environment
Input voltage:AC230V/115V±10%;50Hz/60Hz
Working temperature:0-40;relative humidity:<;80%RH
Storage temperature:-10-70;relative humidity:<;70%RH
Constant voltage CV
Voltage stability:0.1%±3mV
Load stability:0.2%±3mV
Ripple voltage:0
