Original Mean Well EPP Series 400W 12V Industrial Open Frame Power Supply 110V/220VAC to 12V DC 33.3 A Green PCB Power Unit PSU Transformer with PFC

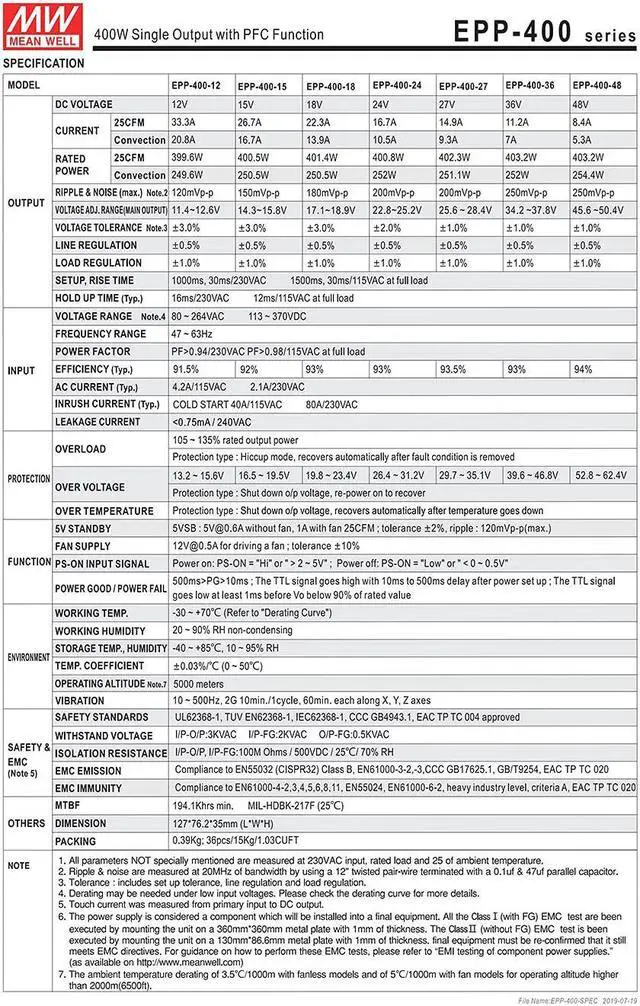

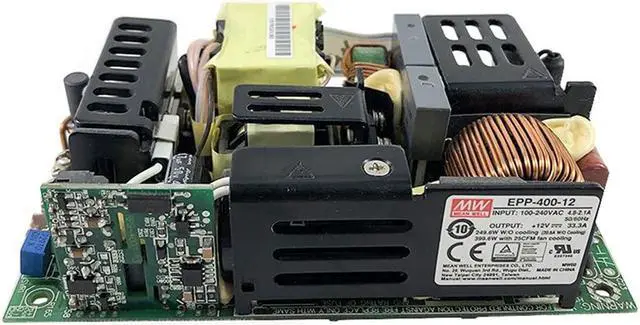

- Model EPP-400-12 PCB type power supply, 33.3A 399.6W(25CFM), 20.8A 249.6W(Convection)
- 5x 3 compact size
- Full range 80~264VAC input with built-in PFC function
- Cooling by free air convection for 250W and 400W with 25CFM forced air
- Use for Industrial automation machinery/Industrial control system/Mechanical and electrical equipment/Electronic instruments, equipments or apparatus
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Features
5x 3compact size
Full range 80~264VAC input with built-in PFC function
EMI Class B for Class I &Class A for Class II configuration
No load power consumption <0.5W
High efficiency up to 94%
Protections: short circuit/overload/over voltage/over temperature
Cooling by free air convection for 250W and 400W with 25CFM forced air
Built-in 12V/0.5A FAN supply
Standby 5V@1A with fan, 0.6A without fan
Built-in remote sense function
LED indicator for power on
Operating altitude up to 5000 meters
3 years warranty
Description

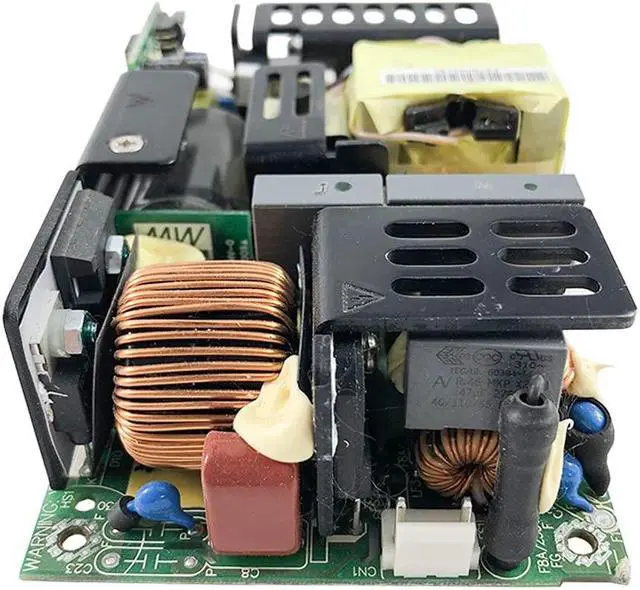

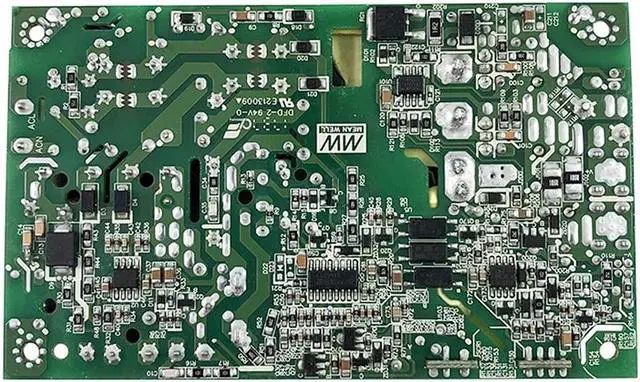

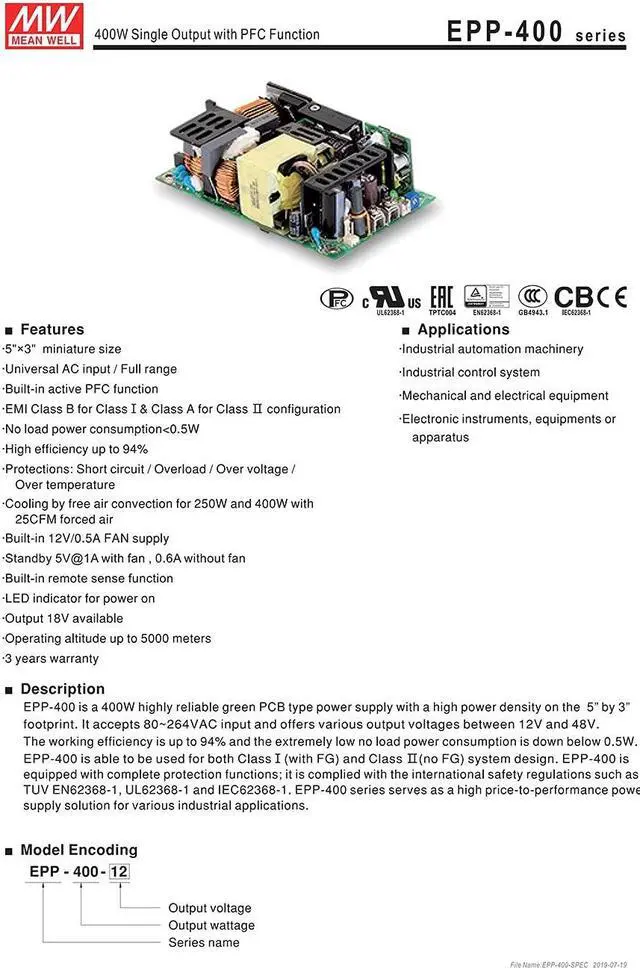

EPP-400 is a 400W highly reliable green PCB type power supply with a high power density on the 5 by 3 footprint. It accepts 80~264VAC input and offers various output voltages between 12V and 48V. The working efficiency is up to 94% and the extremely low no load power consumption is down below 0.5W. EPP-400 is able to be used for both Class I (with FG) and Class II(no FG) system design.
EPP-400 is equipped with complete protection functions; it is complied with the international safety regulations such as TUV EN62368-1, UL62368-1 and IEC62368-1. EPP-400 series serves as a high price-to-performance power supply solution for various industrial applications.
5x 3compact size
Full range 80~264VAC input with built-in PFC function
EMI Class B for Class I &Class A for Class II configuration
No load power consumption <0.5W
High efficiency up to 94%
Protections: short circuit/overload/over voltage/over temperature
Cooling by free air convection for 250W and 400W with 25CFM forced air
Built-in 12V/0.5A FAN supply
Standby 5V@1A with fan, 0.6A without fan
Built-in remote sense function
LED indicator for power on
Operating altitude up to 5000 meters
3 years warranty
Description
EPP-400 is a 400W highly reliable green PCB type power supply with a high power density on the 5 by 3 footprint. It accepts 80~264VAC input and offers various output voltages between 12V and 48V. The working efficiency is up to 94% and the extremely low no load power consumption is down below 0.5W. EPP-400 is able to be used for both Class I (with FG) and Class II(no FG) system design.
EPP-400 is equipped with complete protection functions; it is complied with the international safety regulations such as TUV EN62368-1, UL62368-1 and IEC62368-1. EPP-400 series serves as a high price-to-performance power supply solution for various industrial applications.
