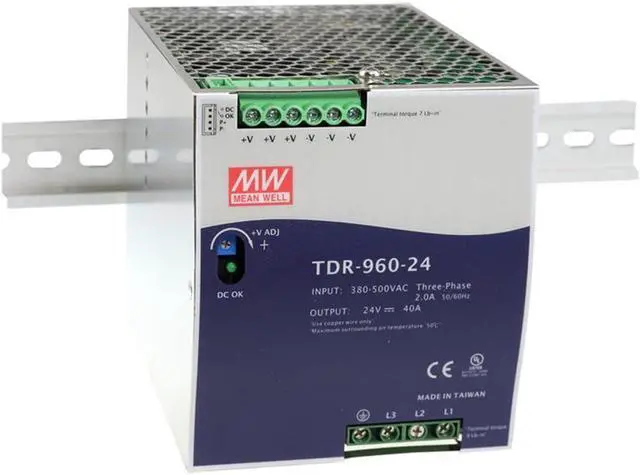

MW Mean Well TDR-960-24 24V 40A 960W Three Phase Industrial DIN RAIL with PFC Power Supply Function

Width only 110mm for TDR-960
Built-in active PFC function
High efficiency up to 94.5%
Can be installed on DIN rail TS-35/7.5 or 15
3 years warranty

Overview

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

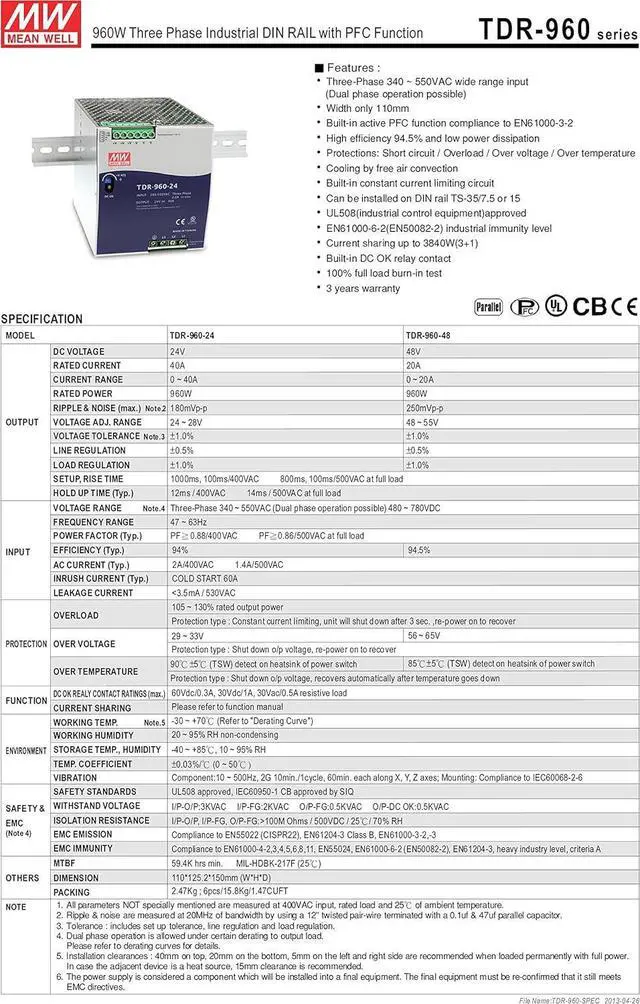

Features
3-phase, 340~550VAC wide range input (2-phase operation possible)
Width only 110mm for TDR-960; 85.5mm for TDR-480
Built-in active PFC function
High efficiency up to 94.5%
Protections: Short circuit / Overload / Over voltage / Over temperature
Cooling by free air convection
Built-in constant current limiting circuit
Can be installed on DIN rail TS-35/7.5 or 15
UL508(industrial control equipment)approved
EN61000-6-2(EN50082-2) industrial immunity level

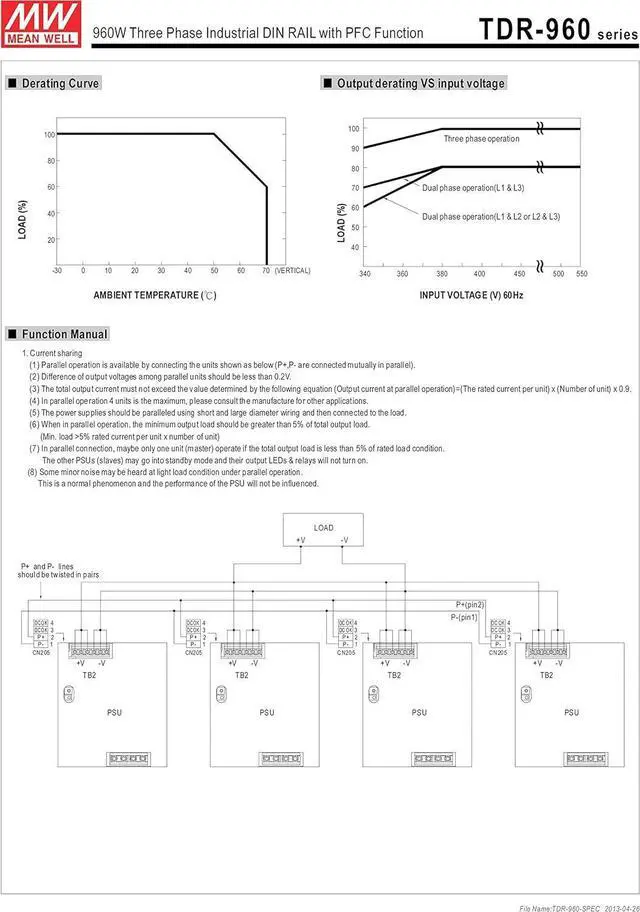

Current sharing up to 3840W(3+1) for TDR-960
Built-in DC OK relay contact (optional for TDR-480)
100% full load burn-in test
3 years warranty
