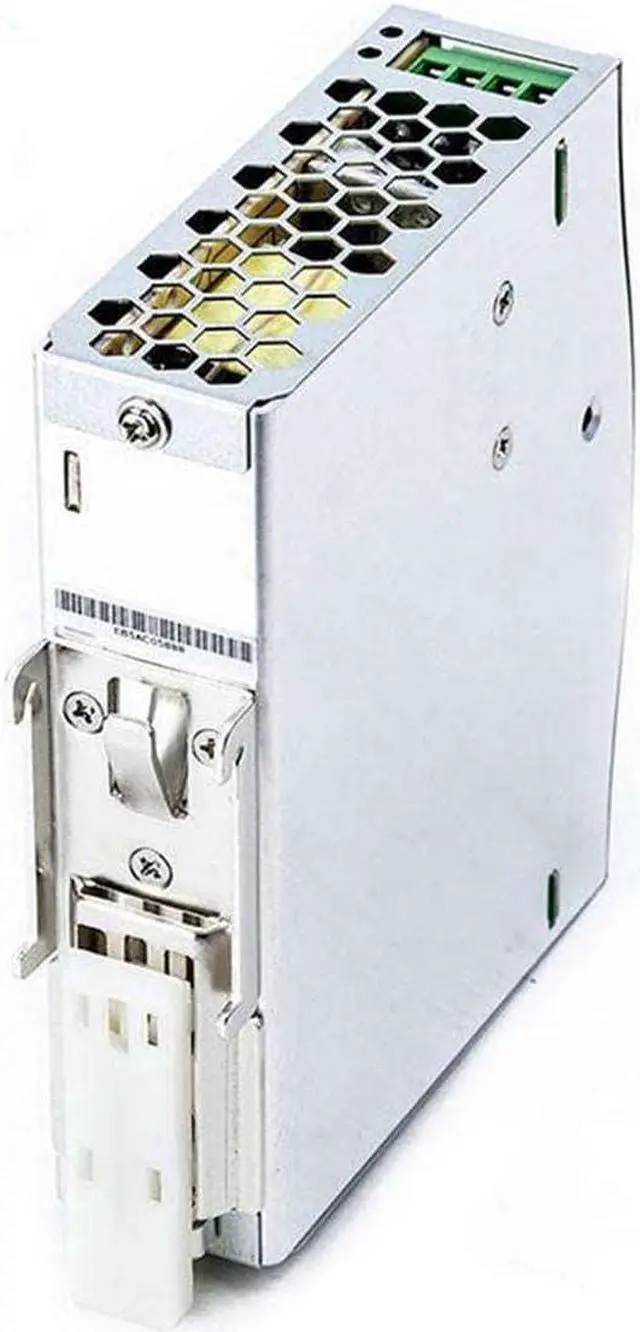

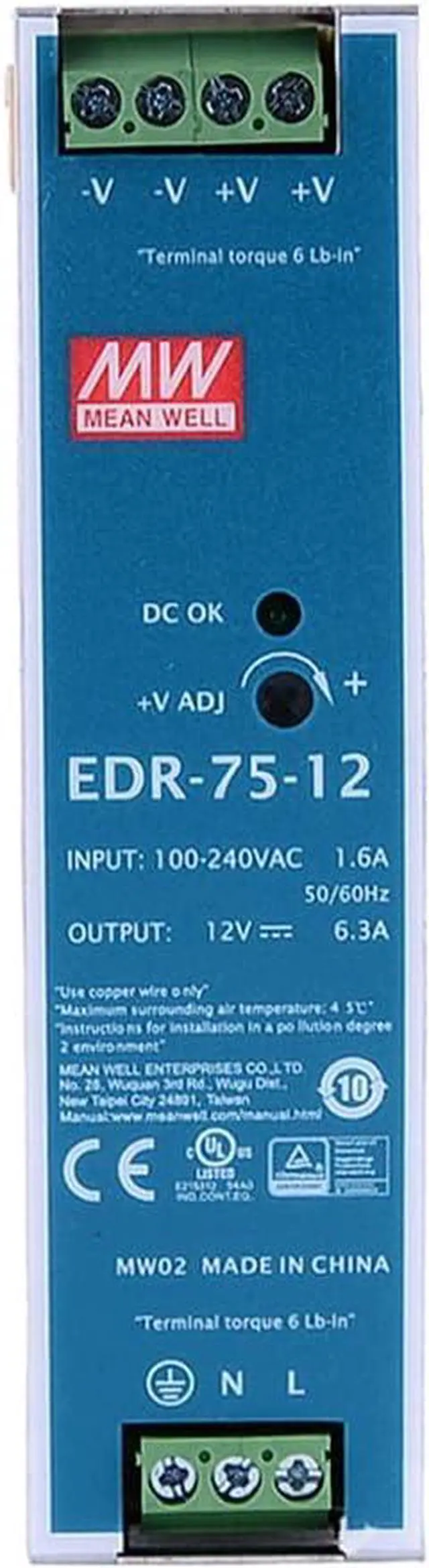

(12PACK) Mean Well EDR Switch Mode DIN Rail Slim and Economical Power Supply 90 ? 264V Ac Input EDR-75 Series 75W (EDR-75-12)
- Input Voltage 90 - 264V ac
- al AC input/ Full range, Can be installed on DIN rail TS-35/7.5 or 15
- Protections: Short circuit/ Overload/ Over voltage/ Over temperature
- Standards Met RoHS Compliant, TUV EN 60950-1, UL 508
- Products High quality High cost-performance complete varieties 24-hour delivery Fast Response ? Technical questions will be replied in 24 hours
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product Details

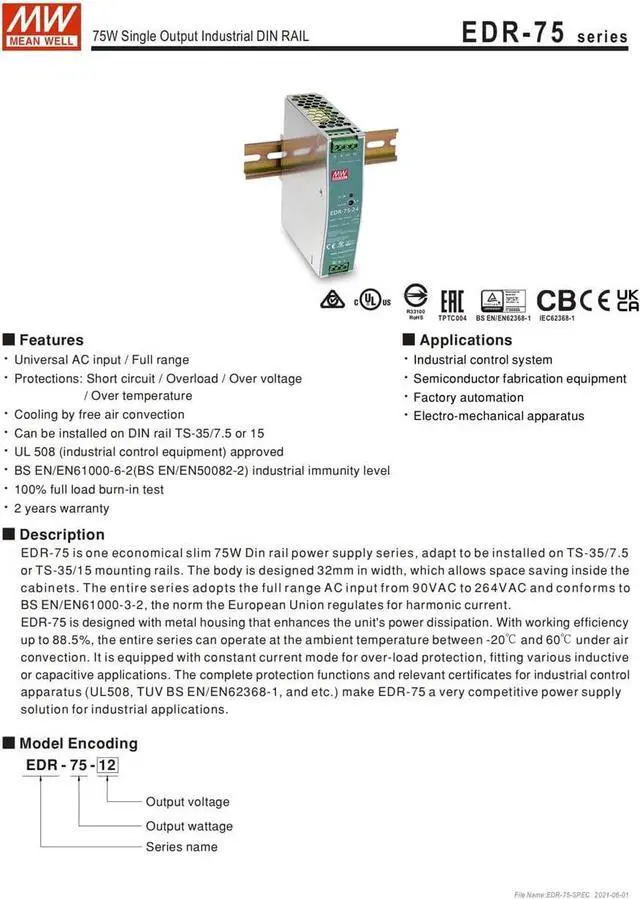

Mean Well EDR-75 Series Single Output Industrial Power Supply
Economical and slim, the EDR-75 range of power supplies can be installed on TS-35/7.5 or TS-35/15 mounting rails and have been designed to allow space saving within cabinets. The entire series conforms to EN61000-3-2 and has been designed with metal housing enhancing the PSUs power dissipation.The entire series can operate between -20°C and 60°C under air convection.
The EDR series is an ideal choice for many industries, fitting various inductive or capacitive applications.
Features and Benefits
Universal AC input/Full range
Short circuit/Overload/Over voltage/Over temperature protections

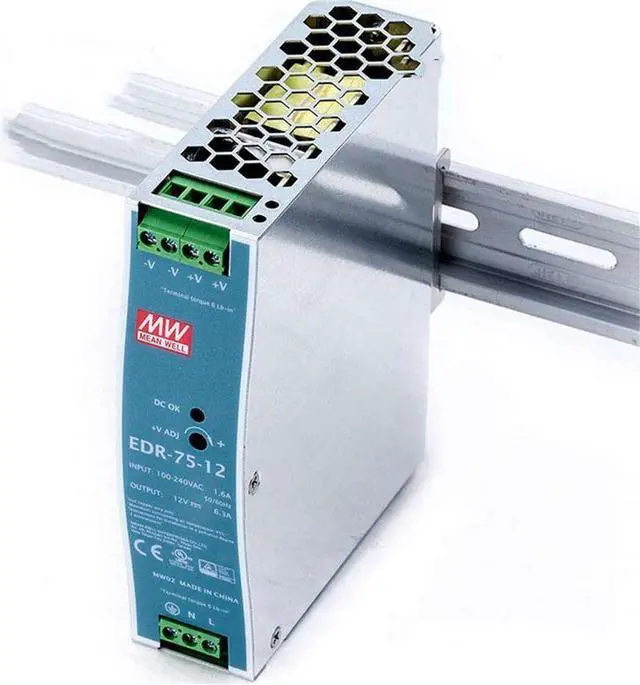

Can be installed on DIN Rail TS-35/7.5 or 15
Cooling by free air convection
UL 508 (industrial control equipment) approved
EN61000-6-2 (EN50082-2) industrial immunity level
100% full load burn-in test
Product Application Information
The EDR series PSU by Mean Well is ideal for use in machine industrial control systems, semiconductor fabrication equipment, factory automation and electro-mechanical apparatus.
Standards If the power supply is to be used in the USA for controlling electric motors then it will need to comply with Standard UL508, the safety standard for industrial control equipment.
Mean Well EDR-75 Series Single Output Industrial Power Supply
Economical and slim, the EDR-75 range of power supplies can be installed on TS-35/7.5 or TS-35/15 mounting rails and have been designed to allow space saving within cabinets. The entire series conforms to EN61000-3-2 and has been designed with metal housing enhancing the PSUs power dissipation.The entire series can operate between -20°C and 60°C under air convection.
The EDR series is an ideal choice for many industries, fitting various inductive or capacitive applications.
Features and Benefits
Universal AC input/Full range
Short circuit/Overload/Over voltage/Over temperature protections
Can be installed on DIN Rail TS-35/7.5 or 15
Cooling by free air convection
UL 508 (industrial control equipment) approved
EN61000-6-2 (EN50082-2) industrial immunity level
100% full load burn-in test
Product Application Information
The EDR series PSU by Mean Well is ideal for use in machine industrial control systems, semiconductor fabrication equipment, factory automation and electro-mechanical apparatus.
Standards If the power supply is to be used in the USA for controlling electric motors then it will need to comply with Standard UL508, the safety standard for industrial control equipment.
