(12PACK) Mean Well HDR Switch Mode DIN Rail Power Supply 120 ? 370 V Dc, 85 ? 264 V Ac Input HDR-15 Series 15W (HDR-15-5)
- Input Voltage 120 - 370 V dc, 85 - 264 V ac, DC output voltage adjustable
- Ultra slim design with 17.5mm (1SU) width, No load power consumption <0.3W
- Can be ssembled on an industrial DIN Rail TS-35/7.5 or 15
- Standards Met RoHS Compliant, TUV EN 60950-1, UL 508, Safety Standards UL60950-1, UL508 etc., EMC Standards Compliance to EN61204-3 Class B, EN61000-3-2,-3 etc.
- Products High quality High cost-performance complete varieties 24-hour delivery Fast Response ? Technical questions will be replied in 24 hours
+
+
Overview

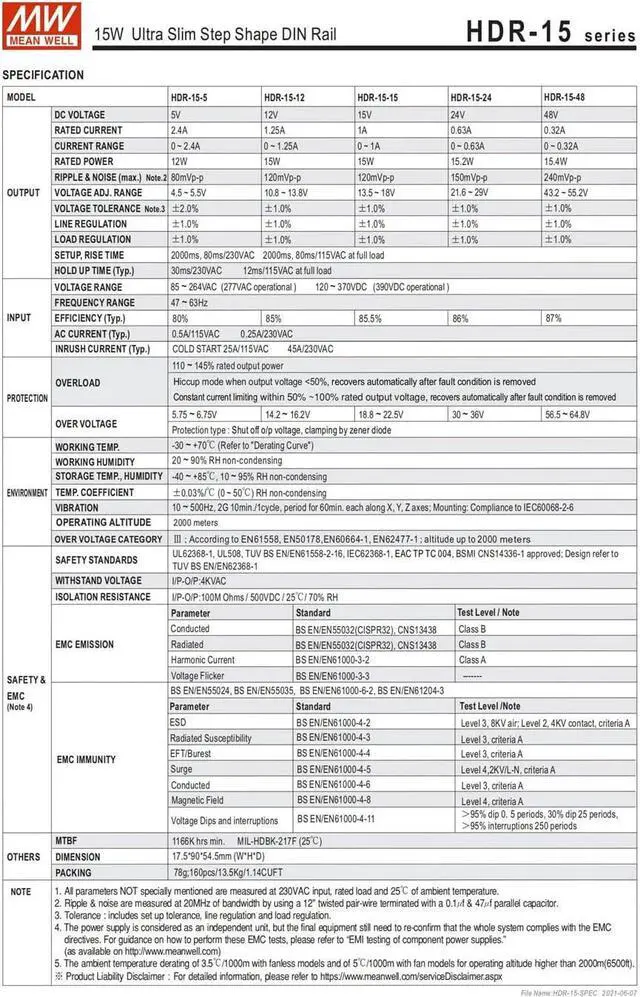

Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product Details

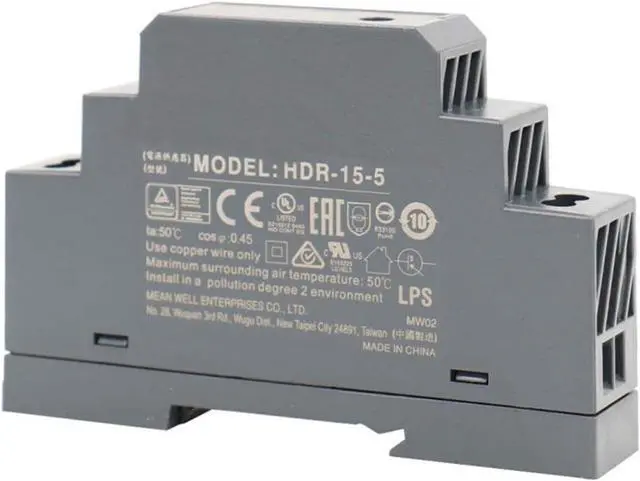

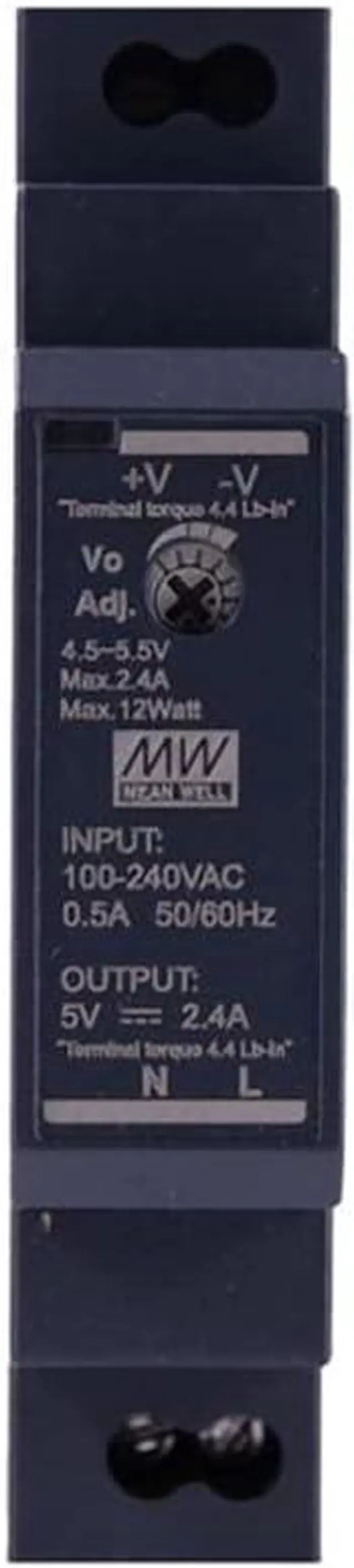

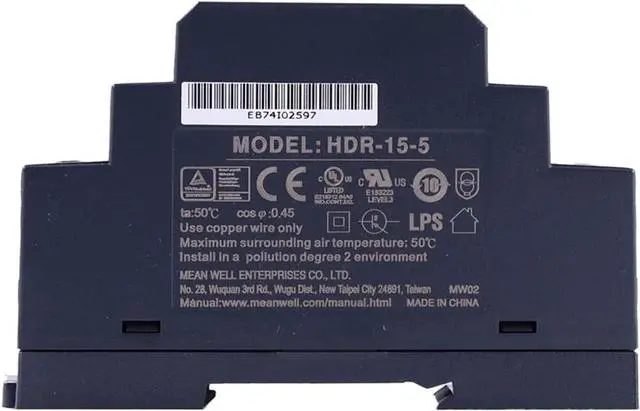

Mean Well HDR-15 Series DIN Rail Power Supply
The HDR-15 series PSU is an economical and ultra slim power supply which can be adapted to be installed on TS-35/7.5 or TS-35/15 DIN Rails. The body has a narrow width which allows for space saving within a cabinet. The HDR series power supply has been designed with plastic housing that can effectively prevent electrical hazards.
Features and Benefits
Stepped shape plastic housing
Full range input
Compact size
Isolation Class II
Can be ssembled on an industrial DIN Rail TS-35/7.5 or 15
DC output voltage adjustable
No load power consumption <0.3 W
Product Application Information
Industrial control systems
Building automation
Factory automation
Electro-mechanical apparatus
Household control system
Standards If the power supply is to be used in the USA for controlling electric motors then it will need to comply with Standard UL508, the safety standard for industrial control equipment.
Mean Well HDR-15 Series DIN Rail Power Supply
The HDR-15 series PSU is an economical and ultra slim power supply which can be adapted to be installed on TS-35/7.5 or TS-35/15 DIN Rails. The body has a narrow width which allows for space saving within a cabinet. The HDR series power supply has been designed with plastic housing that can effectively prevent electrical hazards.
Features and Benefits
Stepped shape plastic housing
Full range input
Compact size
Isolation Class II
Can be ssembled on an industrial DIN Rail TS-35/7.5 or 15
DC output voltage adjustable
No load power consumption <0.3 W
Product Application Information
Industrial control systems
Building automation
Factory automation
Electro-mechanical apparatus
Household control system
Standards If the power supply is to be used in the USA for controlling electric motors then it will need to comply with Standard UL508, the safety standard for industrial control equipment.
