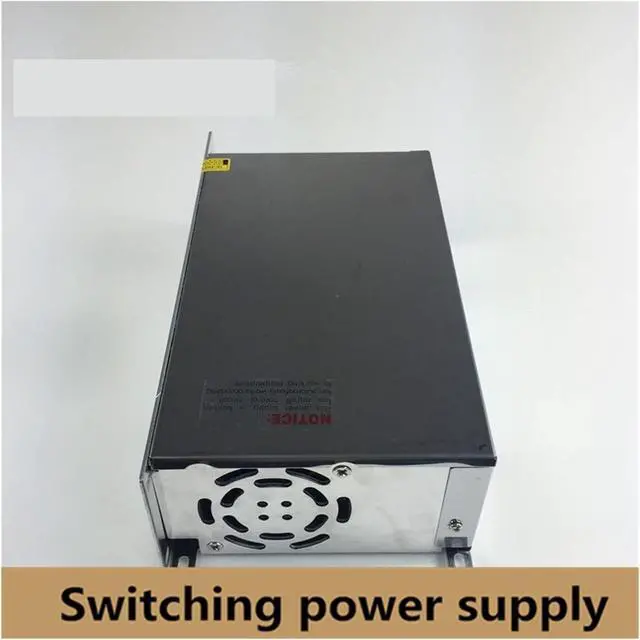

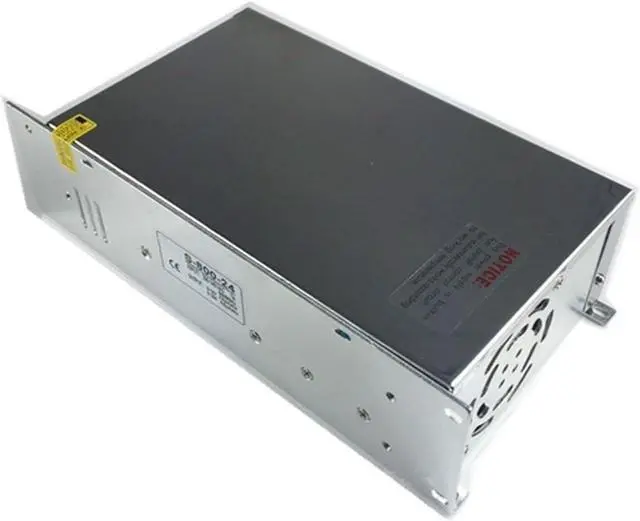

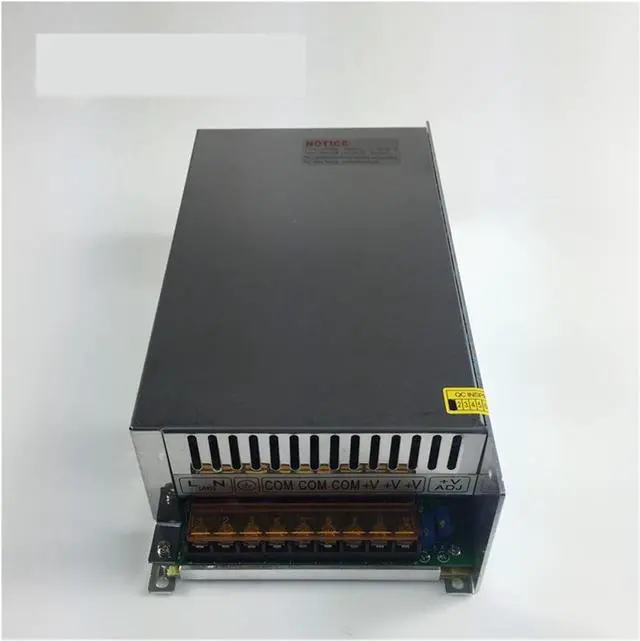

Switching Power Supply 800w Switching Power Supply 27V 30A 220V ac to dc Converter led Driver 110V SMPS for led Strip Display CCTV and 3D Printer (Size : 220V)

Feature&Advantages
Universal AC input
Protectionsshort circuit/overload/over voltage
Cooling by bulit-in fan
Low cost,high reliability

Specification:
Model
Specification
S-800-12 S-800-15 S-800-24 S-800-27 S-800-36 S-800-48
DC Output voltage 12V 15V 24V 27V 36V 48V
Output voltage range(Note:2) +/-1% +/-1% +/-1% +/-1% +/-1% +/-1%
Rated output current 66A 53A 33A 30A 22.2A 16A
Output current range 0~66A 0~53A 0~33A 0~30A 0~22.2A 0~16A
Wave and noise(Note:3) 150mVp-p 150mVp-p 150mVp-p 240mVp-p 240mVp-p 480mVp-p
Inlet stability(Note:4) +/-1% +/-1% +/-1% +/-1% +/-1% +/-1%
Load stability(Note:5) +/-1% +/-1% +/-1% +/-1% +/-0.3% +/-0.3%
DC output power 800W 800W 800W 800W 800W 800W
Efficiency 84% 85% 86% 86% 87% 88%
Adjustable range for DC voltage +/-10% +/-10% +/-10% +/-10% +/-10% +/-10%
AC input voltage range 100~132VAC/190~240VAC 250~340VDCNotes: when you make order please choose the input voltage,110vac or 220vac.
Input current 6A/230V
AC Inrush current Cold-start current 30A/115V 60A/230V
Leakage current less 3.5mA/240VAC
Overload protection 105%-150% Type: cut down output Reset: auto recovery
Over-voltage protection .................
High-temperature protection ....................
Temperature coefficient +/-0.03%/.C(0~50.C)
Setup, rise, hold up time 800ms, 50ms, 10ms/150V 300ms,50ms,80ms/230v
Vibration 10~500Hz, 2G 10min,/1 cycle. Period for 60min,E ach axes
Withstand voltage I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
Isolation resistance I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC
Working temperature and humidity -10.C~+60.C(Refer to output derating curve), 20%~90%RH
Store temperature and humidity -20.C~+85.C, 10%~95%RH
Overall dimension
238*124*65mm (L*W*H)
Weight 1.8 kg
