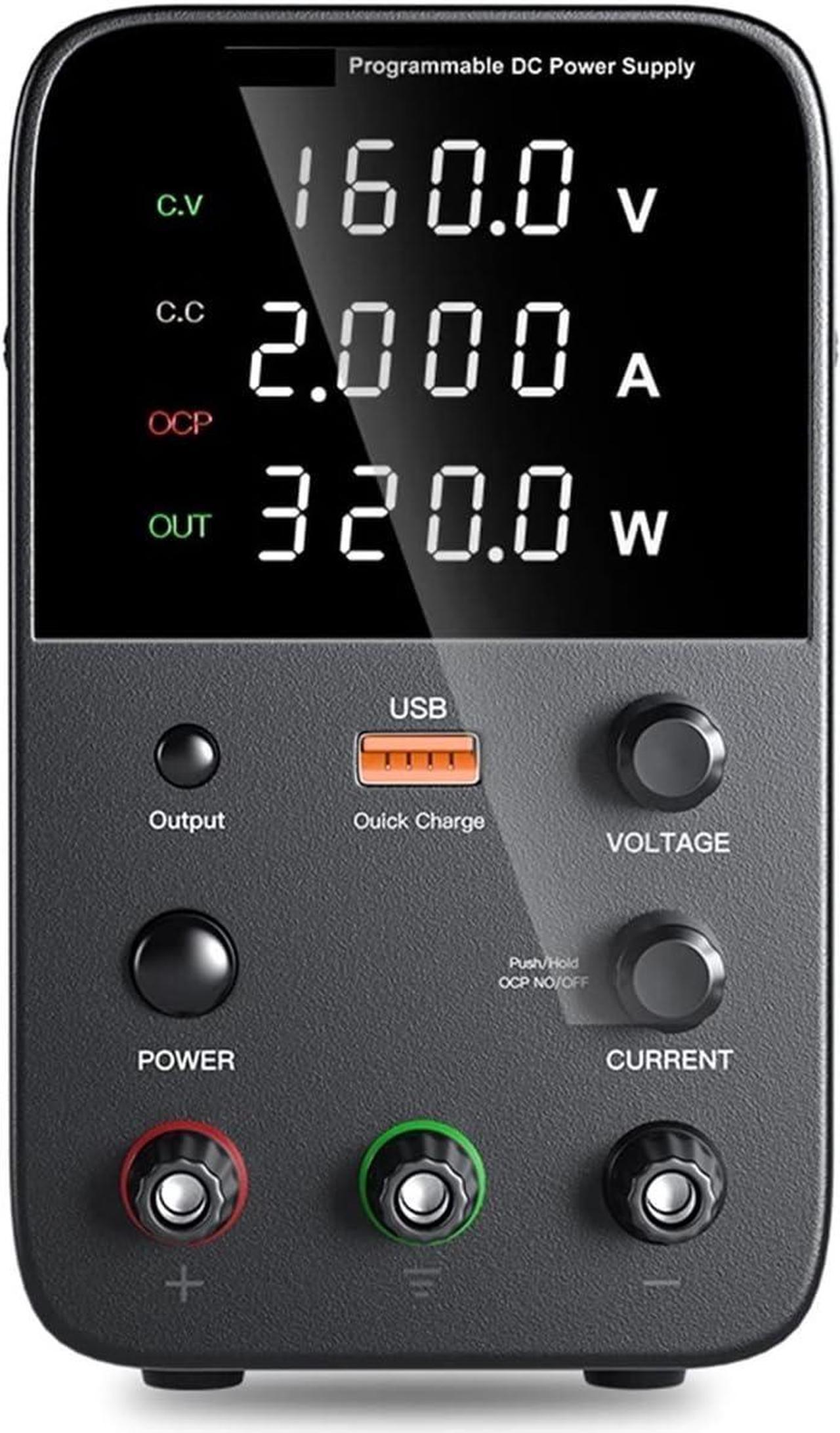

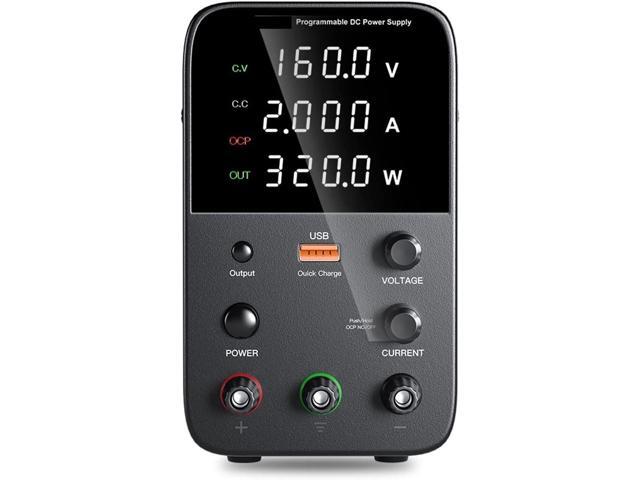

dc Power Supply Adjustable DC Power Supply 30V 10A Laboratory Programmable Power Supply 60V 5A USB Power Supply Short Circuit (Color : 160V 2A)
- Set the voltage or current you want more accurately.
- This makes it more convenient for you to use the power supply.
- When a short circuit occurs, the variable DC power supply will stop output and send out an alarm to remind you. Bench power supply also have safety protections such as overvoltage, overcurrent, overheating and overload.
- dc power supply is the best choice for beginners or professional electricians.
- VERSATILE USAGE - Compact and lightweight, doesn't take up of space, ideal for a variety of applications such as school lab experiments, cell phone repair, electronics production assurance specifications, and lab measurements.
+
+
Overview
Specs
Reviews

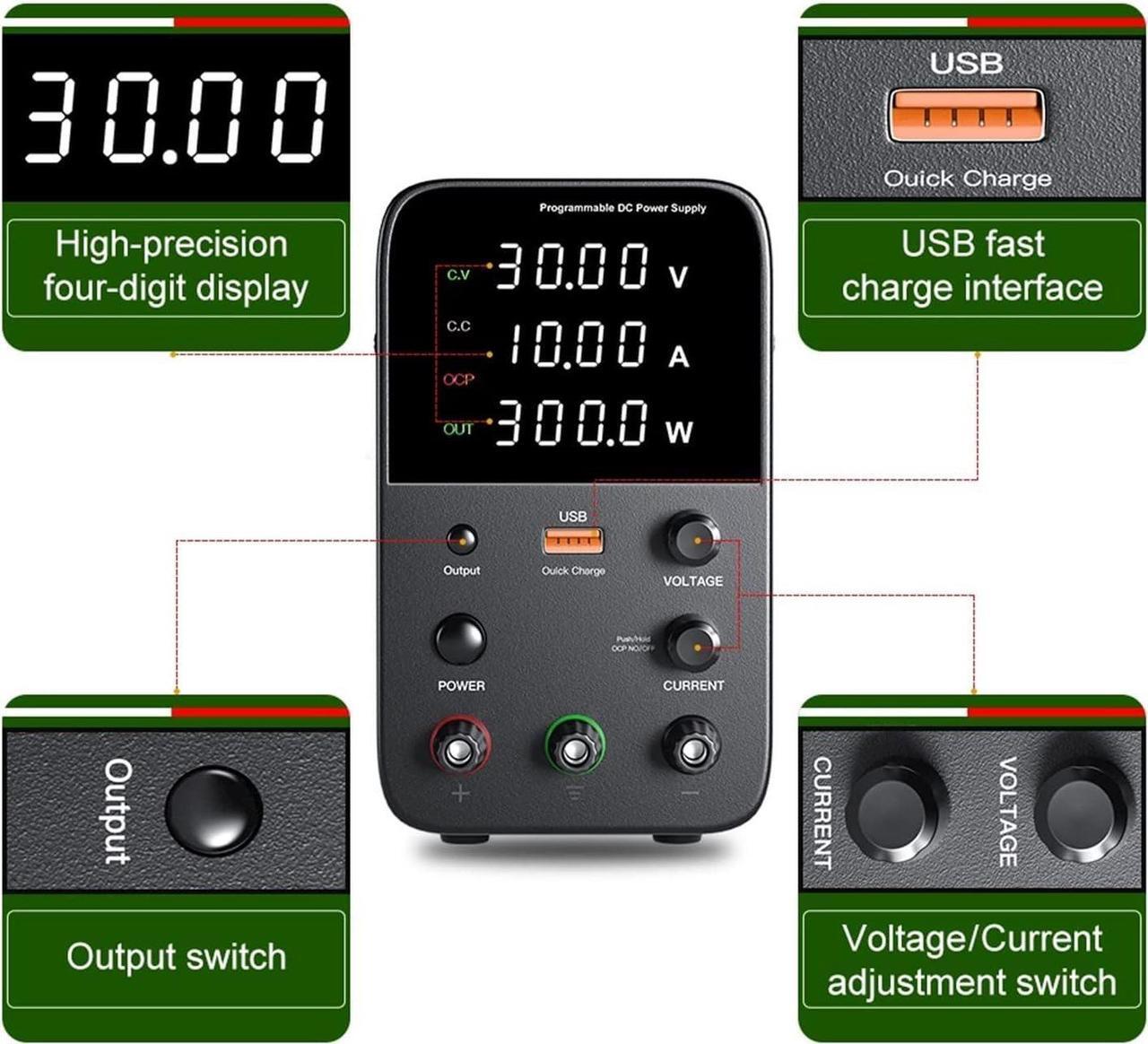

Four-digit display 0.01 V/0.001 A
1.WPS1602HProgrammableDC power supply with power display 160V 2A
2.WPS1203H ProgrammableDC power supply with power display 120V 3A

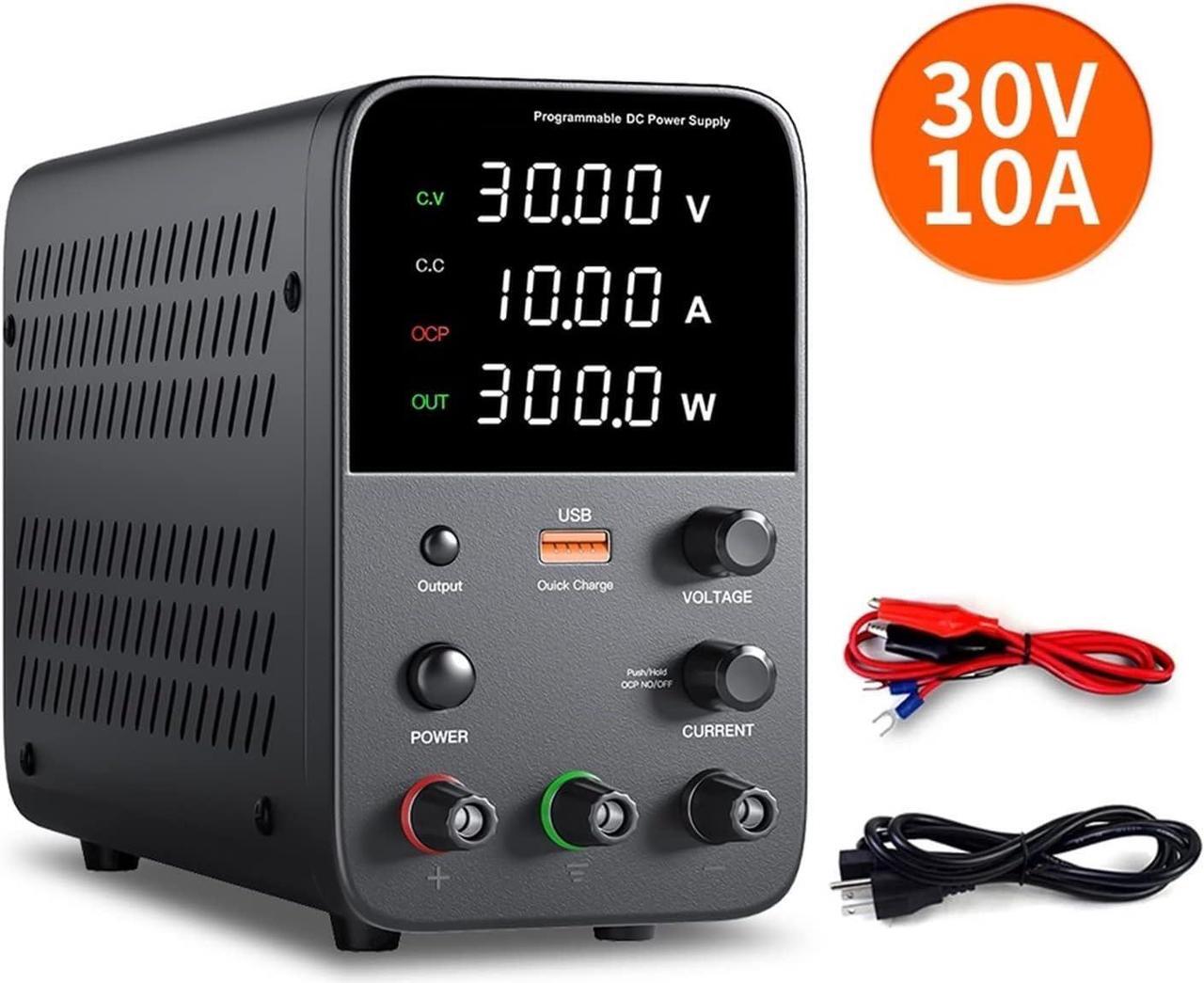

3.WPS3010HProgrammableDC power supply with power display 30V 10A
4.WPS605HProgrammableDC power supply with power display 60V 5A
5.WPS305HProgrammableDC power supply with power display 30V 5A

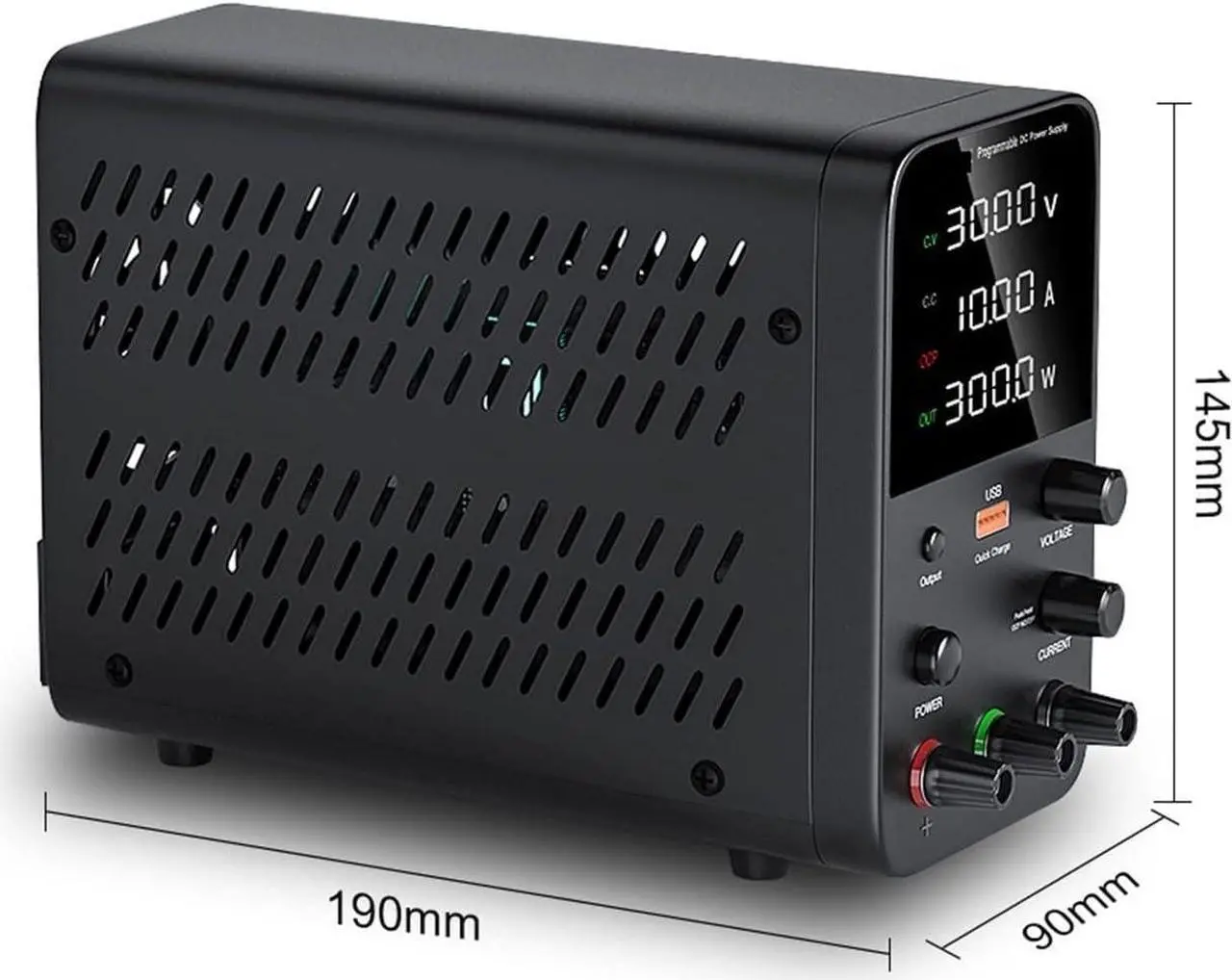

1.Small size, light weight and high power density.
2.Constant pressure and constant current switch automatically.

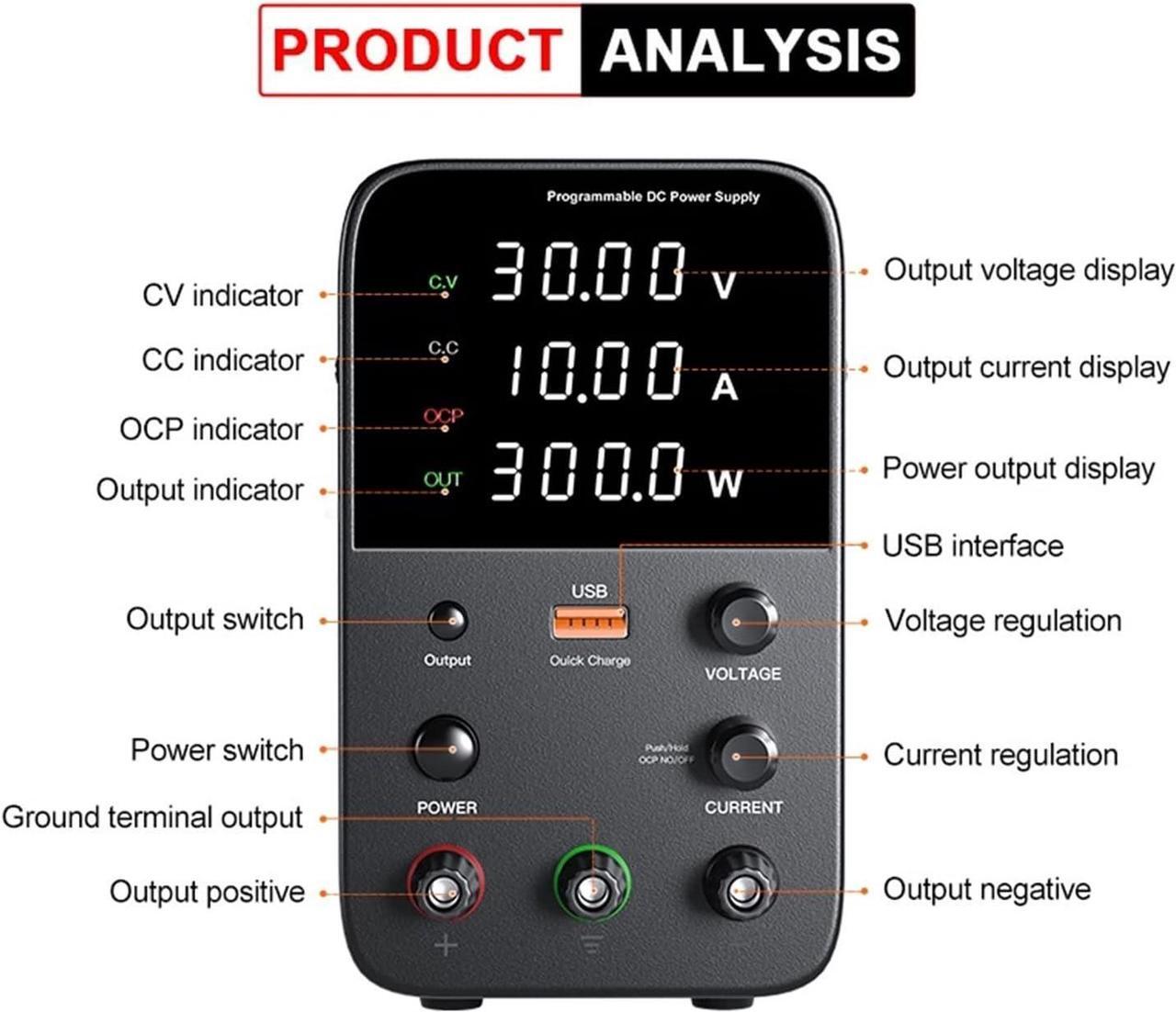

3.LED display of voltage, current and power, high precision and features of voltage stabilization, current limiting, and simple operation.
4.Adjustable Output Voltage & Current output voltage and output current can be continuously 5adjusted between 0 and nominal value with fine regulating and coarse regulating
6it has over voltage protection(OVP), over current protection(OCP), over temperature protection

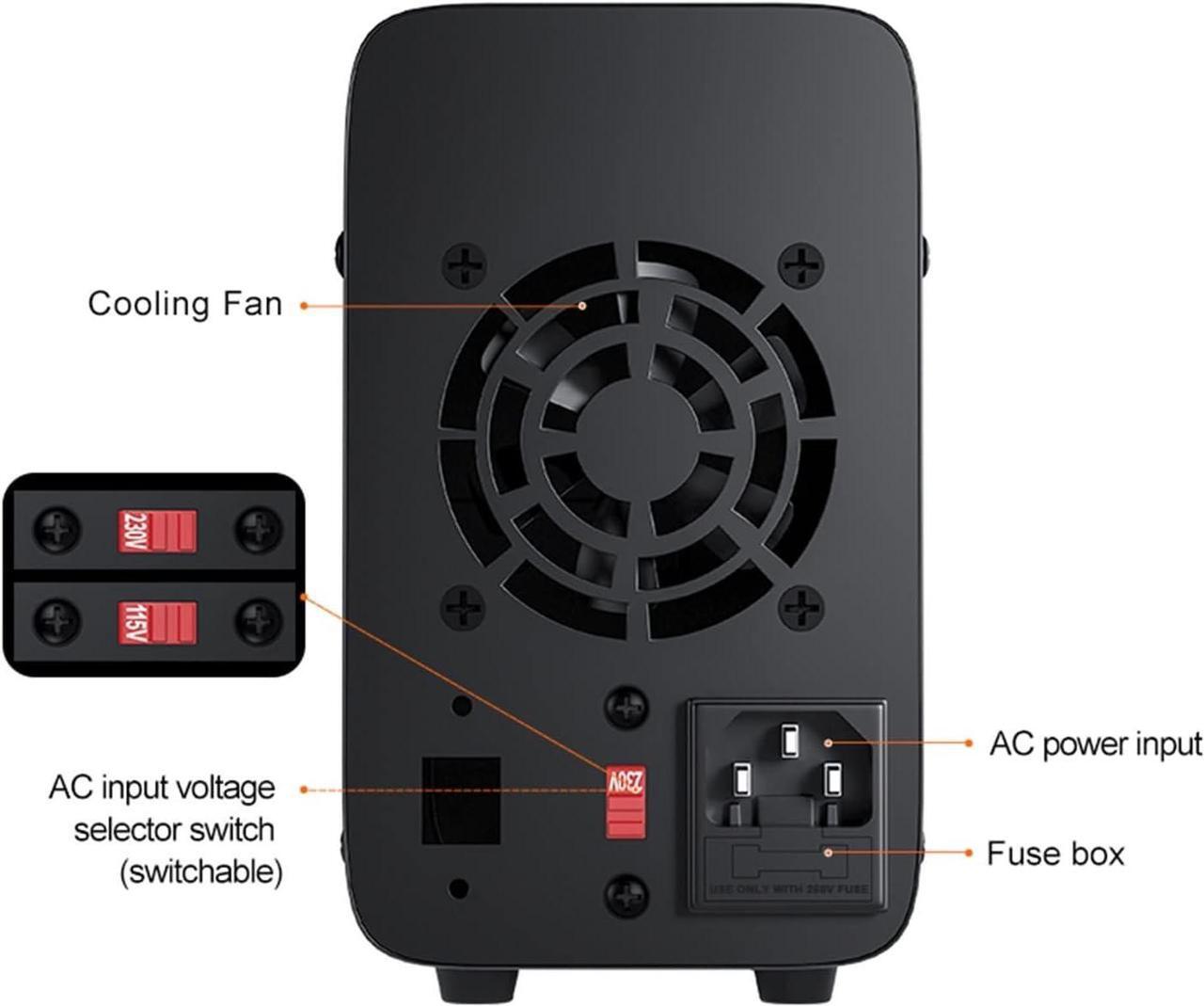

7.Temperature controlled fan cooling, low noise, long life.
8.Dual voltage input and convenient choice.
9.Output Voltage ranges from 0 to rating voltage with continuous adjustment .
10.Output current ranges from 0 to rating current with continuous adjustment
11.AC 110v and 220vcan work, rest assured to choose.
12.ProgrammableDC power supply
Output Power
150W/300W/320W/360W
Output voltage
0~30V/60V/120V/160V
Output current
0~2A/3A/5A/10A
working environment
input voltage:AC230V/115V±10%;50Hz/60Hz
Working temperature:0-40;relative humidity:<;80%RH
Storage temperature:-10-70;relative humidity:<;70%RH
Constant voltage CV
Voltage stability:0.1%±3mV
Load stability:0.2%±3mV
Ripple voltage:0.5%Vp-p
0 to rated voltage continuously adjustable
constant current CC
Current stability:0.1%±3mA
Load stability:0.2%±3mA
Ripple current:0.5%Vp-p
Recovery time:500S
Temperature coefficient:100ppm/
0 to rated current continuously adjustable
display
LEDdigit dis
