1.Small size, light weight and high power density.
2.Constant pressure and constant current switch automatically.

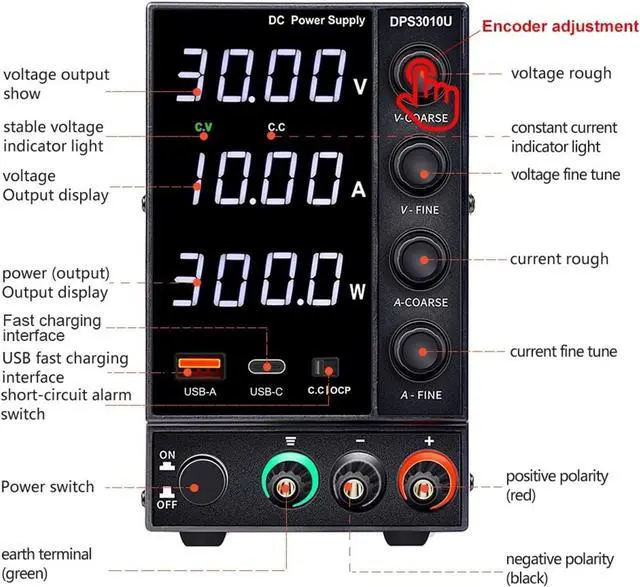

3.LED display of voltage, current and power, high precision and features of voltage stabilization, current limiting, and simple operation.
4.Adjustable Output Voltage & Current output voltage and output current can be continuously 5adjusted between 0 and nominal value with fine regulating and coarse regulating
6it has over voltage protectionOVP over current protectionOCP over temperature protection
7.Temperature controlled fan cooling, low noise, long life.
8.Dual voltage input and convenient choice.
9.Output Voltage ranges from 0 to rating voltage with continuous adjustment .
10.Output current ranges from 0 to rating current with continuous adjustment
11.AC 110v and 220v can work, rest assured to choose.

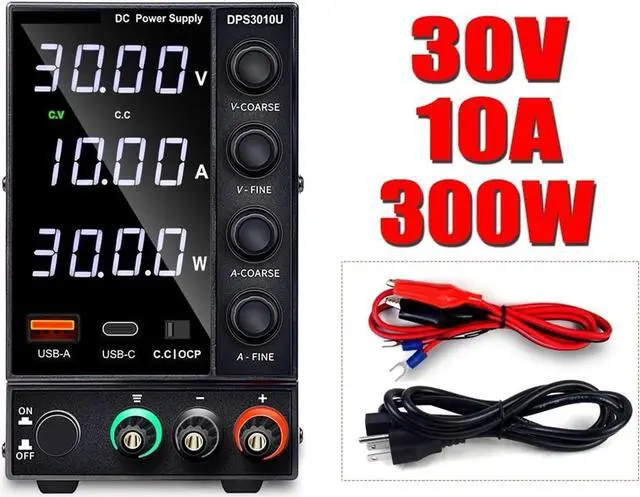

Output Power
300W
Output voltage
0~30V
Output current
0~10A
working environment
input voltage:AC230V/115V±10%;50Hz/60Hz
Working temperature:0-40;relative humidity:<;80%RH
Storage temperature:-10-70;relative humidity:<;70%RH
Constant voltage CV
Voltage stability:0.1%±3mV
Load stability:0.2%±3mV
Ripple voltage:0.5%Vp-p
0 to rated voltage continuously adjustable
constant current CC
Current stability:0.1%±3mA
Load stability:0.2%±3mA
Ripple current:0.5%Vp-p
Recovery time:500S
Temperature coefficient:100ppm/
0 to rated current continuously adjustable
display
LEDdigit display
Display accuracy:0.5%±digits
Display resolution:voltage 0.1V/0.01V,current 0.01A/0.001A
1. Production line test.
2. Mobile phonemaintenance, computermaintenance, electrical appliance maintenance,Car DVD, car audio.
3. Product aging, electroplating,such as resistors, capacitors, relays, DC motors, LEDs, etc.
4. Charge the battery.
5. Laboratory, scientific research teaching,factory, maintenance power supply.school laborato
