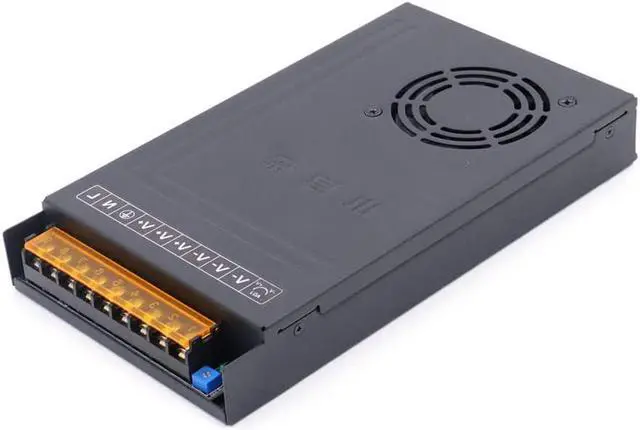

Switching Power Supply 100-240VAC 12V 250W 20A Switch Mode Power Supply for CCTV Security Camera, with Cooling Fan, with PFC
- High Thermal Stability: The power supply is equipped with IC heat sink, which has high thermal stability, adopts LLC structure, supports PFC power factor correction, and has higher power conversion efficiency and energy saving
- Voltage Adjustable: the power output voltage fine-tuning knob can adjust the voltage between DC11-14V
- Equipped with a Temperature-controlled Cooling Fan: When the power converter needs to be cooled, it will run automatically without any noise.
- Protection Function: overload protection, overvoltage protection, short circuit protection, this kind of protection will protect your load well. Note: Please select the input voltage 110V/220V according to the local voltage before use to avoid damage
- Support OEM/ODM: All products in the store support OEM/ODM servicesthere are quantity requirements.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specifications:
Universal AC input range:110-240VAC, 47-63Hz
Output voltage: DC 12V
Output current: 20A
Power:250W
Conversion efficiency>85%
Leakage current<1Ma/240VAC
Overload protection: 105%-200%
DC output voltage is adjustable
Features:
100% full load aging test
Built-in PFC circuits
LED indicator for power on
Switch operating frequency 100KHZ
Cooling by fan dissipation
Special Attention:
1. The power input and output terminals are equipped with safety protection devices. After the cable is connected, the protective cover should be covered.
2. Before powering on, please check if the input and output connections are correct, so as not to damage the user's equipment.
3. After plugging in, the green light of the power output is bright. If it is not lit, please check if the wiring is wrong. If there is no nominal output, please send it for repair.
4. If the required power does not match the selected model during actual use, please let us know in time that we will match the matching model at the fastest speed.
5. Do not install the power supply in direct sunlight, high temperature, rain, and dust, and install it in a ventilated place. Live the cooling windows on both sides.
6. Must be careful not to use in environments with water splashes and water droplets.
Universal AC input range:110-240VAC, 47-63Hz
Output voltage: DC 12V
Output current: 20A
Power:250W
Conversion efficiency>85%
Leakage current<1Ma/240VAC
Overload protection: 105%-200%
DC output voltage is adjustable
Features:
100% full load aging test
Built-in PFC circuits
LED indicator for power on
Switch operating frequency 100KHZ
Cooling by fan dissipation
Special Attention:
1. The power input and output terminals are equipped with safety protection devices. After the cable is connected, the protective cover should be covered.
2. Before powering on, please check if the input and output connections are correct, so as not to damage the user's equipment.
3. After plugging in, the green light of the power output is bright. If it is not lit, please check if the wiring is wrong. If there is no nominal output, please send it for repair.
4. If the required power does not match the selected model during actual use, please let us know in time that we will match the matching model at the fastest speed.
5. Do not install the power supply in direct sunlight, high temperature, rain, and dust, and install it in a ventilated place. Live the cooling windows on both sides.
6. Must be careful not to use in environments with water splashes and water droplets.
