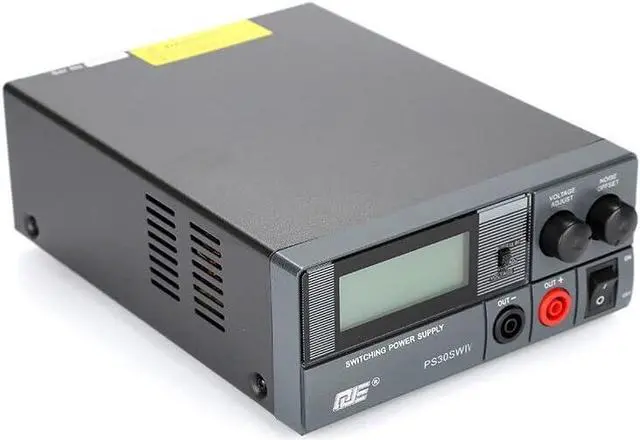

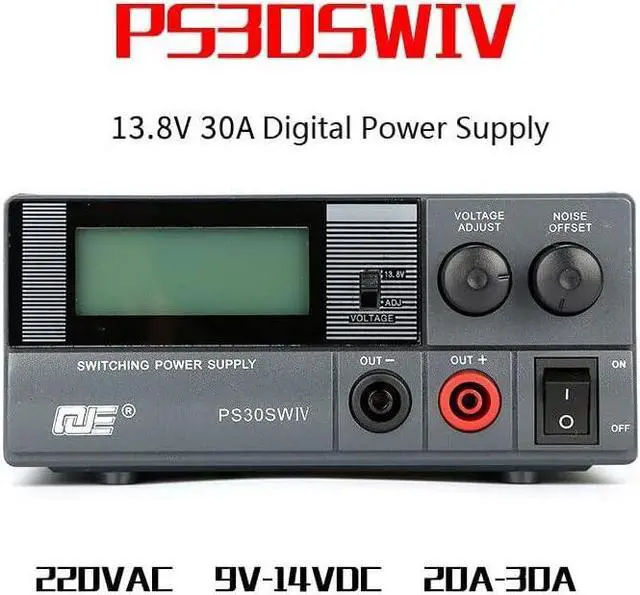

220V PS30SWIV DC Regulated Communication Switching Power Supply - 30 Amps, 13.8 VDC
- - This power supply is suitable for high demanding applications, such as communications equipment.
- - The LCD digital display with backlight design.
- - The output voltage can be adjusted, especially for 13.8V power shortwave station uses a base statio
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specific parameter:
- Model: PS30SWIV

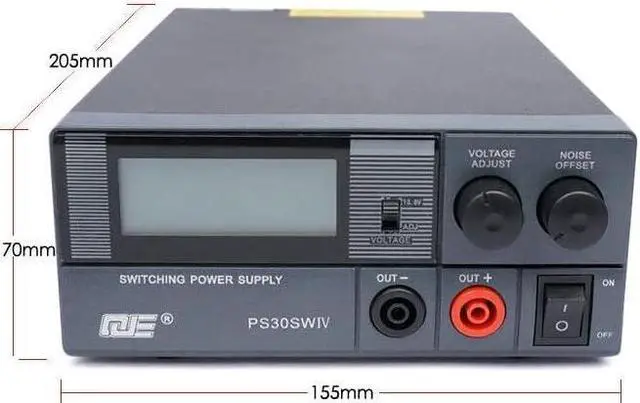

- Dimenion:155(W) x 70(H) x 205(D) mm
- Weight:2.0kg
- Output voltage:9- 15V DC adjustable,sitable around 13.8V DC
- Output current:30A (max)
- Ripple and noise: <10mV effective value
- Overvoltage protection: 16V, +/-0.5V
- Power:230V AC / 50Hz
- Instrument type:LED digital meter
Note:The power voltage varies within 0.1-0.2V,it is normal.

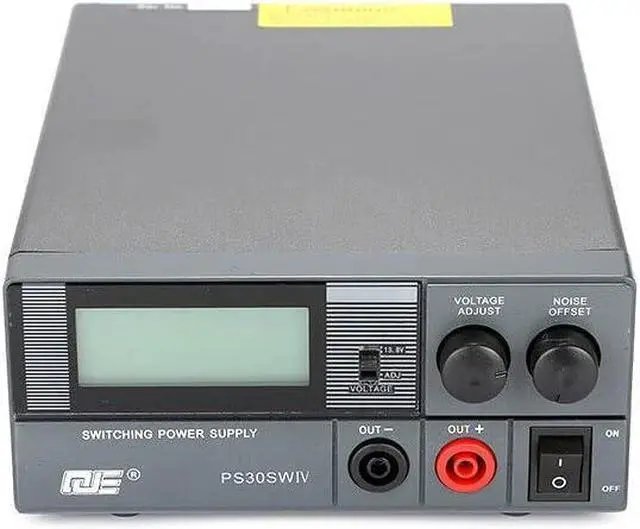

Panel function description:
1:Power main switch
2:Filter noise adjust
3:DC voltage output adjust
4:LCD voltage output aadjust
5:DC output positive
6:DC output negative
7:Current indicator
8:DC output positive negative wiring terminal
9:Cooling fan(temperature control)
10:Fuse
Package List:
- 1 x PS30SWIV power supply
- Model: PS30SWIV
- Dimenion:155(W) x 70(H) x 205(D) mm
- Weight:2.0kg
- Output voltage:9- 15V DC adjustable,sitable around 13.8V DC
- Output current:30A (max)
- Ripple and noise: <10mV effective value
- Overvoltage protection: 16V, +/-0.5V
- Power:230V AC / 50Hz
- Instrument type:LED digital meter
Note:The power voltage varies within 0.1-0.2V,it is normal.
Panel function description:
1:Power main switch
2:Filter noise adjust
3:DC voltage output adjust
4:LCD voltage output aadjust
5:DC output positive
6:DC output negative
7:Current indicator
8:DC output positive negative wiring terminal
9:Cooling fan(temperature control)
10:Fuse
Package List:
- 1 x PS30SWIV power supply
