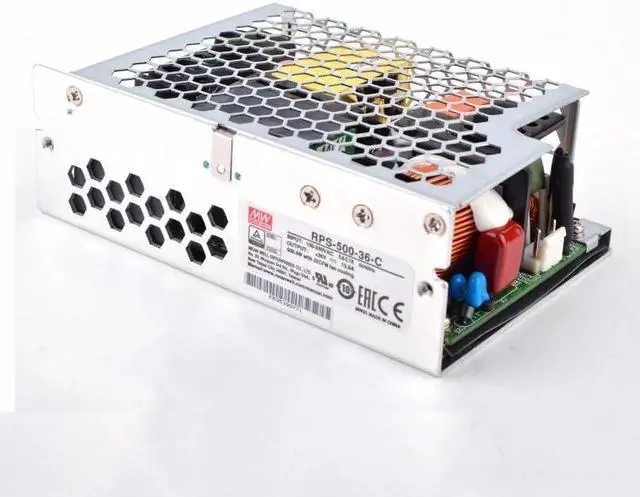

Mean Well RPS-500-36-C 500.4W Reliable Green Medical Power Supply RPS-500 36V 13.9A
- Welcome to visit, the main picture above the product specifications, please read carefully, have any questions can consult us, we will answer for you.If you need to purchase more quantities, please contact customer service.

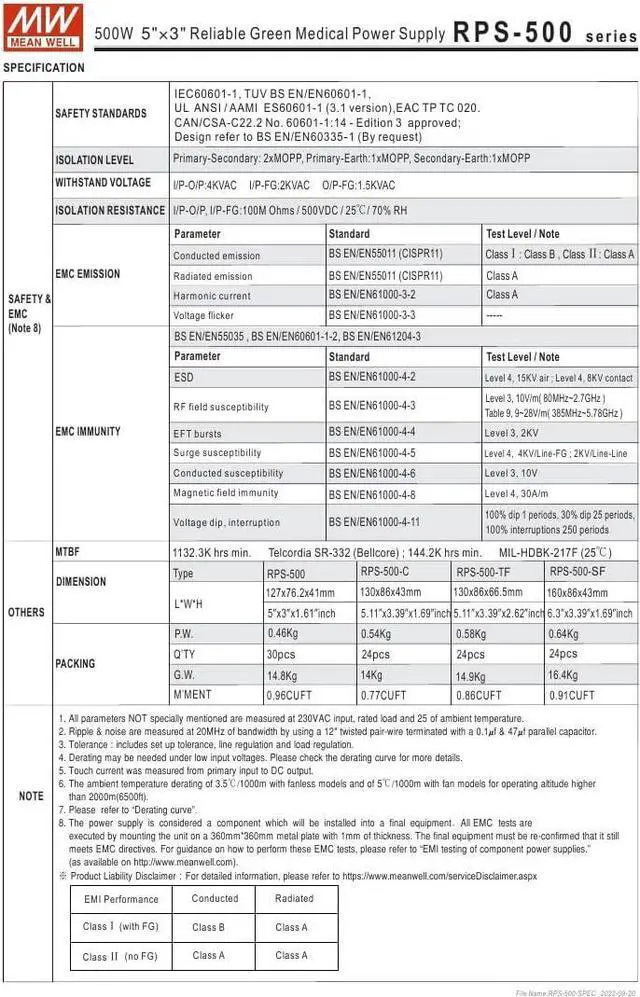

- Medical safety approved (2 x MOPP) accroding to ANSI/AAMI ES60601-1 and lEC/BS EN/EN60601-1
- EMl for both Class 1 & Class II configuration

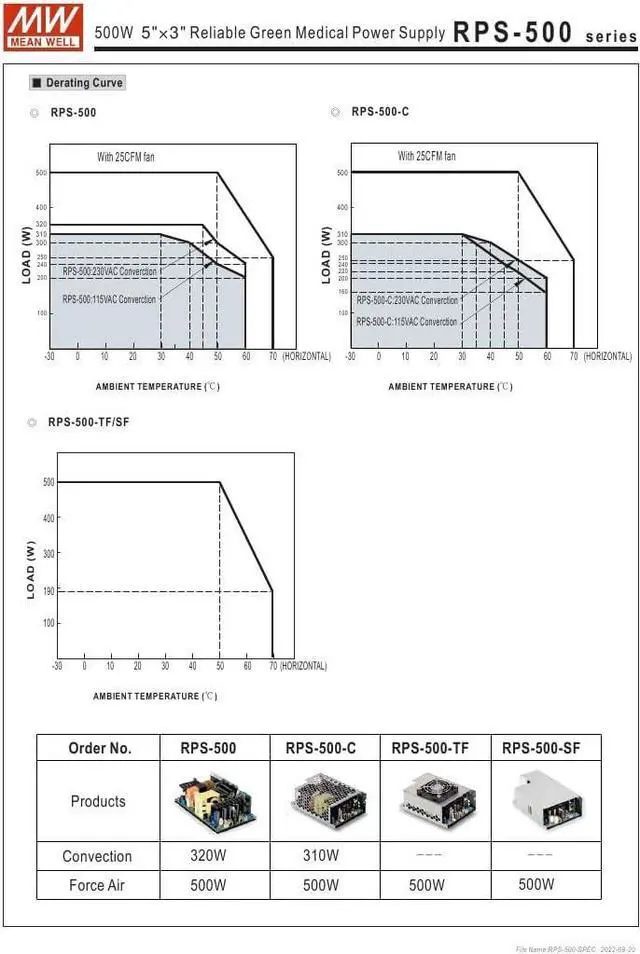

- -30~+70 wide range operating temperature
- No load power consumption<0.5W by PS_ON control
- High efficiency up to 94%
- Protections: Short circuit / Overload / Over voltage lOver temperature
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

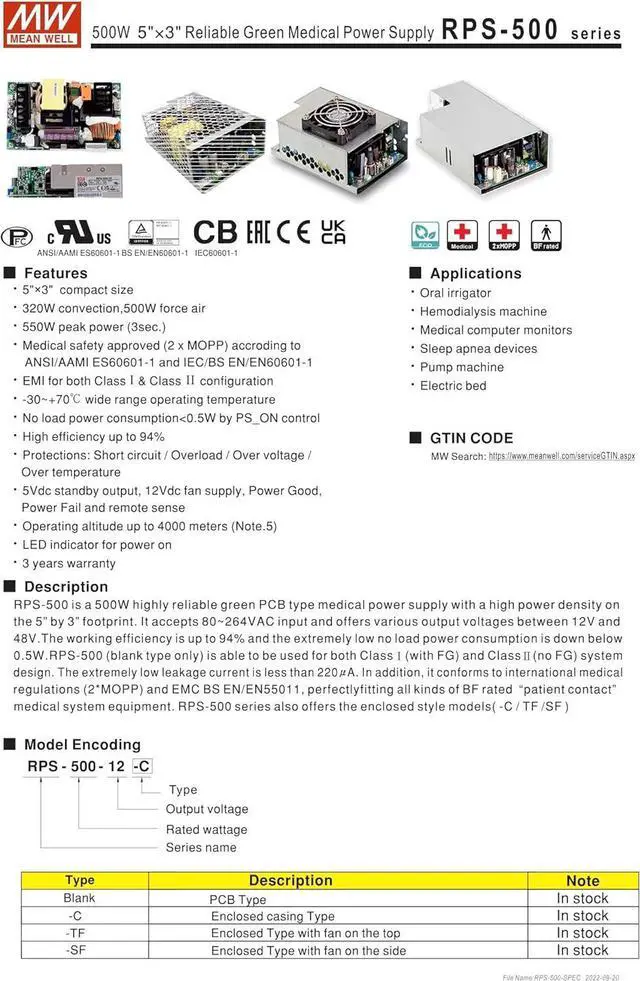

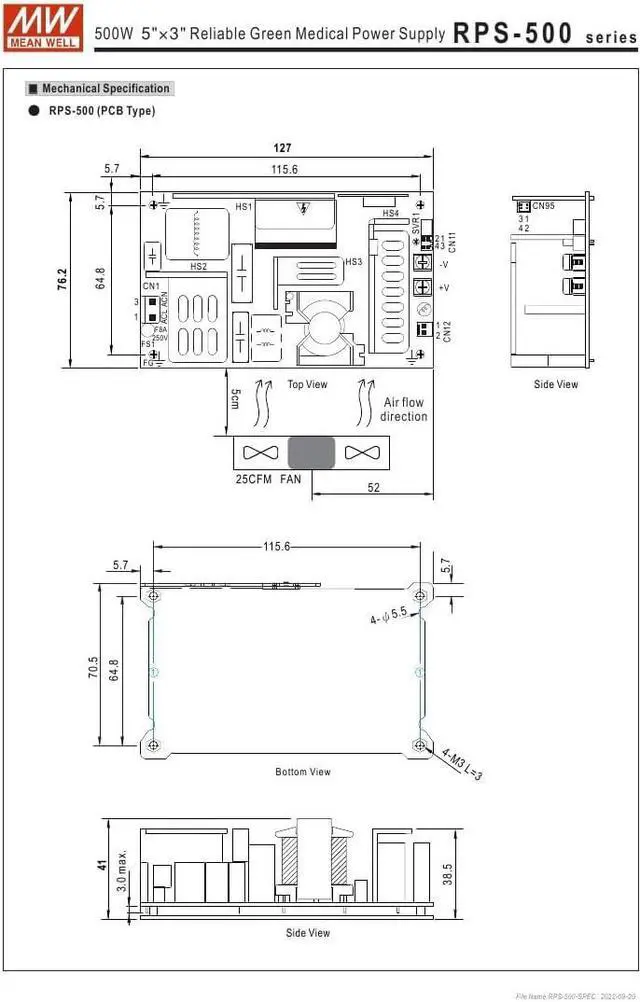

RPS-500 is a highly reliable green PCB type medical power supply with a high power density onthe 5" by 3" footprint. It accepts 80~264VAC input and offers various output voltages between 12V and48V.The working efficiency is up to 94% and the extremely low no load power consumption is down below0.5W.RPS-500 (blank type only) is able to be used for both Class I (with FG) and Class(no FG)systemdesign.The extremely low leakage current is less than 220uA.In addition, it conforms to international medicalregulations(2*MOPP) and EMC BS EN/EN55011, perfectlyfitting all kinds of BF rated patient contact"medicalsystem equipment.RPS-500 series also offers the enclosed style models(-C/TFISF)
