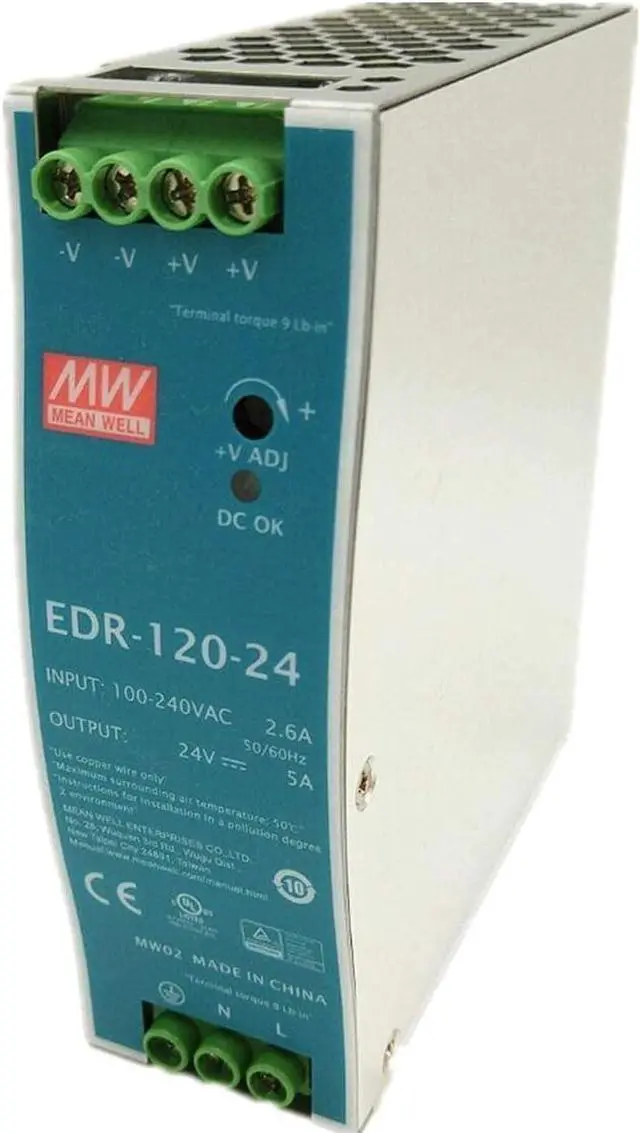

MW Mean Well EDR-120*6PCS 120W Single Output Industrial DIN Rail DC Switching Power Supply for Monitoring LED Strips (EDR-120-24)
- The EDR-120 series meets the relevant certifications of industrial control equipment (UL508TUVEN62368-1 and others), and is a highly competitive power supply solution for industrial applications.
- 100% original EDR-120W|(12V/10A).(24V/5A).(48V/2.5A) For Industrial automation control, manufacturing/electromechanical equipment
- The metal shell has good heat dissipation, stable operation in the environment of -20? to 60?, and the efficiency is as high as 88.5%
- Input 90-264Vac, in line with German industrial standard thin economical power supply
- More than 85% of MW's(MEAN WELL's) products can be shipped within 24 hours, supporting mass wholesale. 30 years of well-known standard power supply brand, 24 hours fast after-sales support from countries in Asia, Europe and America.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Features:
·Universal AC input/Full range
·Protections: Short circuit/Overload/Over voltage/ Over temperature
·Cooling by free air convection
·Can be installed on DIN rail TS-35/7.5 or 15
·UL 508(industrial control equipment) approved
·BS EN/EN61000-6-2(BS EN/EN50082-2)industrial immunity level
·100% full load burn-in test
·2 years warranty
Description
EDR-120 is one economical slim 120W DIN rail power supply eries, adapt to be installed on TS-35/7.5 or TS-35/15 mounting rails. The body is designed 40mm in width, which allows space saving inside the cabinets.The entire series adopts the full range AC input from 90 VAC to 264 VAC and conforms to BS EN/EN61000-3-2,the norm the European Union regulates for harmonic current.
EDR-120 is designed with metal housing that enhances the unit's power dissipation.With working efficiency up to 88.5%, the entire series can operate at the ambient temperature between-20? and 60? under air convection. lt is equipped with constant current mode for over-load protection, fitting various inductive or capacitive applications. The complete protection functions and relevant certificates for industrial control apparatus(UL508,TUV BS EN/EN62368-1,and etc.)make EDR-120 a very competitive power supply solution for industrial applications.
The EDR-120 series Suitable for Industrial control system, Semiconductor fabrication equipment, Factory automation, Electro-mechanical apparatus (such as Industrial robot, Distribution Cabinet, Environmental protection purification equipment control system, Automated factory, Smart Vision Industrial Product Inspection, Subway gate control).
·Universal AC input/Full range
·Protections: Short circuit/Overload/Over voltage/ Over temperature
·Cooling by free air convection
·Can be installed on DIN rail TS-35/7.5 or 15
·UL 508(industrial control equipment) approved
·BS EN/EN61000-6-2(BS EN/EN50082-2)industrial immunity level
·100% full load burn-in test
·2 years warranty
Description
EDR-120 is one economical slim 120W DIN rail power supply eries, adapt to be installed on TS-35/7.5 or TS-35/15 mounting rails. The body is designed 40mm in width, which allows space saving inside the cabinets.The entire series adopts the full range AC input from 90 VAC to 264 VAC and conforms to BS EN/EN61000-3-2,the norm the European Union regulates for harmonic current.
EDR-120 is designed with metal housing that enhances the unit's power dissipation.With working efficiency up to 88.5%, the entire series can operate at the ambient temperature between-20? and 60? under air convection. lt is equipped with constant current mode for over-load protection, fitting various inductive or capacitive applications. The complete protection functions and relevant certificates for industrial control apparatus(UL508,TUV BS EN/EN62368-1,and etc.)make EDR-120 a very competitive power supply solution for industrial applications.
The EDR-120 series Suitable for Industrial control system, Semiconductor fabrication equipment, Factory automation, Electro-mechanical apparatus (such as Industrial robot, Distribution Cabinet, Environmental protection purification equipment control system, Automated factory, Smart Vision Industrial Product Inspection, Subway gate control).
