LED DC Regulated Power Supply, Switch Power Supply LCD 110 220V Adjustable Red Copper Iron ABS for Farm (US Plug)

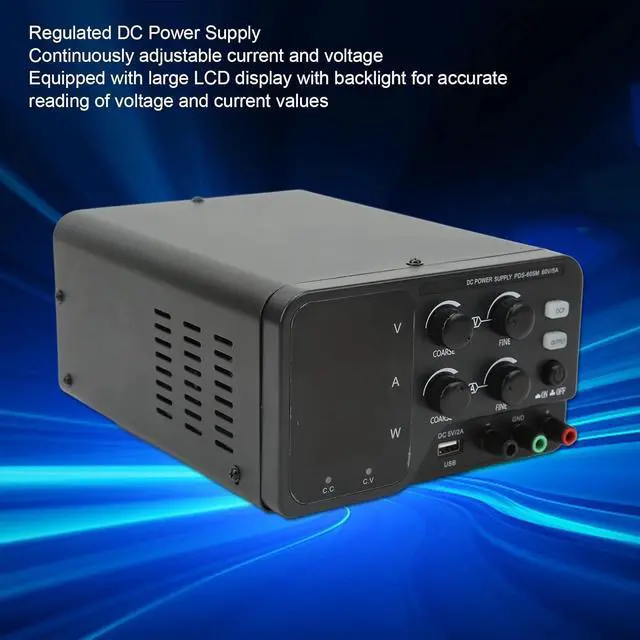

1. Continuously Regulated and LCD: The power supply is a regulated DC power supply with continuously adjustable current and voltage, with a large LCD display with backlight for accurate reading of voltage and current values.

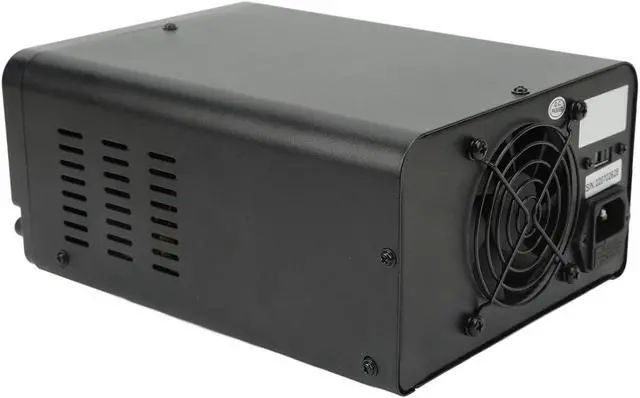

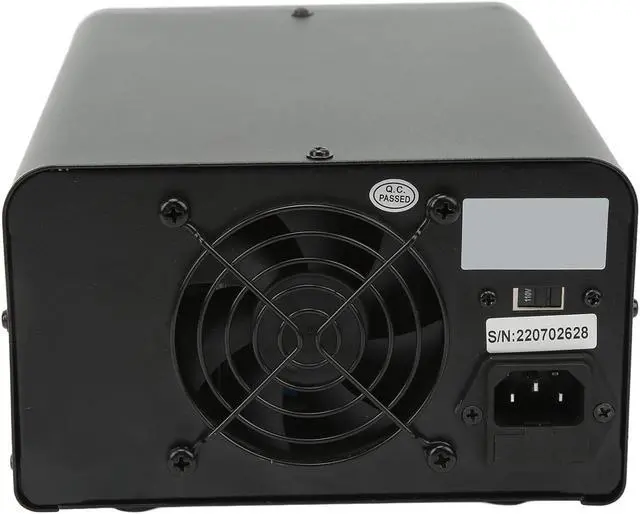

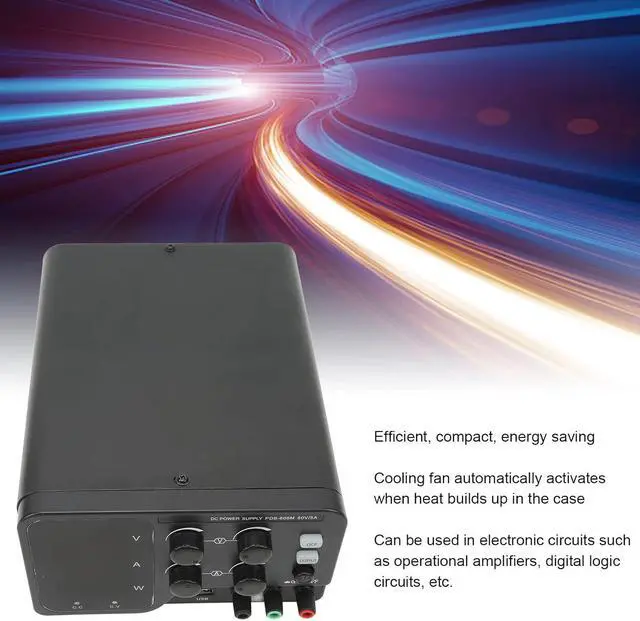

2. Cooling Fan: When heat builds up inside the case, the intelligent thermal will activate the cooling fan to reduce the temperature when the operating temperature is higher than 122 or 50. This regulated DC power supply can be used in electronic circuits such as operational amplifiers and digital logic circuits.

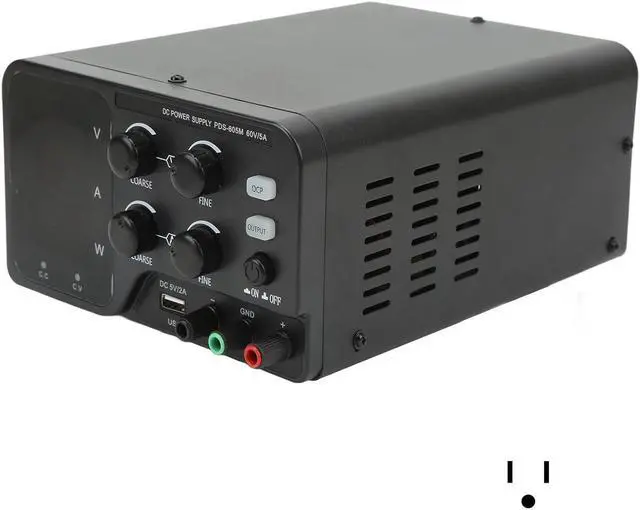

3. Accurate Encoder Knob Setting Values: This regulated DC power supply requires only voltage and current settings. You can press the voltage and current encoder knobs to select the number to be adjusted and then turn the knob to set the value from 0 to 9.
4. Efficient and Energy Saving: The encoder switch of this regulated DC power supply replaces the potentiometer switch, making your work easier, more accurate and efficient, efficient, compact, energy saving.
5. Multiple : The DC power supply is reliable and with excellent electronic components and many safety measures, leakage , thermal , overload and short circuit .

Specification:
Item Type: Switch Voltage Regulated DC Power Supply
Material: Red Copper, Iron, ABS
Input Voltage: 110 220V Adjustable Voltage
Working Environment: -10-40 Humidity Storage Conditions: -20-80 Humidity Voltage Output: 0-60V
Voltage Resolution: 0.01V
Voltage Display Accuracy: ±0.3%FS
Current Output: 0-5A
Current Resolution: 0.01A
Current Display Accuracy: ±0.5%FS
Power Effect
Cv0.5%FS +20mV
Cc0.5%FS+10mA
Load Effect
Cv0.5%FS +20mV
Cc0.5%FS+10mA
Ripple And Noise
Cv35mV R.M.S
Cc30mA R.M.S
Display Mode And Accuracy: 4 Bit LED Digital Display, Voltage Reality Accuracy ±0.3%FS
Current Display Accuracy: ±0.5%FS
