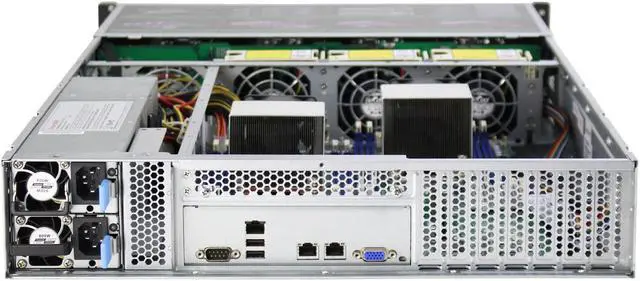

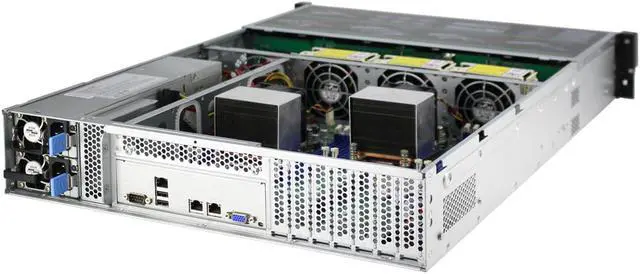

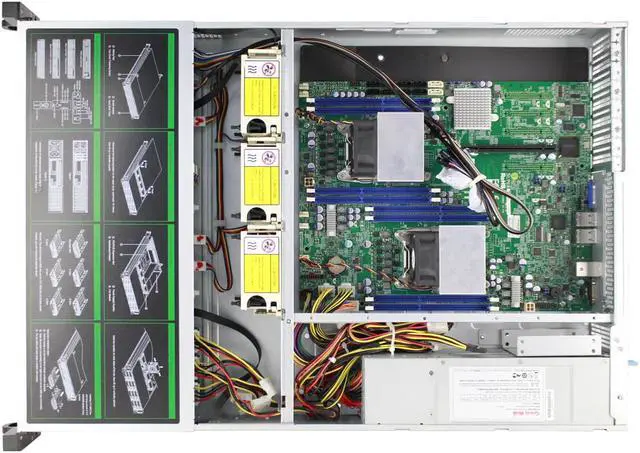

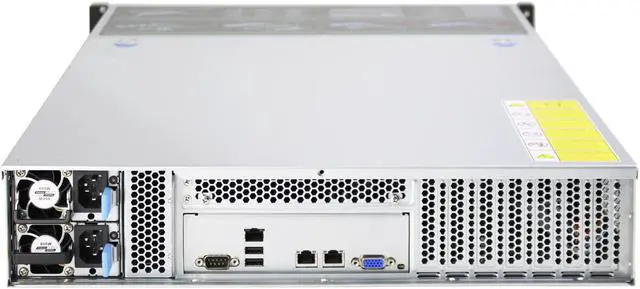

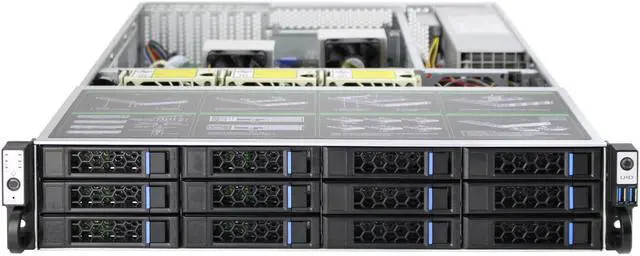

2U Storage Server Chassis 2U Rackmount Hotswap server Case 12 hard disk 6Gb sas backplane storage server empty chassis
- Dimensions(mm): 437.5mm x 560mm x 88mm, standard 19" rackmount chassis.
- Materials: 1.0mm SGCC Zinc-Coated Steel.
- Drivers bay: 12 x 3.5" hot-swap SATA (II or III) / SAS (II or III) 6Gb/s drive bays.
- PSU form factor: 2U standard power suppy or redundant power supply.
- M/B form factor: Support MAX 12" x 10.5" motherboard.
- Epansion space: 7 full-height PCI/PCIE expansion slots.
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Components Specification
Dimensions (mm) 437.5 mm x 560mm x 88mm, standard 19" rackmount chassis.
Materials 1.0 mm SGCC Zinc-Coated Steel.
Backplane 6Gb/s SATA backplanet, / 6Gb/s MINI SAS backplane, with temperature control chipset. / 12Gb/s MINI SAS backplane, with temperature control chipset.
Drivers bay 12 x 3.5" hot-swap SATA (II or III) / SAS (II or III) 6Gb/s drive bays.
Cooling Fan Optional 4pcs 8CM fan position, standard quotation with 3pcs 8038 ball bearing fans.
PSU form factor 2U standard power suppy or redundant power supply.
M/B form factor Support MAX 12" x 10.5" motherboard.
Epansion space 7 full-height PCI/PCIE expansion slots.
Connector Two front accessible USB 2.0 ports(Optional USB 3.0 ).
System Control
Power LED*1, Reset*1, Power SW*1, HDD LED*1, NIC LED*2, UID LED*1, UID SW*1, OH/FAN Fail LED*1, Power Fail LED*1.
Applicarion
Cloud storage, cloud computing, big data, security monitoring, LOTetc.
Product Features:
1. Conformed with EMC design standard to prevent from electromagnetic interference.
2. Support motherboard size up to 12" x 10.5", and 12* 3.5"HDD bays, 2U standard power suppy or redundant power supply.
3. The chassis has good ventilation system 3pcs 8038 ball bearing fans to make sure the system work steadily.
Dimensions (mm) 437.5 mm x 560mm x 88mm, standard 19" rackmount chassis.
Materials 1.0 mm SGCC Zinc-Coated Steel.
Backplane 6Gb/s SATA backplanet, / 6Gb/s MINI SAS backplane, with temperature control chipset. / 12Gb/s MINI SAS backplane, with temperature control chipset.
Drivers bay 12 x 3.5" hot-swap SATA (II or III) / SAS (II or III) 6Gb/s drive bays.
Cooling Fan Optional 4pcs 8CM fan position, standard quotation with 3pcs 8038 ball bearing fans.
PSU form factor 2U standard power suppy or redundant power supply.
M/B form factor Support MAX 12" x 10.5" motherboard.
Epansion space 7 full-height PCI/PCIE expansion slots.
Connector Two front accessible USB 2.0 ports(Optional USB 3.0 ).
System Control
Power LED*1, Reset*1, Power SW*1, HDD LED*1, NIC LED*2, UID LED*1, UID SW*1, OH/FAN Fail LED*1, Power Fail LED*1.
Applicarion
Cloud storage, cloud computing, big data, security monitoring, LOTetc.
Product Features:
1. Conformed with EMC design standard to prevent from electromagnetic interference.
2. Support motherboard size up to 12" x 10.5", and 12* 3.5"HDD bays, 2U standard power suppy or redundant power supply.
3. The chassis has good ventilation system 3pcs 8038 ball bearing fans to make sure the system work steadily.
