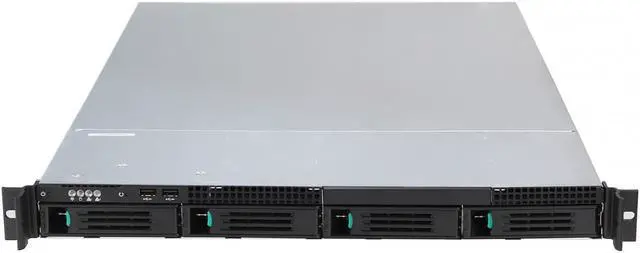

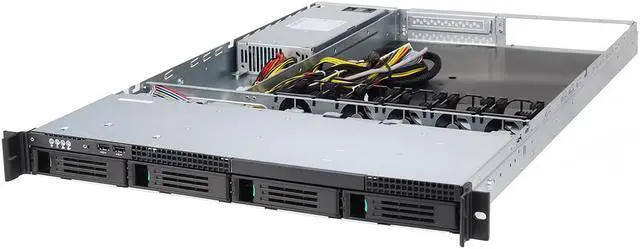

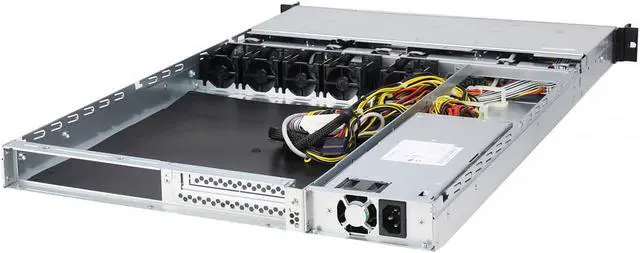

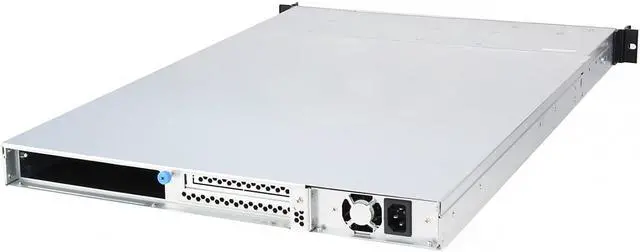

4 bay hot swappable storage server 1U chassis 6GB/SATA backplane standard 500W power supply empty chassis
- Components Specification
- Dimensions(mm) 670mm(D) ×432mm(W) × 44mm(H), standard 19" rackmount chassis.
- Materials 1.0mm SGCC Zinc-Coated Steel.
- Backplane 6Gb/s SATA backplane with temperature control chipset,SGPIO.
- Drivers bay 4 x 3.5" hot-swap, 6Gb/s drive bays.
- CD-ROM bays
- Handle and lug are black, other steel colors.
- Cooling Fan 4pcs 40mm fanS.
- PSU form factor 1U standard power suppy.
- M/B form factor Support MAX 12" x 13" motherboard.
- Epansion space 1 full-height PCI/PCIE expansion slots.
- Connector Two front accessible USB2.0 ports(Optional USB3.0).
- System Control
- Power LED*1, Reset*1, Power SW*1,HDD LED*1,NIC LED*2
- Applicarion
- Srorage,security monitoring,cloud computing,LOTetc.
- Product Features:
- 1.Conformed with EMC design standard to prevent from electromagnetic interference.
- 2.Support motherboard size up to 12" x 13",and 4*3.5"HDD bays,1U standard power suppy.
- 3.The chassis has good ventilation system 4pcs 4028 AVC ball bearing fans to make sure the system work steadily.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Components Specification
Dimensions (mm) 670mm (D) ×432mm (W) × 44mm (H), standard 19" rackmount chassis.
Materials 1.0 mm SGCC Zinc-Coated Steel.
Backplane 6Gb/s SATA backplane with temperature control chipset, SGPIO.
Drivers bay 4 x 3.5" hot-swap, 6Gb/s drive bays.
CD-ROM bays
Handle and lug are black, other steel colors.
Cooling Fan 4pcs 40mm fanS.
PSU form factor 1U standard power suppy.
M/B form factor Support MAX 12" x 13" motherboard.
Epansion space 1 full-height PCI/PCIE expansion slots.
Connector Two front accessible USB 2.0 ports(Optional USB 3.0 ).
System Control
Power LED*1, Reset*1, Power SW*1, HDD LED*1, NIC LED*2
Applicarion
Srorage, security monitoring, cloud computing, LOTetc.
Product Features:
1. Conformed with EMC design standard to prevent from electromagnetic interference.
2. Support motherboard size up to 12" x 13", and 4* 3.5"HDD bays, 1U standard power suppy.
3. The chassis has good ventilation system 4pcs 4028 AVC ball bearing fans to make sure the system work steadily.
Dimensions (mm) 670mm (D) ×432mm (W) × 44mm (H), standard 19" rackmount chassis.
Materials 1.0 mm SGCC Zinc-Coated Steel.
Backplane 6Gb/s SATA backplane with temperature control chipset, SGPIO.
Drivers bay 4 x 3.5" hot-swap, 6Gb/s drive bays.
CD-ROM bays
Handle and lug are black, other steel colors.
Cooling Fan 4pcs 40mm fanS.
PSU form factor 1U standard power suppy.
M/B form factor Support MAX 12" x 13" motherboard.
Epansion space 1 full-height PCI/PCIE expansion slots.
Connector Two front accessible USB 2.0 ports(Optional USB 3.0 ).
System Control
Power LED*1, Reset*1, Power SW*1, HDD LED*1, NIC LED*2
Applicarion
Srorage, security monitoring, cloud computing, LOTetc.
Product Features:
1. Conformed with EMC design standard to prevent from electromagnetic interference.
2. Support motherboard size up to 12" x 13", and 4* 3.5"HDD bays, 1U standard power suppy.
3. The chassis has good ventilation system 4pcs 4028 AVC ball bearing fans to make sure the system work steadily.
