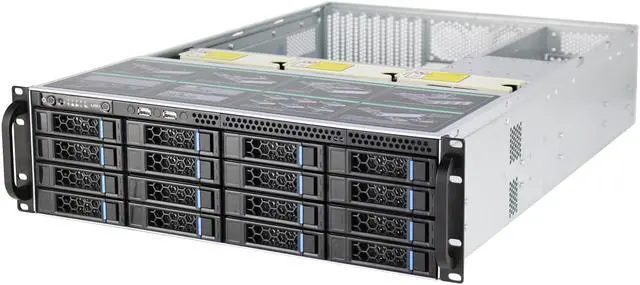

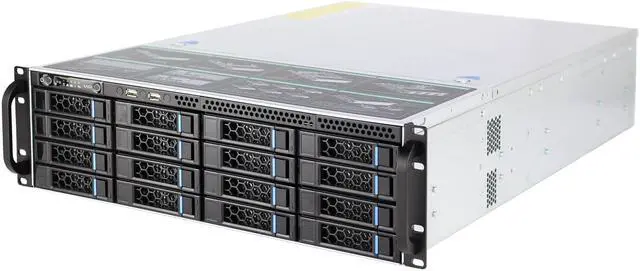

3U hot swappable 16 hard disk 6GB/SAS backplane storage server empty chassis

Components Specification
Dimensions (mm) 437.5 mm x 560mm x 132mm, standard 19" rackmount chassis.
Materials 1.0 mm SGCC Zinc-Coated Steel.
Backplane 6Gb/s MINI SAS backplane, with temperature control chipset. / 12Gb/s MINI SAS backplane, with temperature control chipset. / 6Gb/s Expander backplane, with temperature control chipset. / 12Gb/s Expander backplane, with temperature control chipset.
Drivers bay 16 x 3.5 ' hot-swappable SATA (II or III) / SAS (II or III) 6Gb/s drive bays.
Cooling Fan Standard quotation with 3pcs 12038L ball bearing fans.

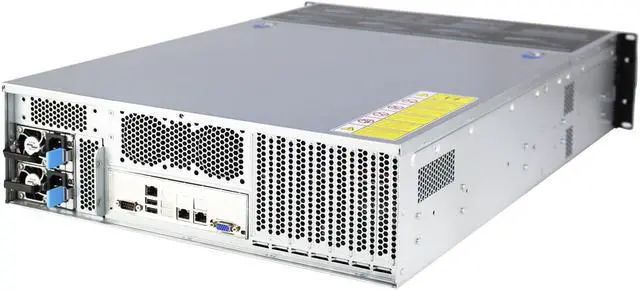

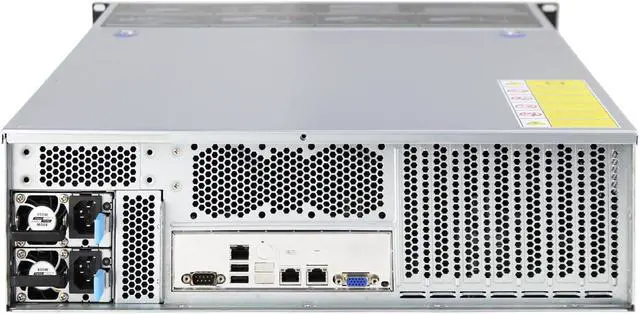

PSU form factor 2U standard power suppy or redundant power supply.
M/B form factor Support MAX 12" x 10.5" motherboard.
Epansion space 7 full-height PCI/PCIE expansion slots.

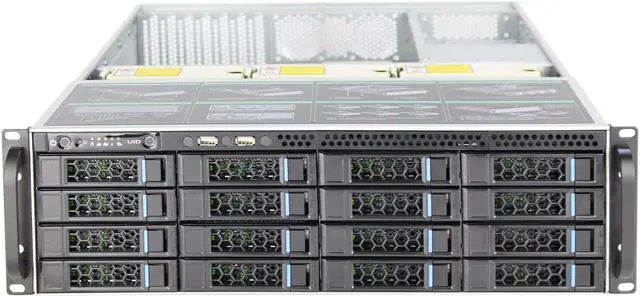

Connector Two front accessible USB 2.0 ports(Optional USB 3.0 ).
System Control
Power LED*1, Reset*1, Power SW*1, HDD LED*1, NIC LED*2, UID LED*1, UID SW*1, OH/FAN Fail LED*1, Power Fail LED*1.

Applicarion
Cloud storage, cloud computing, big data, security monitoring, LOTetc.


Product Features:
1. Conformed with EMC design standard to prevent from electromagnetic interference.

2. Support motherboard size up to 12" x 10.5", and 16* 3.5"HDD bays, 2U standard power suppy or redundant power supply.

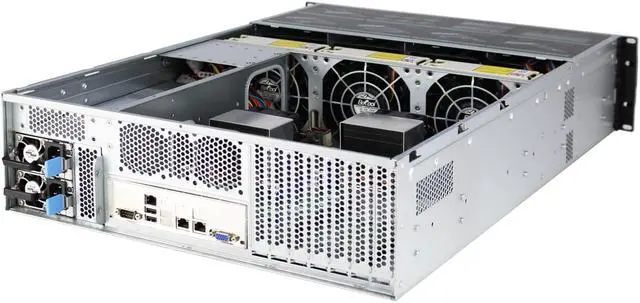

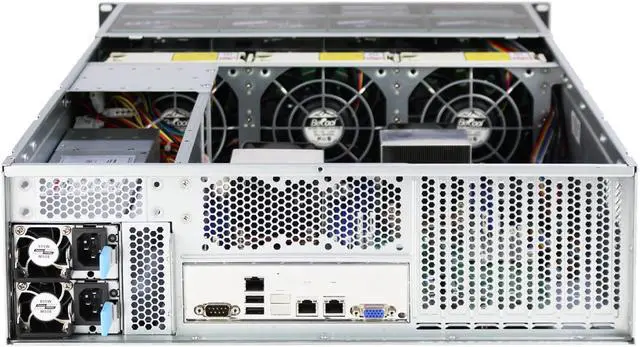

3. The chassis has good ventilation system 3pcs 12038L ball bearing fans to make sure the system work steadily.
