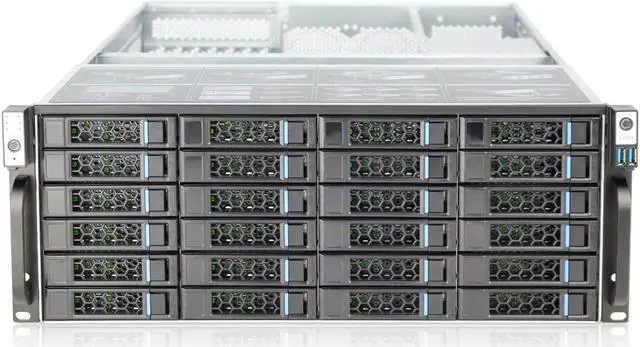

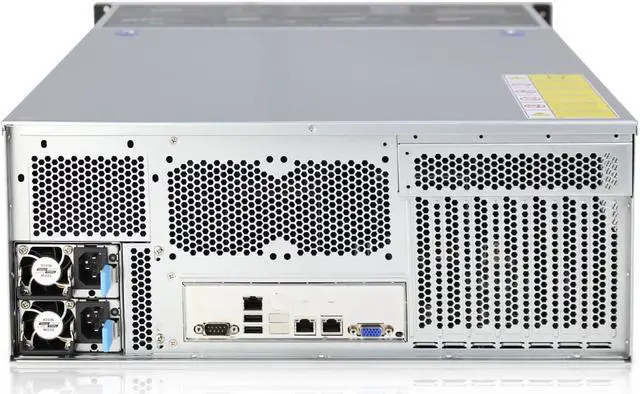

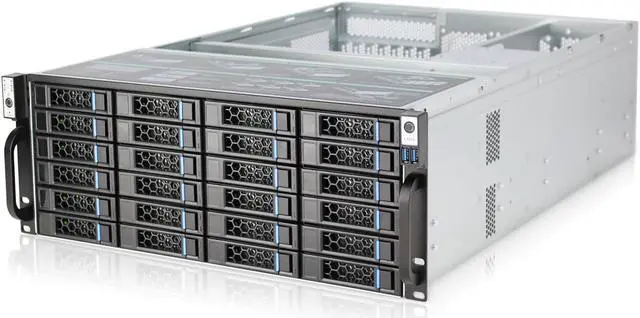

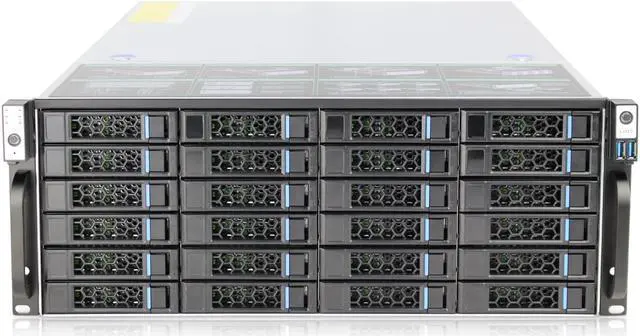

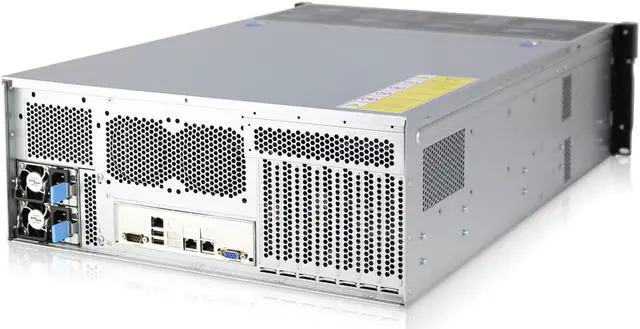

S465-24 6GB/Expander expansion backplane Distributed storage server 24 drawer 4U hot plug chassis Air cooled empty chassis

Components Specification
Dimensions (mm) 437.5 mm x 650mm x 176.5 mm, standard 19" rackmount chassis.
Materials 1.0 mm SGCC Zinc-Coated Steel.
Backplane 6Gb/s MINI SAS backplane, with temperature control chipset. / 12Gb/s MINI SAS backplane, with temperature control chipset. / 6Gb/s Expander backplane, with temperature control chipset. / 12Gb/s Expander backplane, with temperature control chipset.
Drivers bay 24 x 3.5 ' hot-swappable SATA (II or III) / SAS (II or III) 6Gb/s drive bays.
Cooling Fan Standard quotation with 3pcs 12038H ball bearing fans.
PSU form factor Standard PS2 power supply or redundant power supply.
M/B form factor Support MAX 12" x 13" motherboard.
Epansion space 7 full-height PCI/PCIE expansion slots.
Connector Two front accessible USB 2.0 ports(Optional USB 3.0 ).
System Control
Power LED*1, Reset*1, Power SW*1, HDD LED*1, NIC LED*2, UID LED*1, UID SW*1, OH/FAN Fail LED*1, Power Fail LED*1.

Applicarion
Cloud storage, cloud computing, big data, security monitoring, LOTetc.


Product Features:
1. Conformed with EMC design standard to prevent from electromagnetic interference.

2. Support motherboard size up to 12" x 13", and 24* 3.5"HDD bays, Standard PS2 power supply or redundant power supply.
3. The chassis has good ventilation system 3pcs 12038H ball bearing fans to make sure the system work steadily.
