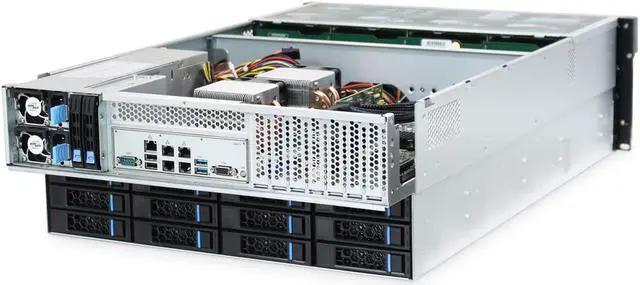

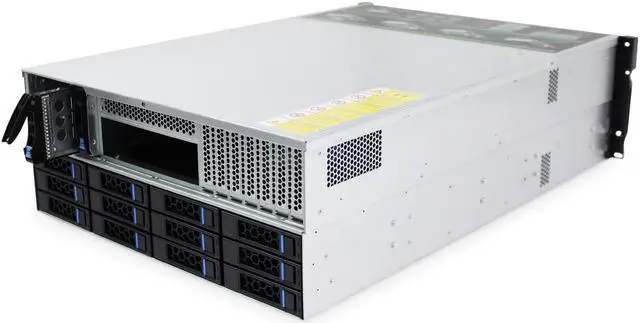

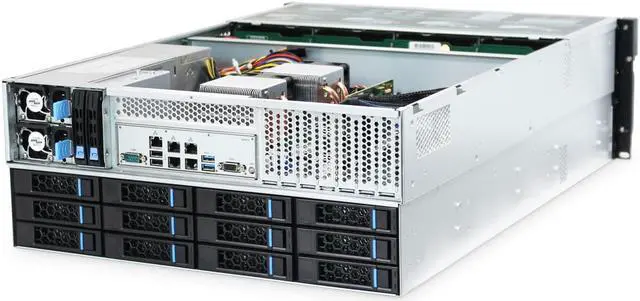

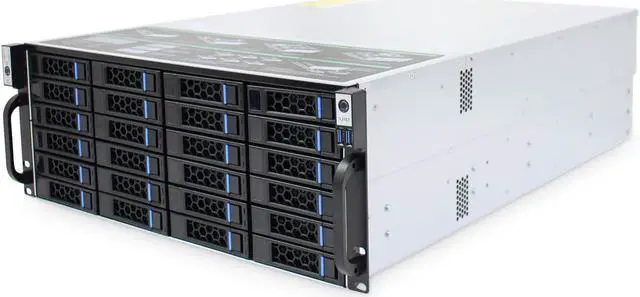

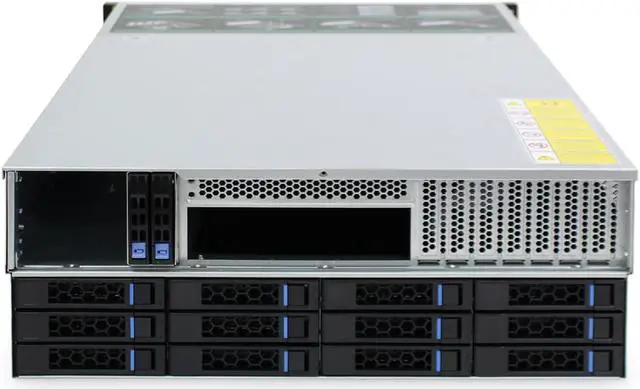

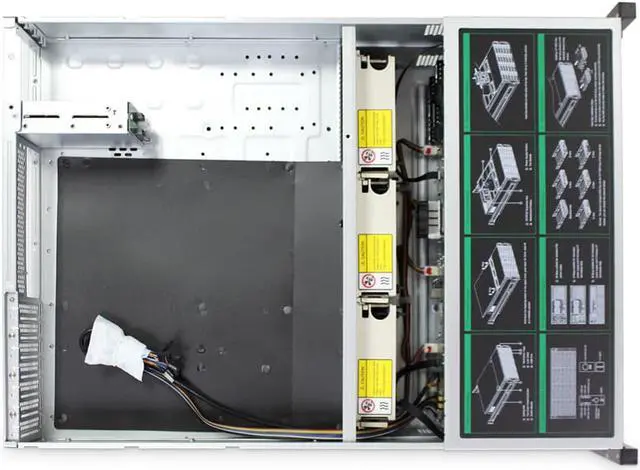

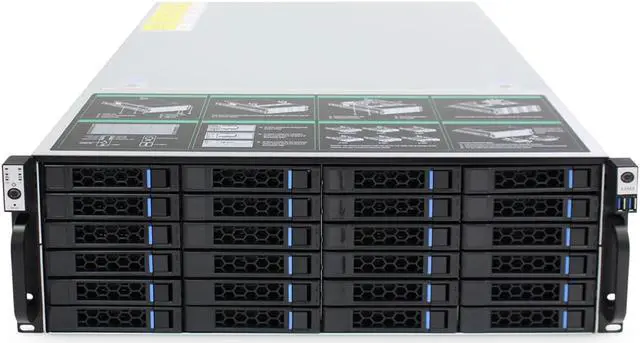

S465-36 4U hot swappable 36 hard disk box 6GB/Expander backplane storage server chassis empty

Components Specification
Dimensions (mm) 437.5 mm x 650mm x 176.5 mm, standard 19" rackmount chassis.
Materials 1.0 mm SGCC Zinc-Coated Steel.
Backplane 6Gb/s MINI SAS backplane, with temperature control chipset. / 12Gb/s MINI SAS backplane, with temperature control chipset. / 6Gb/s Expander backplane, with temperature control chipset. / 12Gb/s Expander backplane, with temperature control chipset.
Drivers bay 36 x 3.5 ' hot-swappable SATA (II or III) / SAS (II or III) 6Gb/s drive bays.
Cooling Fan Standard quotation with 3pcs 12038H ball bearing fans and 4pcs 8038 ball bearing fans.
PSU form factor 2U standard power suppy or redundant power supply.
M/B form factor Support MAX 12" x 13" motherboard.
Epansion space 7 half-height PCI/PCIE expansion slots.
Connector Two front accessible USB 2.0 ports(Optional USB 3.0 ).
System Control
Power LED*1, Reset*1, Power SW*1, HDD LED*1, NIC LED*2, UID LED*1, UID SW*1, OH/FAN Fail LED*1, Power Fail LED*1.

Applicarion
Cloud storage, cloud computing, big data, security monitoring, LOTetc.


Product Features:
1. Conformed with EMC design standard to prevent from electromagnetic interference.

2. Support motherboard size up to 12" x 13", and 36* 3.5"HDD bays, 2U standard power suppy or redundant power supply.
3. The chassis has good ventilation system 3pcs 12038H ball bearing fans and 4pcs 8038 ball bearing fans to make sure the system work steadily.
