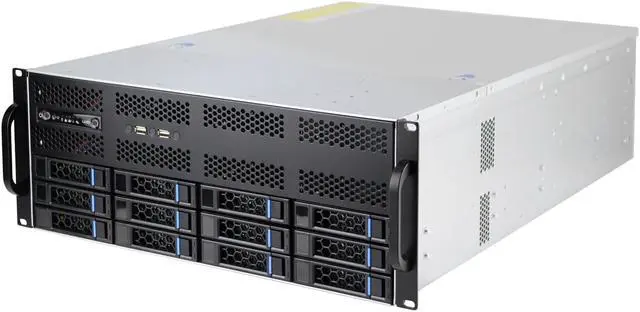

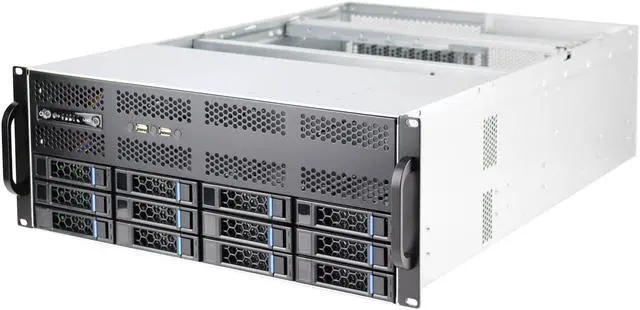

12 drawer chassis 4U hot swappable storage server 12GB/SAS backplane suitable for multi graphics card Ultramicro 386 * 330 large motherboard E-ATX empty chassis

Components Specification
Dimensions (WxDxH) 437.5 mm x 650mm x 176.5 mm, standard 19" rackmount chassis.
Materials Quality fine 1.0 mm SGCC steel, anti-fingerprint.
Color Black painting in front panel, steel color in the body of chassis.
Drivers bay 12 x 3.5"HDD drive bays, Compatible with 2.5"HDD /SSD, Built in 2* 2.5"SSD.
Backplane 12Gb/s Expander backplane, with temperature control chipset (Optional 6Gb/s). / 12Gb/s MINI SAS backplane, with temperature control chipset (Optional 6Gb/s).
Cooling Fan Standard quotation with 3*12038H ball bearing fans, 4*8038 fans position on rear panel standard with 2*8038 fans.
PSU form factor Support CRPS power supply below 2000w standard with power supply back panel.
M/B form factor Support MAX 12" x 13" motherboard.
Epansion space Standard with 11 full-height vertical PCI/PCIE slots.
Connector Two front accessible USB 2.0 ports(Optional USB 3.0 ).
System Control
Power LED*1, Reset*1, Power SW*1, HDD LED*1, NIC LED*2, UID LED*1, UID SW*1, OH/FAN Fail LED*1, Power Fail LED*1.

Applicarion
AI, edge computing, deep learning, rendering, GPU computing, etc.


Product Features:
1. Conformed with EMC design standard to prevent from electromagnetic interference.

2. Support motherboard size up to 12''*13'', and 12 x 3.5 'HDD drive bays, support CRPS power supply below 2000w standard with power supply back panel.
3. The chassis has good ventilation system 3*12038H ball bearing fans, 4*8038 fans position on rear panel standard with 2*8038 fans to make sure the system work steadily.
