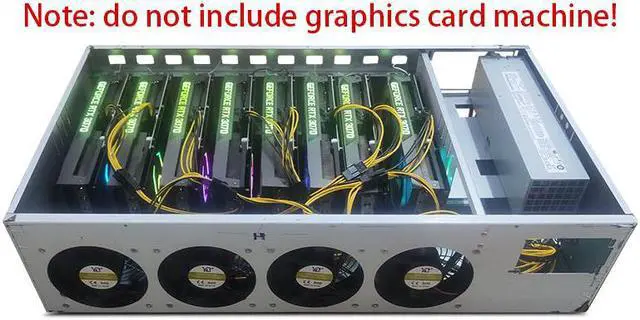

The mining rig is designed to maintain GPU cooling from ground to ground through four powerful cooling fans. You can install 8 GPUs at the same time without worrying about heat dissipation. It comes with eight PCI-E and x16 slots and does not require a patch cable. We also tested the device with various GPUs to ensure its compatibility with various graphics cards. It is a stable machine, very easy to install and requires little maintenance, making it an ideal rig for large-scale expansion.
reminder:
You need to purchase and install your own PSU, hard drive, and GPU.
The hash rate may vary depending on the Internet connection and operating temperature.
In addition to the addition of additional GPUs, rig modifications not carried out with our support may lead to the interruption of our support. Please don't make changes unless instructed or unless you really know what you're doing.
You must select the power supply according to the number of graphics cards used.
We sell 1600W and 1800W power supplies for your choice.

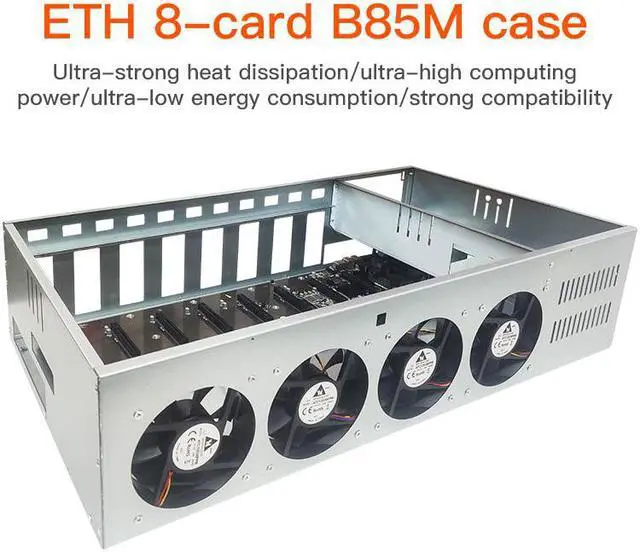

New version of mining case MC02 suitable for most of the mining case power supplies on the market (1U, 2U, ATX).

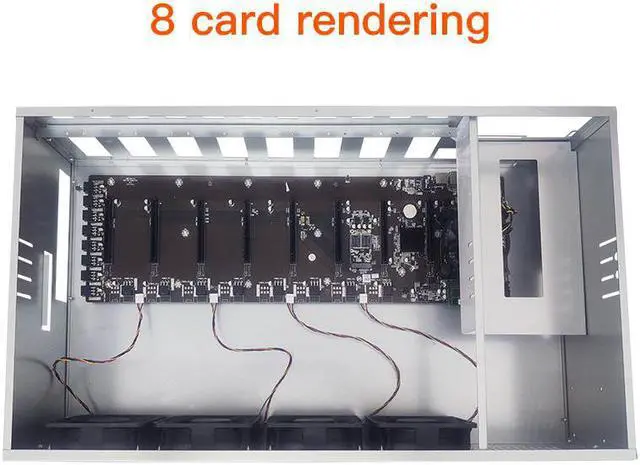

The mining barebone motherboard machine system come with 8 GPU ports, which means you can install 8 GPUs at the same time. With 8 GPUs working simultaneously, the performace of th BTC/ETH/ETC miner system will be greatly enhanced.
The GPU interface spacing is about 65mm, and the space is larger than other miners. Therefore, it will have better heat dissipation performance, which can ensure low power consumption, less heat generation, energy-saving, and safe use.

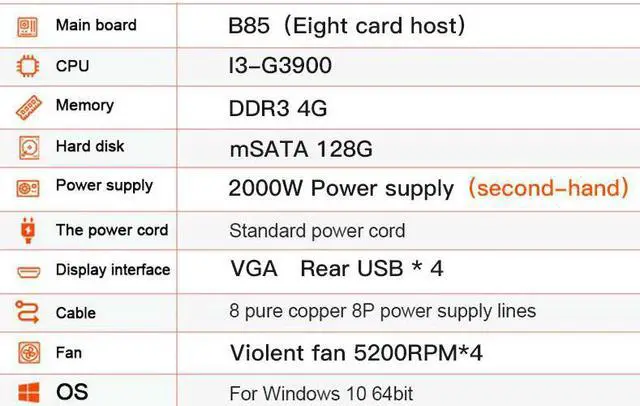

| PCI-E | 8 PCS, space 65mm |
|---|---|
| Power port | 6Pin x 8(Input), 6Pin x 8(output) |
| CPU | Intel |
| RAM | DDR3 4G |
| I/O panel | VGA/2 x USB2.0/2 x USB3.0/Network |
| Hark Disk | Support M-SATA/SLOI |
| OS | Linux/Windows |
| Fans | 4 x Fans (120 x 120 x 35mm,3000RPM,52dBA |
| Power Supply | Support ATX/2U/1U |

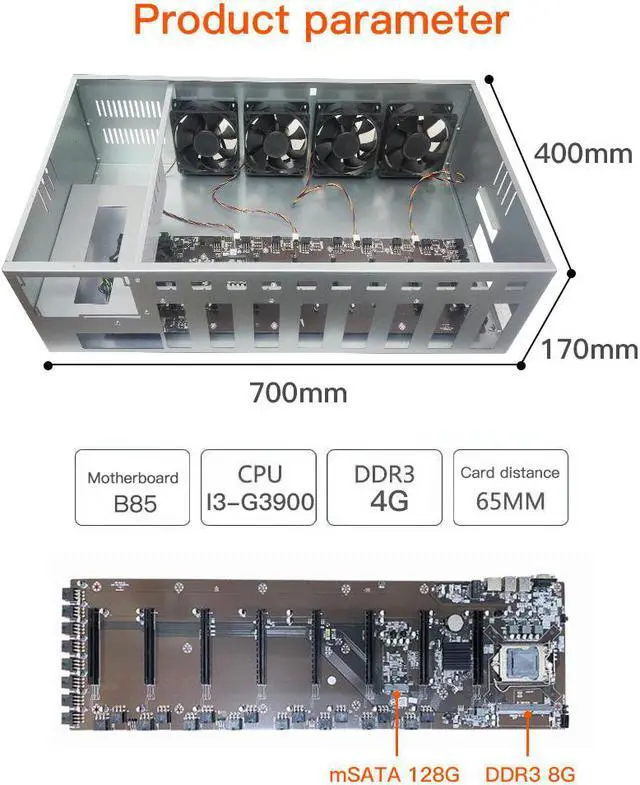

| Chassis size | 700*400*170mm |
