$892.99
Meet Your Seller

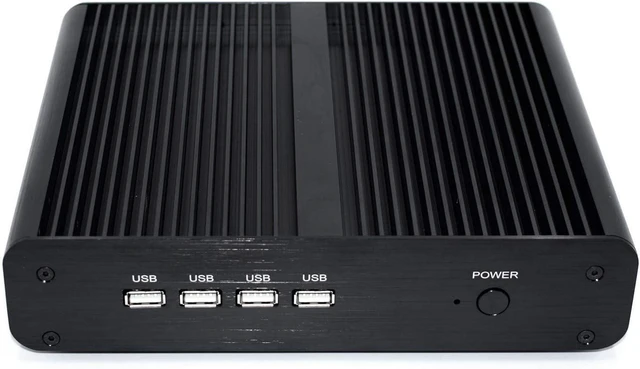

PARTAKER B16 Fanless Mini PC, Slim Desktop Computer, Intel i7 8550U/i7 8565U/i7 8559U 8th Gen. 4 Cores CPU, 8GB DDR4 RAM,128GB SSD, 4K 4096x2304, HD-MI, DP, Aluminum Alloy Case
- Intel 8th Generation i7-8550U CPU, 4 Cores, 8 Threads; Kaby Lake R; 8MB Cache, Base Frequency: 1.8GHz; Max Turbo Frequency: 4.0GHz.
- DDR4 2133MHz RAM,MSATA/M.2 NGFF SSD,300M Dual Band 2.4/5GHz Wireless Network Card
- Integrated Intel UHD Graphics 620, 4K: 4096x2304@24Hz; Full Gigabyte LAN, HDMI, DP, 4 USB 3.0, 4 USB 2.0, Audio in/output.
- Fanless, Smart Design, Full Metal Case, Silent Working, High Speed CPU & SSD, 2 Years Warranty.

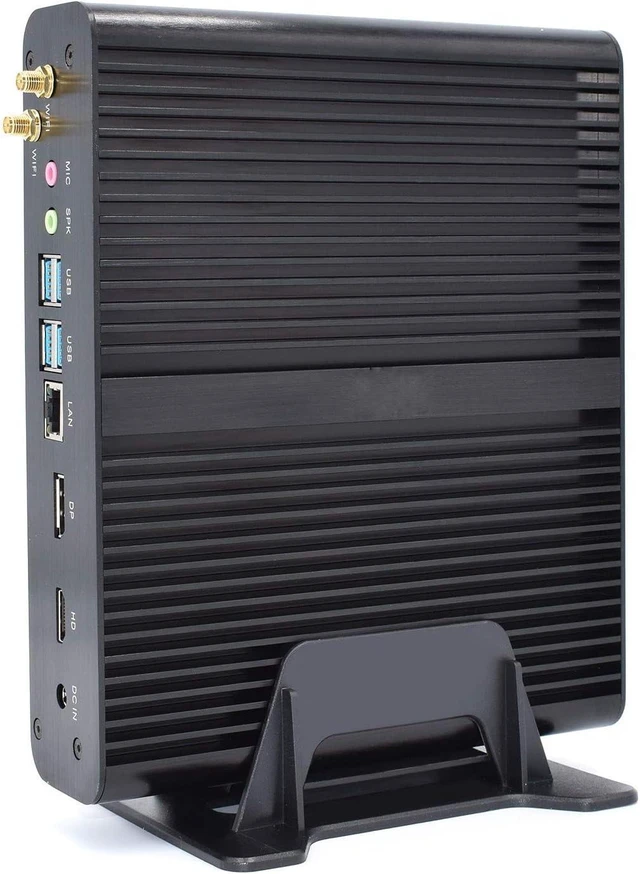

- What in Box: Mini Computer, Power Adapter, Power Cable, Wi-Fi Antennas, Mounting Bracket, Screws
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Model Number: Partaker B16
Color: Black
Version: Fanless
CPU: Intel Core I7 8565U
Material: Aluminum
Memory: 2* SO-DIMM DDR4-2400-2666, max. 64GB RAM

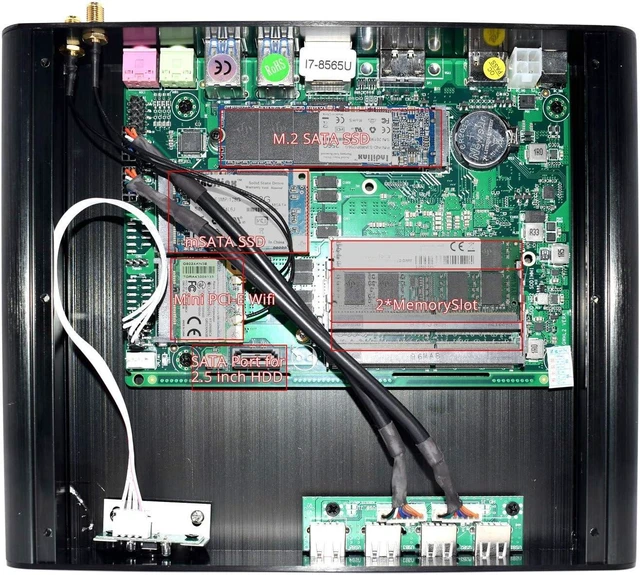

Storage1* Msata SSD+1* M.2 2280 SSD+1* 2.5 Inch HDD
Graphic: Intel UHD Graphics 620
Expansion1 * MSATA3.0, 6Gb/s; 1 * SATA3.0 , 6Gb/s; 1* ngff M.2 2280 (sata/nvme) SSD; 1 * WiFi module
NIC: RTL8168/8111/8112 PCI-E 10/100/1000 LAN
Sound card: ALC892 chip, providing 6-channel sound
MINI PCIE: 2* MINI PCIE interfaces, full height support MSATA solid state hard drive, Half height support MINI PCIE wireless network card
WIFI: 300M WIFI built-in module, dual external antennas enhanced signal 802.11.b/g/n

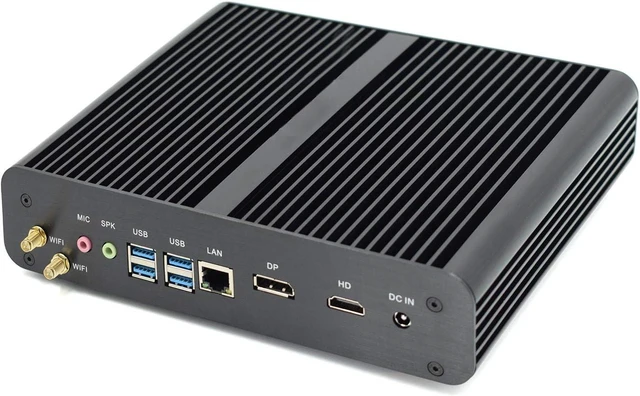

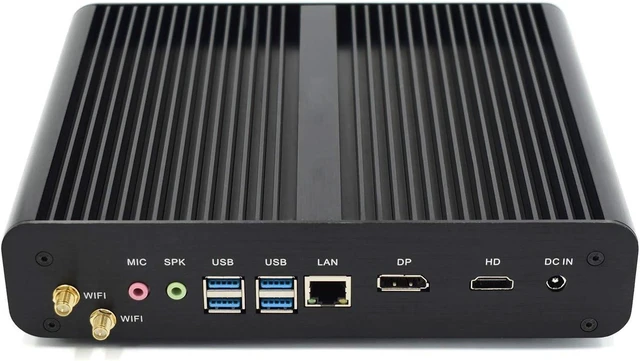

I/O: 1* DP + 1 * HDMI + 4* USB 3.0 + 1 * USB2.0 + 1* Card Reader + 1 * LAN + Audio + DC In
Power supply: DC IN 12V/19V power supply 5A
Size: 22.5* 18.5* 4.5cm
Net Weight: 2.5kgs
Temperature:
Operating Temperature: 0°C~70°C (32°F~140°F)
Storage Temperature: -20°C~80°C (-68°F~176°F)
Relative Humidity: 10%~90% (non-condensing)
Function1. Support diskless boot
2. Support Restore AC Power Loss
3. Support dual screen (DP+HDMI) for simultaneous display or synchronous different display
4. HDMI 1.4 4K: 4096x2304@30Hz
5. DP 1.2 4K: 4096x2304@60Hz, support DP to VAG transfer only (Not support DP to HDMI transfer)
System SupportWindows 10,Linux Ubuntu,Vxworks etc;
And hardware supports kodi, virtual system as proxmox/vmware/esxi server etc
System Default Option: Windows 10 pro in English
ATTENTION: Barebone, Single RAM, Single SSD or SSD+HDD without any system. Linux ubuntu or other OS, Do need to leave us message on the order, thank you.
Color: Black
Version: Fanless
CPU: Intel Core I7 8565U
Material: Aluminum
Memory: 2* SO-DIMM DDR4-2400-2666, max. 64GB RAM
Storage1* Msata SSD+1* M.2 2280 SSD+1* 2.5 Inch HDD
Graphic: Intel UHD Graphics 620
Expansion1 * MSATA3.0, 6Gb/s; 1 * SATA3.0 , 6Gb/s; 1* ngff M.2 2280 (sata/nvme) SSD; 1 * WiFi module
NIC: RTL8168/8111/8112 PCI-E 10/100/1000 LAN
Sound card: ALC892 chip, providing 6-channel sound
MINI PCIE: 2* MINI PCIE interfaces, full height support MSATA solid state hard drive, Half height support MINI PCIE wireless network card
WIFI: 300M WIFI built-in module, dual external antennas enhanced signal 802.11.b/g/n
I/O: 1* DP + 1 * HDMI + 4* USB 3.0 + 1 * USB2.0 + 1* Card Reader + 1 * LAN + Audio + DC In
Power supply: DC IN 12V/19V power supply 5A
Size: 22.5* 18.5* 4.5cm
Net Weight: 2.5kgs
Temperature:
Operating Temperature: 0°C~70°C (32°F~140°F)
Storage Temperature: -20°C~80°C (-68°F~176°F)
Relative Humidity: 10%~90% (non-condensing)
Function1. Support diskless boot
2. Support Restore AC Power Loss
3. Support dual screen (DP+HDMI) for simultaneous display or synchronous different display
4. HDMI 1.4 4K: 4096x2304@30Hz
5. DP 1.2 4K: 4096x2304@60Hz, support DP to VAG transfer only (Not support DP to HDMI transfer)
System SupportWindows 10,Linux Ubuntu,Vxworks etc;
And hardware supports kodi, virtual system as proxmox/vmware/esxi server etc
System Default Option: Windows 10 pro in English
ATTENTION: Barebone, Single RAM, Single SSD or SSD+HDD without any system. Linux ubuntu or other OS, Do need to leave us message on the order, thank you.
