$912.99
Meet Your Seller
SJRC Fanless Mini PC 9th Gen i7-9750H, 2X i226V 2.5GbE Embedded PC, Barebone NO RAM/SSD/System, 3HD 4K Triple Display, 6 x DB9 RS232 COM, 1 x mSATA SSD Slot
- Embedded PC CPU: Core i7-9750H (6 Cores, 12 Threads, up to 4.5GHz, 12MB Cache, 45W TDP) with UHD Graphics 630. No OS by default. Fanless Mini PC Firewall designed for 24/7 automation, edge computing pc industrie and low-power multitasking
- DDR4 & SATA3.0 Storage: Dual DDR4 slots (up to 32GB).1 x SATA3.0 SIot for 2.5" HDD/SSD, 1 x M.2 2280 NVMe SSD Slot, 1 x mSATA SSD Slot, 1 x SIM Card Slot, 1 x Mini-PCIE support 3G/4G Module
- Dual Lan Mini Computer Fanless: Features 2 in-tel i225-V 2.5GbE Ethernet ports, provides higher bandwidth, flexibility, reliability and professional expansion capabilities, and is suitable for users of high-performance computing and network-intensive applications
- Multi function industrial port: Equipped with 6 RS-232 serial ports(2 of them support RS485/RS442), supports 3 HD outputs, 14 GPIO and PS2 keyboard, meet the needs of industrial control, multi-screen collaboration and high-speed network transmission
- Silent Fanless Cooling: Fanless design with aluminum
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
SJRC Core i7-9750H Fanless Mini Computer
Please note: This is a barebone system. A memory module, storage drive, and operating system are required for full functionality.

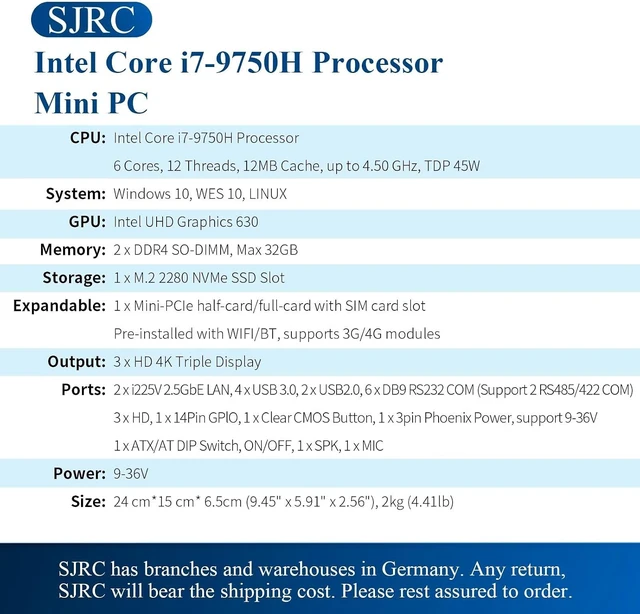

Core Performance
CPU: i7-9750H (6C /12T, up to 4.5GHz, 45W TDP) with UHD Graphics 630.
System: NO OS.
Memory: Dual DDR4 SODIMM slots (up to 32GB). Note: It will take 5-10 minutes for the device to detect the RAM for the first time. Please be patient.

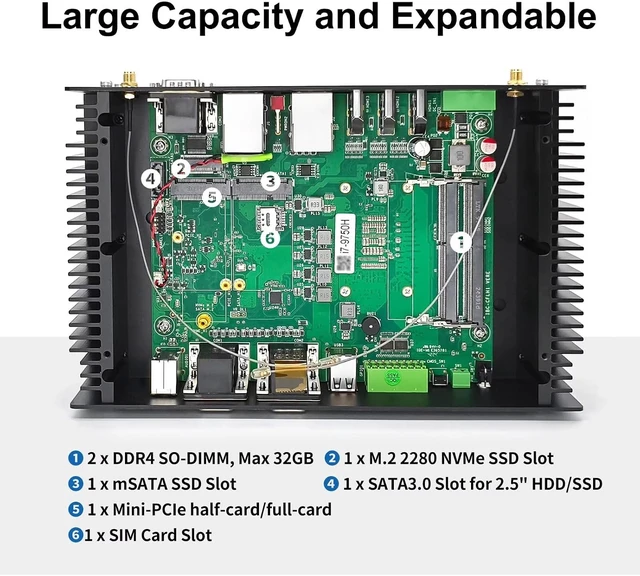

Storage:
1 x M.2 2280 NVMe SSD Slot, 1 x mSATA SSD Slot, 1 x SATA3.0 SIot for 2.5" HDD/SSD, 1 x SIM Card Slot.
Networking: 2x In-tel i225-V 2.5GbE LAN.
Display: 3 x HD 4K Triple Display.

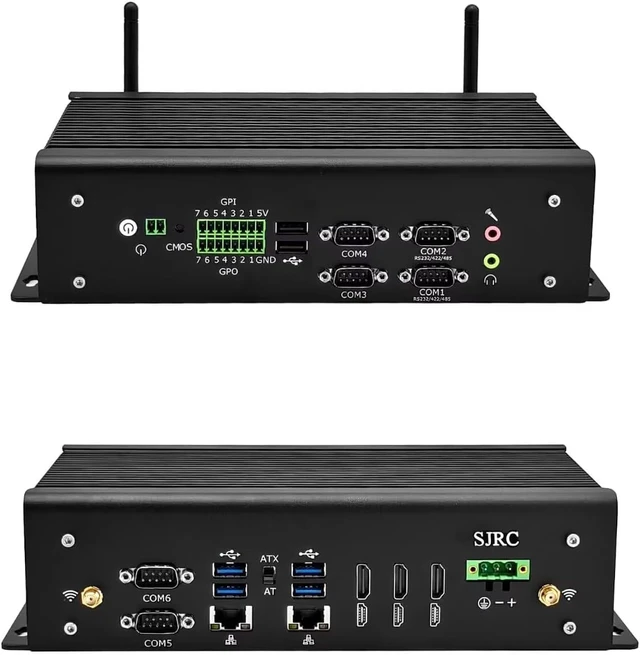

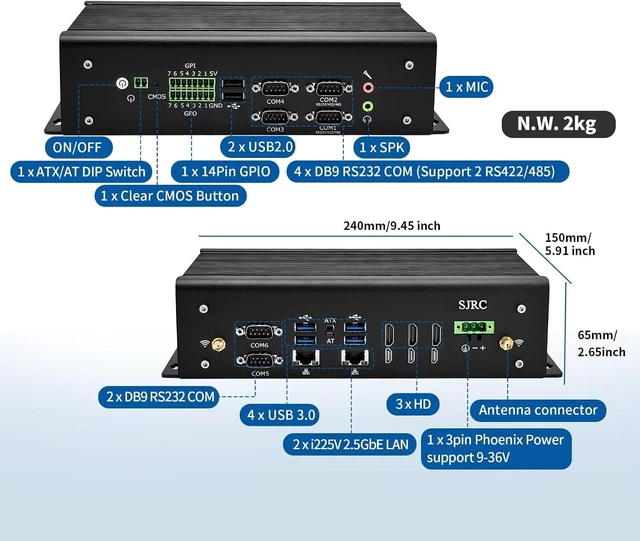

I/O Ports:
6 x DB9 RS232 COM (Support 2 RS485 COM), 4x USB 3.0, 2x USB 2.0, 1 x PS2, 1 x 14Pin GPIO, 1 x Clear CMOS Button, 1 x 3pin Phoenix Power, support 9-36V, 1 x ATX/AT DIP Switch, ON/OFF,1 x SPK, 1 x MIC.
Fanless Cooling: Low power consumption, lüfterloses and aluminum casing.
Storage temperature -30 to +70.
Operating temperature -20 to +60.
Storage humidity 10%~90% @30, no condensation.
Compact & Versatile Design
Size: 24 cm*15 cm*6.5 cm (9.45" x 5.91" x 2.56"), 2kg (4.41lb).
Mounting: Support Desktop placement and wall-mountable .
Power: DC 9-36V input .
Easy Setup & Compatibility
BIOS: Supports PXE boot, Wake-on-LAN, and Auto Power On.
Package Includes: 1x Mini PC, 1x power adapter.
Please note: This is a barebone system. A memory module, storage drive, and operating system are required for full functionality.
Core Performance
CPU: i7-9750H (6C /12T, up to 4.5GHz, 45W TDP) with UHD Graphics 630.
System: NO OS.
Memory: Dual DDR4 SODIMM slots (up to 32GB). Note: It will take 5-10 minutes for the device to detect the RAM for the first time. Please be patient.
Storage:
1 x M.2 2280 NVMe SSD Slot, 1 x mSATA SSD Slot, 1 x SATA3.0 SIot for 2.5" HDD/SSD, 1 x SIM Card Slot.
Networking: 2x In-tel i225-V 2.5GbE LAN.
Display: 3 x HD 4K Triple Display.
I/O Ports:
6 x DB9 RS232 COM (Support 2 RS485 COM), 4x USB 3.0, 2x USB 2.0, 1 x PS2, 1 x 14Pin GPIO, 1 x Clear CMOS Button, 1 x 3pin Phoenix Power, support 9-36V, 1 x ATX/AT DIP Switch, ON/OFF,1 x SPK, 1 x MIC.
Fanless Cooling: Low power consumption, lüfterloses and aluminum casing.
Storage temperature -30 to +70.
Operating temperature -20 to +60.
Storage humidity 10%~90% @30, no condensation.
Compact & Versatile Design
Size: 24 cm*15 cm*6.5 cm (9.45" x 5.91" x 2.56"), 2kg (4.41lb).
Mounting: Support Desktop placement and wall-mountable .
Power: DC 9-36V input .
Easy Setup & Compatibility
BIOS: Supports PXE boot, Wake-on-LAN, and Auto Power On.
Package Includes: 1x Mini PC, 1x power adapter.
