$1,318.99
Meet Your Seller
Embedded Industrial Computer, I5 1235U, IX23, Full-Featured Type-C, 6 x COM Phoenix, DC_in 12V Phoenix, Expandable CAN GPIO, 0 RAM, 0 Storage, Barebone No System
- Powered by core i5 1235u processor, applicable to a wide range of industrial applications, 7 x 24 hours of stable work, application for industrial automation, medical, logistics, transportation, warehousing, e-education etc, with mount bracket
- Please note, this is a barebone only. A system memory, a storage drive and an operating system are needed to complete this system
- Fanless passive cooling design, silent solution thats ultra energy-efficient
- ANDAQI IX23 with power switch, 4-pin phoenix terminal for remote switch, 2 x usb2.0, audio, 2 x hdmi, 2 x lan, full-featured type-c, 4 x usb3.0, 6 x com 6-pin phoenix terminal com1 com2 default rs232, 12-pin phoenix terminal com3-com6 default rs485, 10-pin phoenix terminal with 12-24v isolated gpio 4-in/4-out, dc_in 12v 2-pin phoenix terminal
- Size at 186 x 140 x 66mm, 1.54kgs, 12v7.5a power supply, with power cord, make sure to use a big brand memory and ssd/hdd with quality assurance, very powerful fanless embedded computer
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Please note: This is a barebone only. A system memory, a storage drive and an operating system are needed to complete this system
Model Number: ANDAQI IX23
Material: Aluminum
CPU: Core I5 1235U Processor 12M Cache, up to 4.40 GHz
Security: TPM2.0
Memory: 1 x SODIMM DDR5 4800 MT/s, Max.48GB
Storage: 1 x M.2 2280 M-Key PCIE X4 NVME SSD, 1 x 2.5 Inch SATA SSD/HDD
Network: 1 x I226-V 2.5GbE LAN, 1 x I226-LM 2.5GbE LAN
Expansion: M.2 E-Key 2230 slot for WiFi/BT, Full length Mini PCIE slot for WiFi/4G module, with Nano-SIM Slot
WiFi: M.2 Wi-Fi 6 802.11AX
Bluetooth: 5.2
Optional Expansion: CAN module, COM, GPIO etc

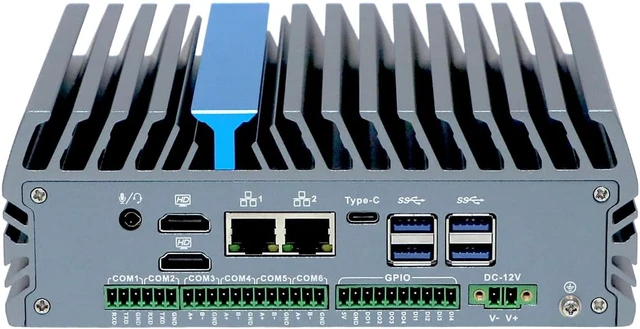

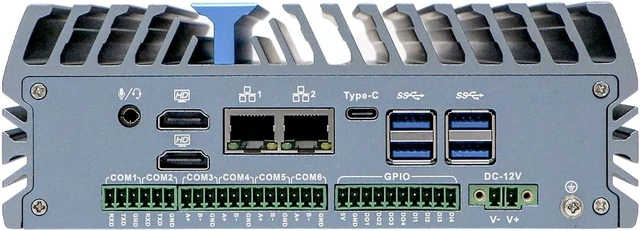

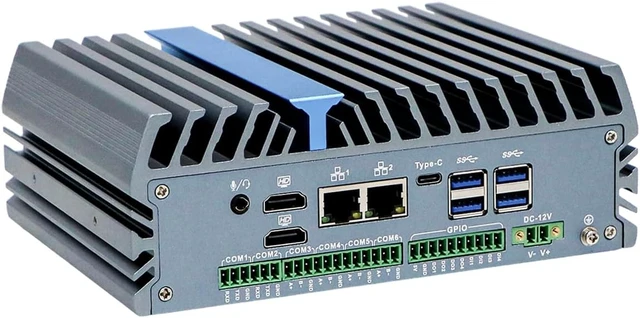

I/0 Port: Power Switch, 4-pin Phoenix Terminal for Remote Switch, 2 x USB2.0, Audio, 2 x HDMI, 2 x LAN, Full-featured Type-C, 4 x USB3.0,
6 x COM 6-pin Phoenix Terminal COM1 COM2 default RS232, 12-pin Phoenix Terminal COM3-COM6 default RS485,
10-pin Phoenix Terminal with 12-24V Isolated GPIO 4-in/4-out, DC_IN 12V 2-pin Phoenix Terminal
Power: DC100-240V AC/50-60hz, 12V7.5A
Operating Temperature: -20°C ~ +60°C, surface air flow
Working Humidity: 5%~95% non-condensing
Size: 186 x 140 x 66mm
Weight: 1.54kgs
TDP: 15-55W
Cooling system: Fanless
Packing List: ANDAQI IX23 embedded computer, power supply, power cord, WiFi antennas, mount bracket, warranty card
Function: Support Auto power on, Timing boot, Wake on LAN, PXE boot, Watchdog 0255 level
Installation: Supports Desktop, Din Rail, wall-mounted and other fixing methods, default as mount bracket method,
if need Din Rail, please refer to Din Rail type
System Support: Windows 11, Linux Ubuntu etc
Model Number: ANDAQI IX23
Material: Aluminum
CPU: Core I5 1235U Processor 12M Cache, up to 4.40 GHz
Security: TPM2.0
Memory: 1 x SODIMM DDR5 4800 MT/s, Max.48GB
Storage: 1 x M.2 2280 M-Key PCIE X4 NVME SSD, 1 x 2.5 Inch SATA SSD/HDD
Network: 1 x I226-V 2.5GbE LAN, 1 x I226-LM 2.5GbE LAN
Expansion: M.2 E-Key 2230 slot for WiFi/BT, Full length Mini PCIE slot for WiFi/4G module, with Nano-SIM Slot
WiFi: M.2 Wi-Fi 6 802.11AX
Bluetooth: 5.2
Optional Expansion: CAN module, COM, GPIO etc
I/0 Port: Power Switch, 4-pin Phoenix Terminal for Remote Switch, 2 x USB2.0, Audio, 2 x HDMI, 2 x LAN, Full-featured Type-C, 4 x USB3.0,
6 x COM 6-pin Phoenix Terminal COM1 COM2 default RS232, 12-pin Phoenix Terminal COM3-COM6 default RS485,
10-pin Phoenix Terminal with 12-24V Isolated GPIO 4-in/4-out, DC_IN 12V 2-pin Phoenix Terminal
Power: DC100-240V AC/50-60hz, 12V7.5A
Operating Temperature: -20°C ~ +60°C, surface air flow
Working Humidity: 5%~95% non-condensing
Size: 186 x 140 x 66mm
Weight: 1.54kgs
TDP: 15-55W
Cooling system: Fanless
Packing List: ANDAQI IX23 embedded computer, power supply, power cord, WiFi antennas, mount bracket, warranty card
Function: Support Auto power on, Timing boot, Wake on LAN, PXE boot, Watchdog 0255 level
Installation: Supports Desktop, Din Rail, wall-mounted and other fixing methods, default as mount bracket method,
if need Din Rail, please refer to Din Rail type
System Support: Windows 11, Linux Ubuntu etc
