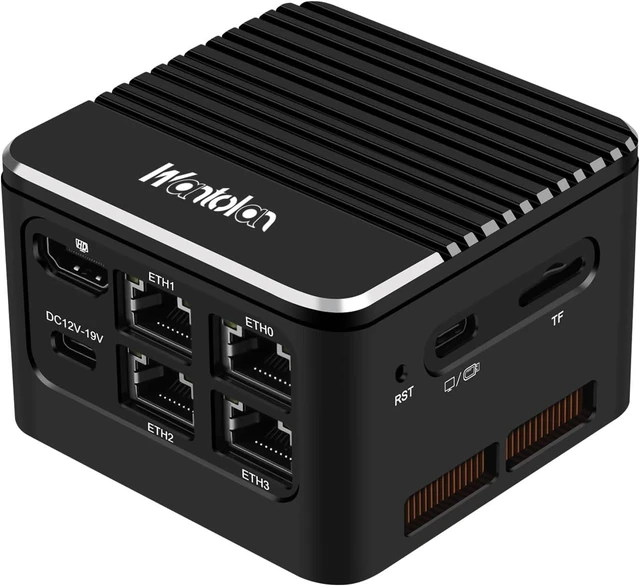

M1 Four 2.5G Firewall Mini PC, Pocket Mini Host,12Gen Alder Lake i3-N305,4*RJ45 Ports i226-V,On Board LPDDR5 RAM 16G,M.2 NVMe 2242 SSD 1TB,Dual Display,Black(i3-N305/RAM16GB+SSD1TB, Black)
- CPU:intel 12th gen. Alder Lake-N:i3-N305.TDP of i3-N305 is 15W. i3-N305 has 8 cores and 8 threads, with a clockspeed of 1.8GHz and a turbo speed up to 3.8GHz. Meanwhile, the GPU model of i3-N305 is intel UHD Graphics32EU. X86 architecture, compatible with systems or software such as Win10,win11,Windows Server, Debian, Ubuntu,ESXi, PVE, OpenWRT, MikroTik, pfSense, OPNsense, Unraid, OMV, etc.
- Network Interface: Four 2.5G electrical ports. The electrical ports are RJ45, using intel i226-V chips. The transmission rate of these network ports can reach up to 2.5Gbps.The combination of four network ports can be applied to intelligent routing or firewall.
- RAM/SSD: RAM uses a single LPDDR5 on board memory, supports 4800MHz. The SSD adopts a single M.2 PCIe 3.0 * 2 M-Key slot, supporting NVMe 2242 PCIe 3.0 * 4 SSD and compatible with PCIe 4.0 * 4 SSD. After removing the top cover, it is easy to install the SSD. SSD heat can be conducted to the metal top cover for dissipation.
- Radiation Des
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
This is a four netword ports mini PC with a smaller size. Can be used in weak current boxes with limited space. Of course, it can also meet your requirements for simple desktop storage. The configuration of four 2.5G network ports allows you to easily handle routing and firewall.
Alder Lake-N:N100/i3-N305.TDP of N100 is 6W and i3-N305 for 15W. N100 has 4 cores and 4 threads, with a clockspeed of 0.8GHz and a turbo speed up to 3.4GHz; i3-N305 has 8 cores and 8 threads, with a clockspeed of 1.8GHz and a turbo speed up to 3.8GHz. Meanwhile, the GPU models of these two CPUs are both intel UHD Graphics. N100 is 24EU.i3-N305 is 32EU.

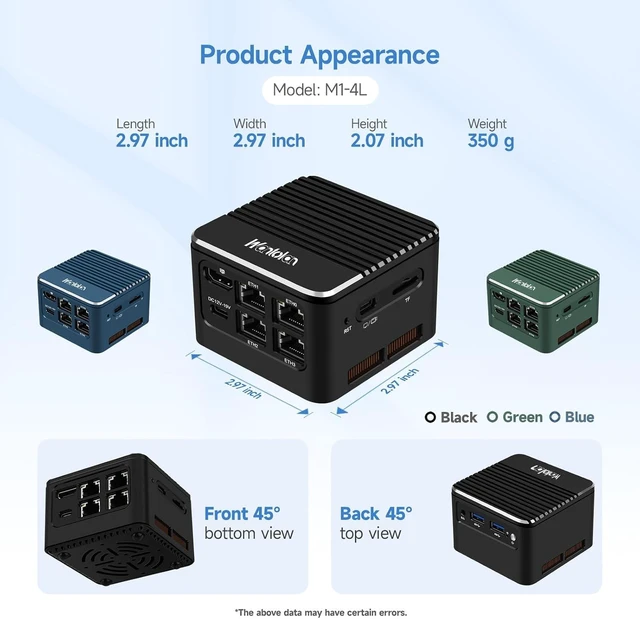

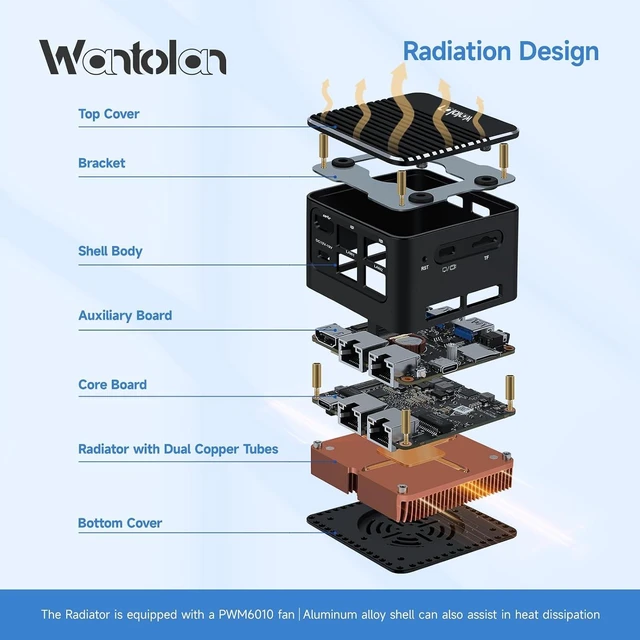

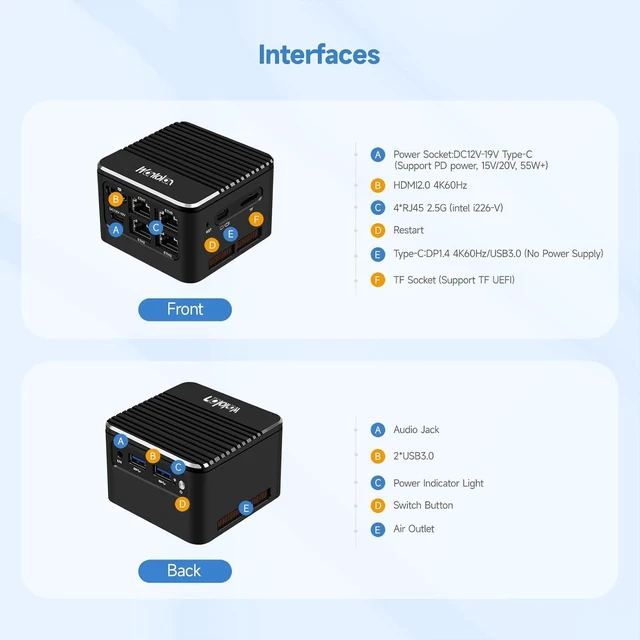

CPU intel 12Gen. Alder Lake N100/i3-N305 RAM On board LPDDR5 8GB/16GB 4800MHz SSD M.2 NVMe PCIe3.0*2 2242 Graphics Intel UHD Graphics N100:24EU/i3-N305:32EU Network Interfaces 4*RJ45 2.5G/intel i226-V Wifi6 None USB 2*USB3.0(Type-A),1*USB3.0(Type-C) Display Dual Screen Display(HDMI2.0+Type-C) Audio Realtek AL897 2.1 Power DC 12-19V Type-C(Support PD 55W+ 15V/20V) Size and Weight 2.97 inch*2.97 inch*2.07 inch;350g System Windows 10,Windows 11,Linux,etc Radiation Design The Radiator is equipped with a PWM6010 fan; Aluminum alloy shell can also assist in heat dissipation OS Default pfSense(Support Windows and Linux) Wantolan M1 Four 2.5G Firewall Mini PC,Pocket Mini Host,12Gen Alder Lake N100/i3-N305,4*RJ45 Ports i226-V, LPDDR5 RAM,M.2 NVMe 2242 SSD Parameter Table
Alder Lake-N:N100/i3-N305.TDP of N100 is 6W and i3-N305 for 15W. N100 has 4 cores and 4 threads, with a clockspeed of 0.8GHz and a turbo speed up to 3.4GHz; i3-N305 has 8 cores and 8 threads, with a clockspeed of 1.8GHz and a turbo speed up to 3.8GHz. Meanwhile, the GPU models of these two CPUs are both intel UHD Graphics. N100 is 24EU.i3-N305 is 32EU.
CPU intel 12Gen. Alder Lake N100/i3-N305 RAM On board LPDDR5 8GB/16GB 4800MHz SSD M.2 NVMe PCIe3.0*2 2242 Graphics Intel UHD Graphics N100:24EU/i3-N305:32EU Network Interfaces 4*RJ45 2.5G/intel i226-V Wifi6 None USB 2*USB3.0(Type-A),1*USB3.0(Type-C) Display Dual Screen Display(HDMI2.0+Type-C) Audio Realtek AL897 2.1 Power DC 12-19V Type-C(Support PD 55W+ 15V/20V) Size and Weight 2.97 inch*2.97 inch*2.07 inch;350g System Windows 10,Windows 11,Linux,etc Radiation Design The Radiator is equipped with a PWM6010 fan; Aluminum alloy shell can also assist in heat dissipation OS Default pfSense(Support Windows and Linux) Wantolan M1 Four 2.5G Firewall Mini PC,Pocket Mini Host,12Gen Alder Lake N100/i3-N305,4*RJ45 Ports i226-V, LPDDR5 RAM,M.2 NVMe 2242 SSD Parameter Table
