WEIDIAN Fanless PC, Industrial Mini PC, Core i7-10510U (up to 4.90 GHz), 2HD+DP Triple Display, 2RS232/RS422/RS485 COM, 2RJ45 LAN, 6USB, GPIO, WiFi, BT, Win11, Linux, Ubuntu(16GB RAM 128GB SSD)

Energy Saving, Innovation, Technology, Quality, Performance.

Since its establishment in 2014, WEIDIAN has been committed to innovation and producing outstanding products.
WEIDIAN is a company that integrates research and development, production and sales, and sells its products to more than 200 countries and regions in North America, Europe and Southeast Asia.
WEIDIAN supports OEM and ODM.
Multiple Choices of Processors

10th Gen Core i7-10510U/Core i5-10210U
8th Gen Core i5-8260U/Core i3-8140U
It can satisfy your diverse scenarios' use such as home entertainment, ADs, office, education, industry etc.
High Frequency DDR, Faster Response:

Fanless pc built-in Dual-Channel DDR4 memory slot, it supports expansion to 64GB.
Equipped with high-speed DDR4 memory, realizing multi-window, multi-tasking, no lag, and improving your work efficiency.
Fanless design

0 bd noise during working, 7 x 24 hours stable performance.
Compact size:

Mini computer with ultra slim stylish design has size of 205 x 125 x 53 mm(8 x 4.9 x 2 inch) and light weight of 1.2 KG(2.6lb). No matter where you place it, it will not take up your space.
Three display outputs:

This mini computer has 2 x HD ports, 1 x DP port, which can achieve 3 screens at the same time.
Support multiple ways to expand:

Fanless pc can be expanded through M.2 SATA/NVMe SSD slot, SATA3.0 slot, and USB hard disk.
This quiet mini pc is great for your business and office, or for HTPC use. Enjoy your computing while traveling, in classrooms, conference rooms, industries IOT applications, and more.
What is the resolution supported by the three ports?

This fanless mini pc supports three display outputs, HD2.0(4K@60Hz), HD(4K@30Hz), DP1.2(4K@60Hz). Meet your needs.
Why is there no sound after the monitor HD2.0 port is connected?

The HDI2.0 port of this mini pc win 11 can only support video output, not audio output. If you need to use audio, you can connect to the DP or HD1.4 port.
Why is it not showing when connected to the HD2.0 port?

Our HD2.0 port does not support hot swapping, so you must insert the device before powering it on.

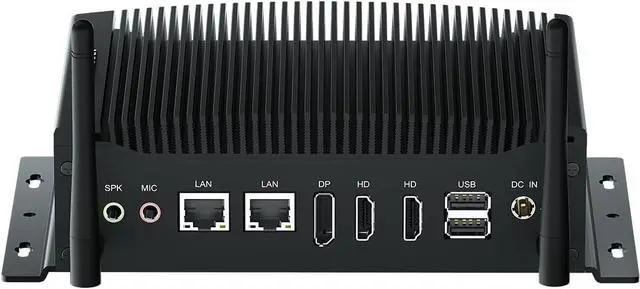

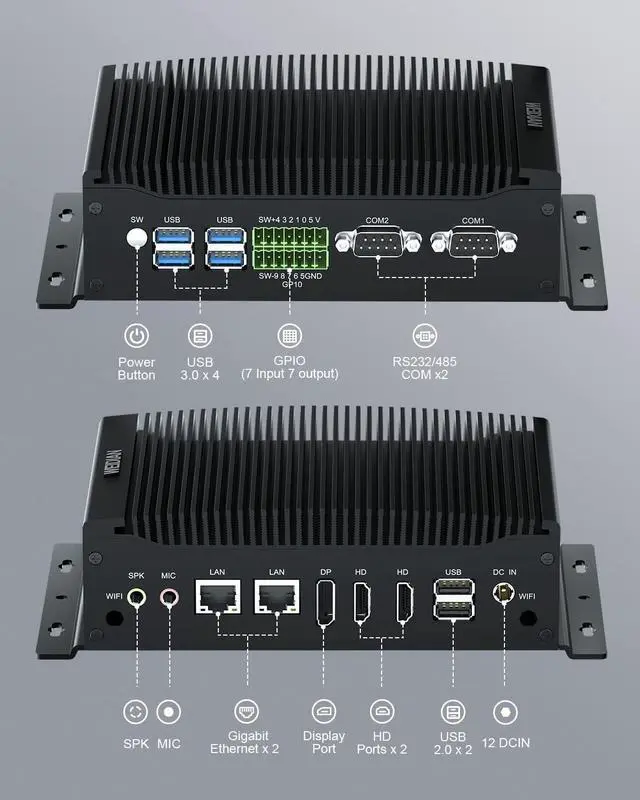

1 x 12V 5A DC IN
4 x USB3.0 Port
2 x USB2.0 Port
2 x HD Port
1 x DP Port
1 x 14pin GPIO Phoenix Terminal(7 x Input 7 x Output GPIO)
2 x RJ45 Gigabit Ethernet Port
2 x DB9 COM Port

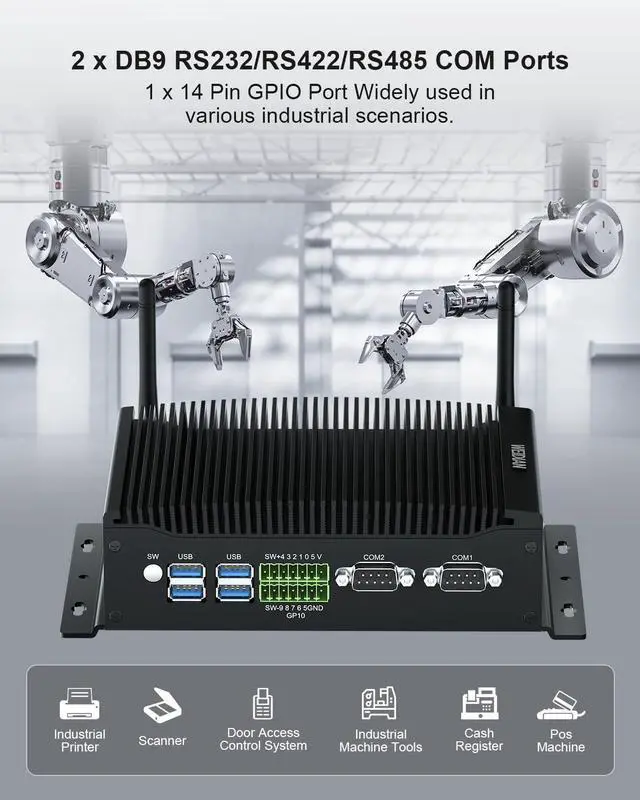

DB9 COM port
Fanless pc with 2xDB9 COM ports, support RS232/RS422/RS485 protocol. (default RS323 COM ).
The COM interface of industrial computer is mainly used in PLC programmer, POS machine cash register, medical equipment, modem, industrial printer, access control system, sensor, code scanning gun, acquisition card, industrial machine tool equipment, serial mouse, electronic scale, etc.

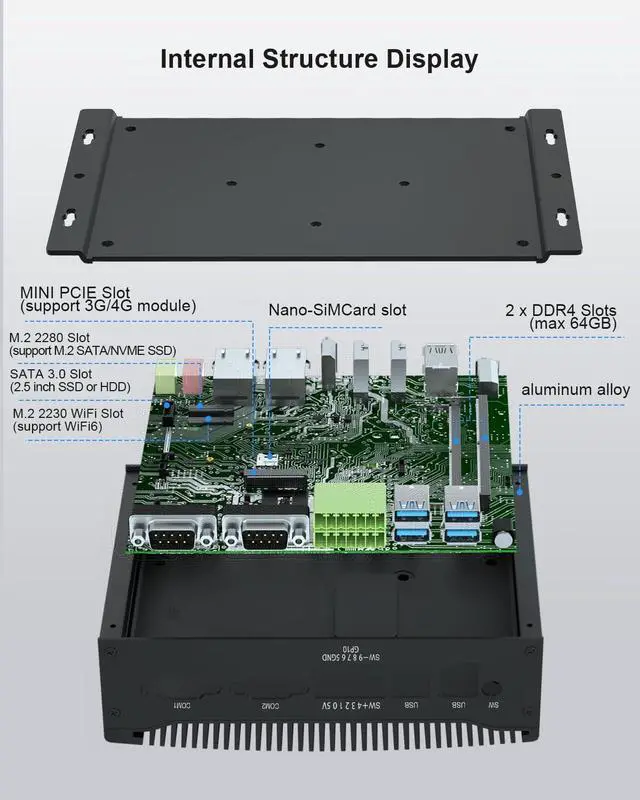

RAM expansion

The memory is equipped with dual channel (SODIMM slot x 2), and it can be updated to a total of 64GB (32GB each). Increase the data transmission speed by adding memory. Transmission speed is faster than single channel.
SSD expansion

1 x M.2 SATA/NVME slot can be replaced with SSD of up to 2TB.
2.5 inch SATA HDD/SSD Expansion

Equipped with a 1x 2.5 inch SATA HDD slot, you can add a large capacity hard drive at low cost and enjoy the fun of DIY. You can save your favorite movies / commemorative photos / important files without stress without worrying about running out of space.
Support 3G/4G

This i
