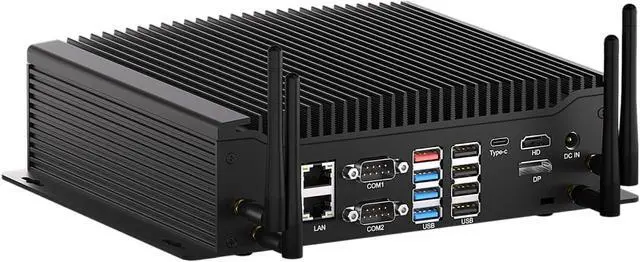

WEIDIAN PC Industrial, Fanless Mini PC Win 11 Core i7-10510U 64GB RAM 1TB SSD, Linux Mini Desktop Computers 6 x COM RS232/422/485, GPIO, 4K 3xDisplay(HD+DP+Type-C), 2Lan, 8USB, WiFi&BT Auto Power On

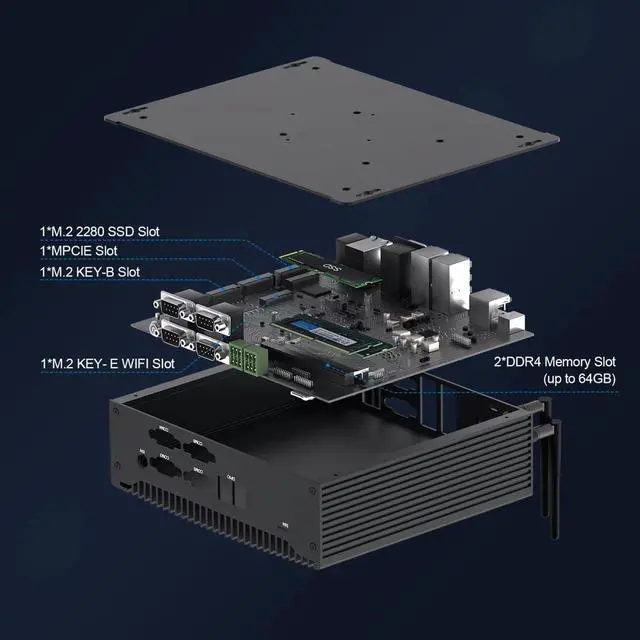

- Powerful Performance & Versatile StorageWEIDIAN EH4-T Win 11 Pro Mini Industrial PC with Core i7-10510U processor offers robust performance for various applications. Equipped with two DDR4 SO-DIMM memory slots (max 64GB) and multiple storage options including M.2 2280 NVME PCIE3.0x4/SATA SSD (max 2TB) and 2.5-inch SATA HDD/SSD (max 6TB), it ensures ample storage capacity and seamless multitasking.
- Efficient Triple Display Outputs Experience increased productivity with WEIDIAN's Fanless Mini PC supporting 4K HD triple display output ( HD-MI, DP and Type-C ). This setup facilitates effective multitasking and increases work efficiency and is suitable for both professional and entertainment purposes as well as industrial applications such as industrial CNC, embedded controllers, printers, scanners, logic analyzers, hard drives, POS devices, etc.

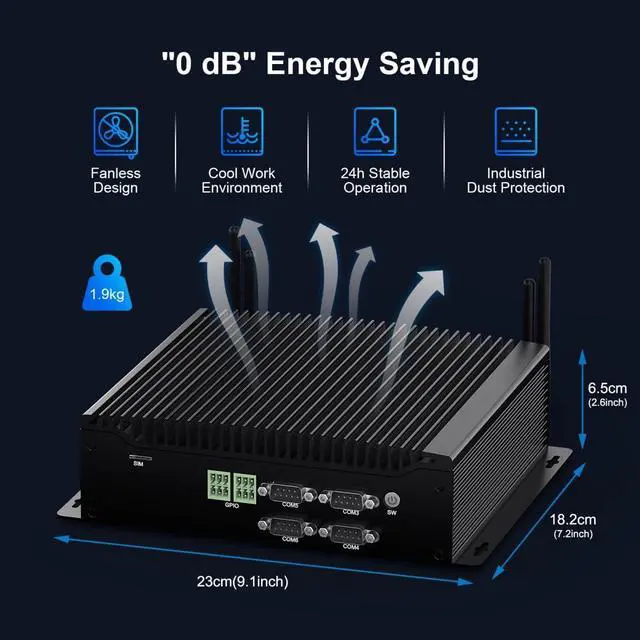

- Compact Design with Extensive Connectivity Despite the EH4-T Mini Computer's compact size of 9.05 * 7.16 * 2.55 inches (4.19 lb), the
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
CPU & GPUi7-10510U (4 cores, 8 threads, base
frequency: 1.8GH z,
max frequency: 4.9GH z,

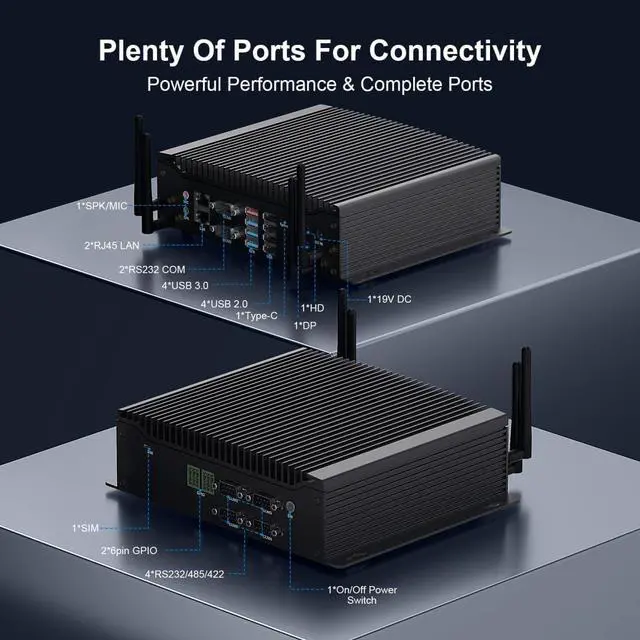

CPU Mark: 6409) & UHD Graphics (Integrated Graphics ) Memory (RAM) 2 x DDR4 RAM 260pin SODIMM (Max 64GB) StorageSupport 1 x M. 2 2280 NVME PCIE 3.0 x4/SATA SSD (Max 2TB) and 1 x SATA 3.0 slot for 2.5 '' HDD/SSD (Max 6TB, thickness 9mm)WiFi & BTDual band antenna + BTOperating SystemSupport Win11 Pro (support Win10/Linux (Ubuntu/Debain/Rocky Linux/Vmware Esxi))LanguageDefault English language (you can set your favorite language) Antenna interfaceSupport WIFI module or 4G/5G module (not included by default) FunctionSupports TPM 2.0, Wake on Lan, Auto Power On (BIOS/motherboard JPWR1 jump cap implementation), Wake System From RTC Alarm, Watchdog, PXE (only supports UEFI boot mode). COM Ports6*DB 9pin COM (supports 6 RS232 or 2 RS232+4 RS422/RS485); (COM1/2 only supports RS232, COM3/4/5/6 supports RS232/RS422/RS485)Display Output1*Type-C 4K 60HZ + 1*HD 4K 30HZ (supports audio/video transmission) + 1*DP/EDP 4K 60HZ(supports video transmission only, doesn't support hot-plugging)Rich Ports2*RJ45 I210/211 (1000M) + 6*COM + 2*6pin GPIO + 4*USB 2.0 + 4*USB 3.0 + 4*WIFI antenna + HD + Type-C + EDP + MIC&SPK 3.5MM + Power SW + DC-IN + Nano SIM portMaterial & NoiseAluminum housing & Fanless SystemPower Adapter19V 4.74A (90W); (DC 5.5 * 2.5MM )PC Size/Weight 23.0 x 18.2 x 6.5 cm 1.9 kg = 9.1 x 7.2 x 2.6 inch 4.2 lbsOperating Environment-1055 Common motherboard interfaces1*9Pin Fp1 pin header; 1*4pin CPU_FAN pin header; 1*19pin TPM pin header; 1*3pin JPWR1 pin header; 1*2pin CMOS recovery pin header; Parameters of EH4-T WEIDIAN Fanless Industrial Mini PC Core i7-10510U WEIDIAN i7 Industrial Mini Desktop PC Supports Triple Screen Displays
frequency: 1.8GH z,
max frequency: 4.9GH z,
CPU Mark: 6409) & UHD Graphics (Integrated Graphics ) Memory (RAM) 2 x DDR4 RAM 260pin SODIMM (Max 64GB) StorageSupport 1 x M. 2 2280 NVME PCIE 3.0 x4/SATA SSD (Max 2TB) and 1 x SATA 3.0 slot for 2.5 '' HDD/SSD (Max 6TB, thickness 9mm)WiFi & BTDual band antenna + BTOperating SystemSupport Win11 Pro (support Win10/Linux (Ubuntu/Debain/Rocky Linux/Vmware Esxi))LanguageDefault English language (you can set your favorite language) Antenna interfaceSupport WIFI module or 4G/5G module (not included by default) FunctionSupports TPM 2.0, Wake on Lan, Auto Power On (BIOS/motherboard JPWR1 jump cap implementation), Wake System From RTC Alarm, Watchdog, PXE (only supports UEFI boot mode). COM Ports6*DB 9pin COM (supports 6 RS232 or 2 RS232+4 RS422/RS485); (COM1/2 only supports RS232, COM3/4/5/6 supports RS232/RS422/RS485)Display Output1*Type-C 4K 60HZ + 1*HD 4K 30HZ (supports audio/video transmission) + 1*DP/EDP 4K 60HZ(supports video transmission only, doesn't support hot-plugging)Rich Ports2*RJ45 I210/211 (1000M) + 6*COM + 2*6pin GPIO + 4*USB 2.0 + 4*USB 3.0 + 4*WIFI antenna + HD + Type-C + EDP + MIC&SPK 3.5MM + Power SW + DC-IN + Nano SIM portMaterial & NoiseAluminum housing & Fanless SystemPower Adapter19V 4.74A (90W); (DC 5.5 * 2.5MM )PC Size/Weight 23.0 x 18.2 x 6.5 cm 1.9 kg = 9.1 x 7.2 x 2.6 inch 4.2 lbsOperating Environment-1055 Common motherboard interfaces1*9Pin Fp1 pin header; 1*4pin CPU_FAN pin header; 1*19pin TPM pin header; 1*3pin JPWR1 pin header; 1*2pin CMOS recovery pin header; Parameters of EH4-T WEIDIAN Fanless Industrial Mini PC Core i7-10510U WEIDIAN i7 Industrial Mini Desktop PC Supports Triple Screen Displays
